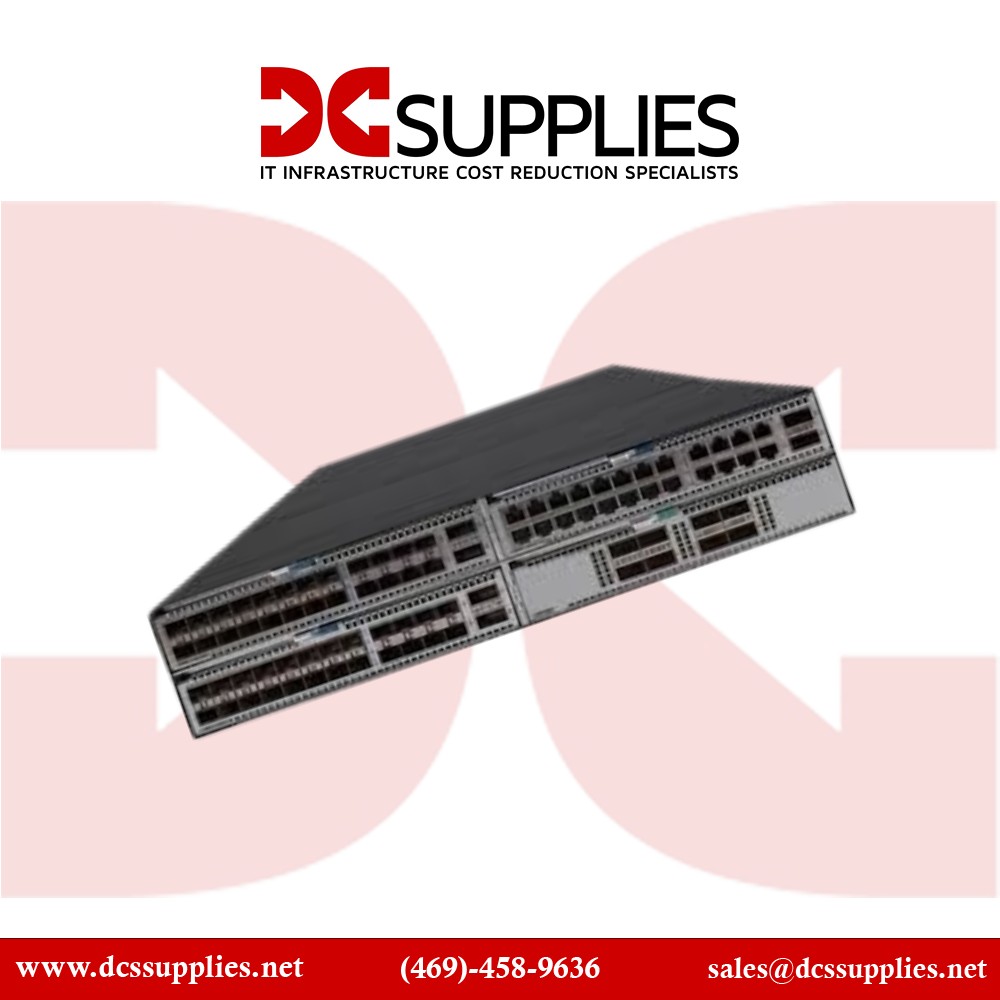

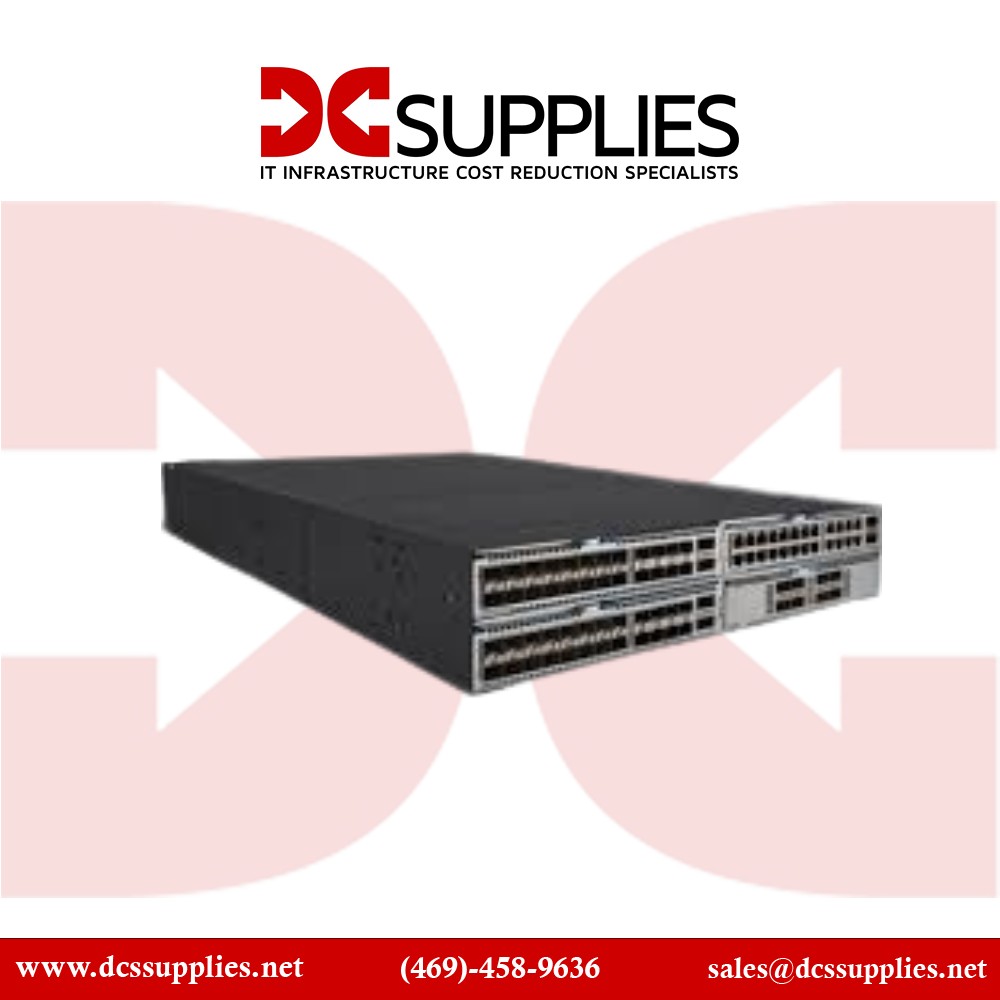

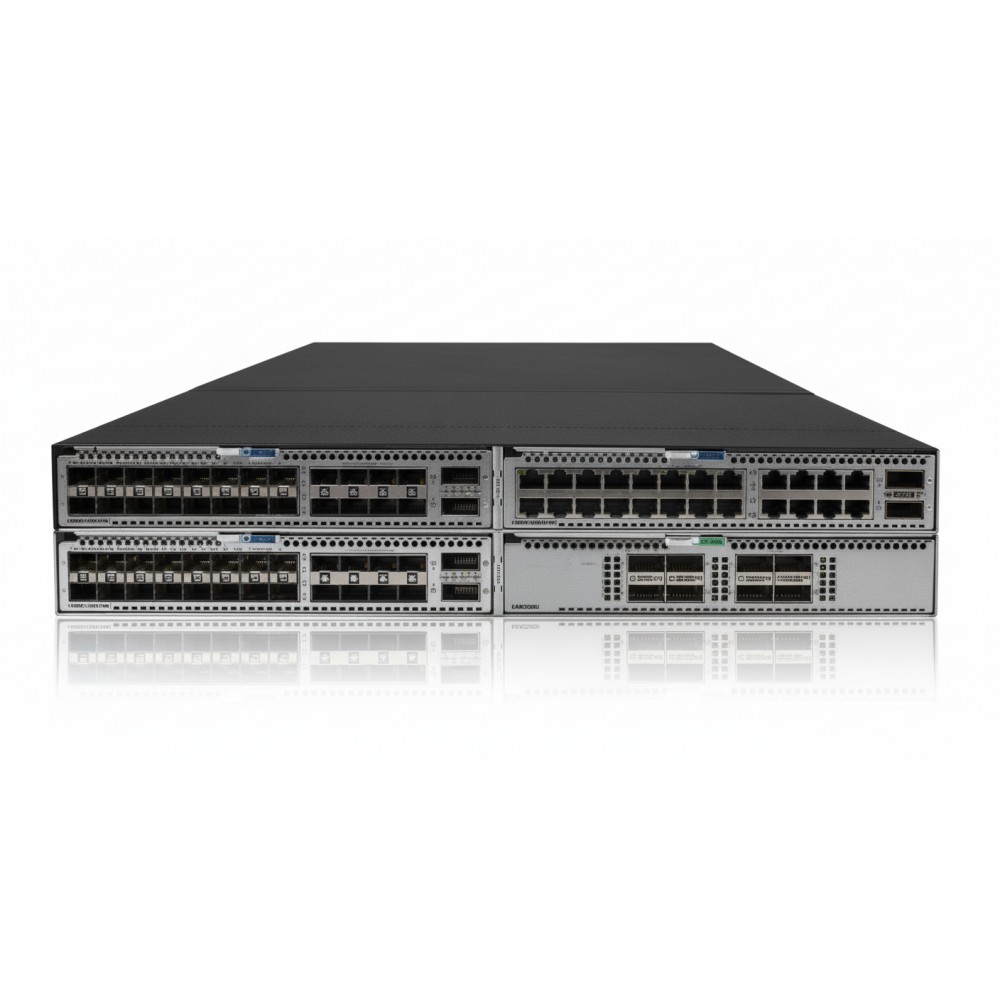

HPE JH380A 5930 Flex Fabric Managed Ethernet switch View larger
Previous Next

HPE JH380A FlexFabric 5930 4‑Slot Modular Layer 3 Ethernet Switch

JH380A

New

Modular 5930 chassis with four QSFP+...

×




Detailed Specifications

HPE JH380A

FlexFabric 5930 4‑Slot Modular Layer 3 Ethernet Switch (Supports up to 32× QSFP+ Slots)

The HPE JH380A is a fully modular variant of the FlexFabric 5930 series, featuring four expansion slots accommodating QSFP+ or port modules up to 40 GbE. Designed for data center aggregation or spine-and-leaf environments, it delivers ultra-low latency, high bandwidth routing, and advanced convergence features. Ideal for service providers, enterprise cores, or virtualized fabrics, the chassis based architecture supports unmatched scalability, flexible port configurations, and industry-leading resilience. Includes front-to-back airflow design and built-in redundancy capabilities for enterprise-grade deployments.

Features

This 2U chassis serves as a backbone for high-density FlexFabric networking with IRF stacking for up to nine switches, enabling simplified management, redundancy, and enhanced performance. The chassis supports a mix of 10 GbE SFP+, 40 GbE QSFP+, or converged Fibre Channel/Ethernet modules with full support for FCoE, VXLAN, TRILL, OpenFlow for SDN, and EVB/VEPA virtualization features. Powered by Comware v7, it enables graceful software upgrades with ISSU, granular QoS, and advanced troubleshooting tools such as flow-based port mirroring, sFlow, and CLI diagnostics.

Advanced Options

Built for fabric performance and continuous availability, the JH380A chassis supports redundant hot-swappable power supplies (up to four) and dual fan trays with reversible airflow to suit both hot-aisle and cold-aisle data center designs.

Product Key Features

  •  4 modular QSFP+ expansion slots (supports up to 32 QSFP+ ports)

  •  2.56 Tbps switching capacity, 1,429 Mpps forwarding rate

  •  Ultra-low latency: ~1 µs at 10 GbE packet sizes

  •  FlexFabric support: VXLAN, FCoE, IRF stacking, TRILL/SPB

  •  Layer 3 routing: OSPF, BGP, RIP, VRRP, ECMP, IPv6 support

  •  Reversible airflow, hot-swappable PSUs and fans for redundancy

  •  Advanced QoS and DCB: PFC, ETS, ECN, ETS, ACL, flow control

Reliability & Performance

 With a MAC table capacity of ~288K entries, IPv4/IPv6 routing table sizes (120K/60K), and 12.2 MB packet buffer, it handles bursty mixed workloads without packet loss. IRF stacking enables treats multiple chassis as a single logical switch, simplifying management and providing high availability. Built-in FCoE and RoCE support including Adaptive Networking and Fabric Watch tools ensure reliability across converged workloads.

Key Features :

  • 4 × QSFP+ expansion slots (supports modular port blades)

  • Supports up to 32 × 40 GbE (QSFP+) ports depending on modules

  • Switching capacity: 2.56 Tbps; forwarding rate: ~1,429 Mpps

  • Cut-through architecture with ~1 µs latency at 10 GbE speeds

  • IRF stacking (up to nine units), VXLAN, TRILL, FCoE support

  • Layer 3 protocols: OSPF, BGP, RIP, VRRP, IPv6 routing, ECMP

  • QoS: Strict Priority, WRR/WDRR/WFQ, CAR, ACLs, DCB protocols

  • Management via CLI, SNMPv1/2c/3, SSH, sFlow, IMC

  • Internal diagnostics and flow / port mirroring support

  • Redundant PSUs, hot-swap fan trays, reversible airflow capability

SpecificationDetails
Model Number JH380A
Product Type FlexFabric 5930 4‑Slot Modular Layer 3 Switch Chassis Ethernet Switch
Slots 4 × QSFP+ module expansion slots
Switching Capacity Up to 2.56 Tbps
Forwarding Performance ~1,429 Mpps (64‑byte frames)
Latency ~1 µs at 10 GbE
Buffer Memory ~12.2 MB
MAC Table Capacity ~288,000 entries
IPv4 Routing Table ~120,000 entries
IPv6 Routing Table ~60,000 entries
Layer 3 Protocols OSPF, BGP, RIP, VRRP, ECMP, IPv6
Fabric Services FCoE (FC‑BB‑5), TRILL, SPB, VXLAN VTEP
Stacking IRF clustering of up to 9 units
QoS Features SP, WRR/WFQ, CAR, CLS-based filtering, large flows
Manageability CLI, SSH, Telnet, SNMP v1/2c/3, sFlow, IMC
Diagnostics Flow mirroring, ingress/egress counters, port tracing
Ports/Modules (expandable) Supports SFP+/40 Gb QSFP+ blades
Power & Cooling Up to 4 hot‑swap PSUs; dual reversible fan trays
Operating Temp/Humidity 0 °C–45 °C; non-condensing humidity (10–90%)
Dimensions 2U Rack-mount: ~44 × 66 × 8.8 cm
Weight ~30 kg shipping weight
