Eaton U280-007-CQC-ST Tripp Lite 7 Port USB Charging Station with Quick Charge 3 0

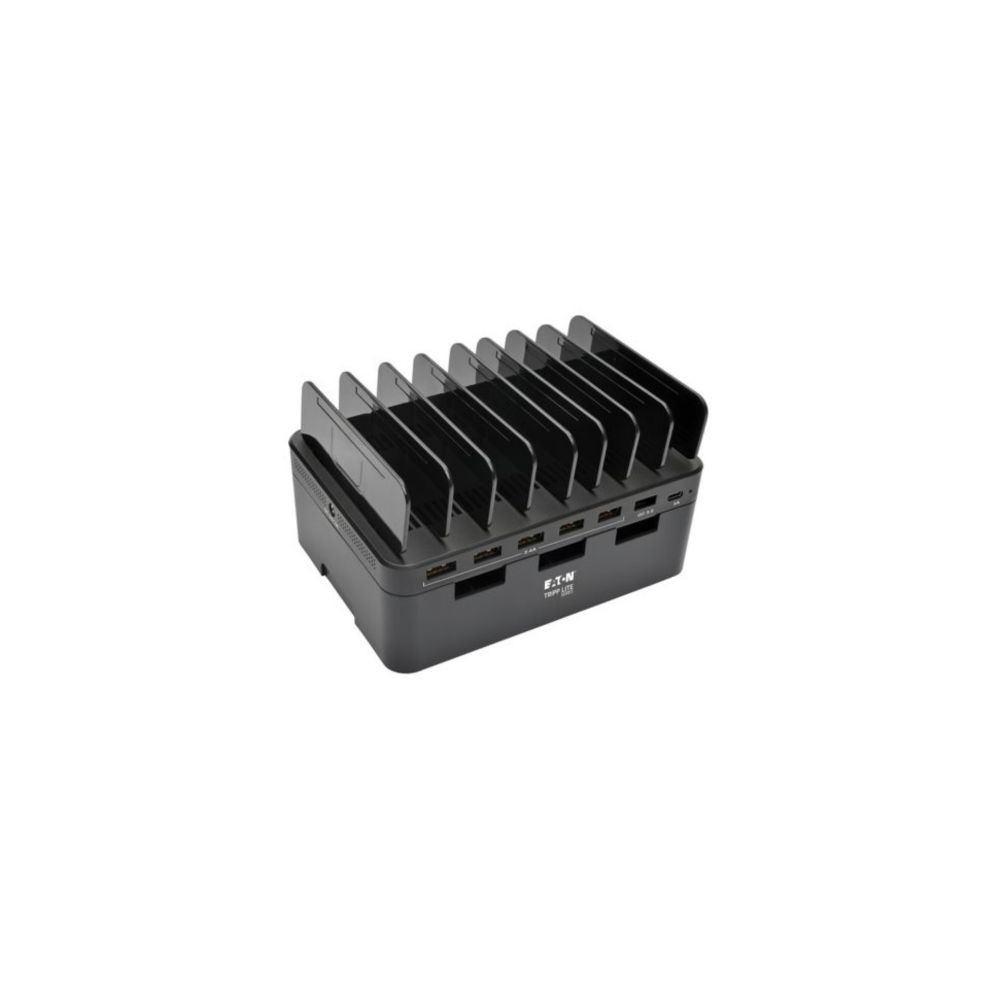

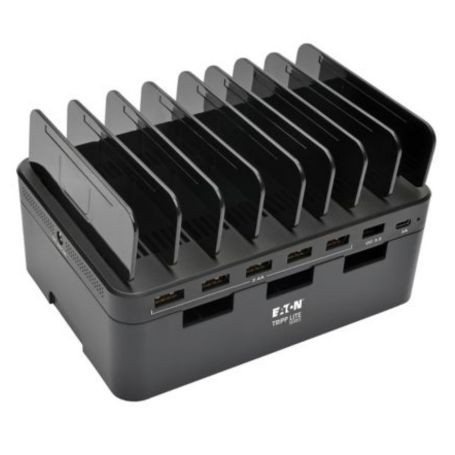

The Eaton Tripp Lite U280-007-CQC-ST is a 7-port USB charging station designed to charge and organize multiple mobile devices from a single AC-powered unit. It provides five standard USB-A charging ports, one USB-A Quick Charge 3.0 port, and one USB-C port, with up to 60W of total USB charging output.
Seven Charging Ports for Multiple Devices
The five standard USB-A ports provide up to 5V/2.4A each and support USB Battery Charging Specification 1.2. The dedicated USB-A Quick Charge 3.0 port supports compatible devices with selectable charging levels up to 3A, while the USB-C port provides up to 5V/3A. The station can charge up to seven compatible devices at the same time.
Built-In Device Organization
Nine adjustable storage brackets provide flexible spaces for organizing phones, tablets, e-readers, and other mobile devices while charging. A built-in storage compartment provides space for managing charging cables when they are not in use.
AC-Powered Charging Station
The U280-007-CQC-ST uses an external 100–240V AC power adapter rated at 15V/4A. A 5-foot C7-to-NEMA 1-15P power cord is included. The charging station operates independently of a computer and is intended for desktop use in homes, offices, classrooms, clinics, retail environments, and other locations where multiple USB devices need to be charged.
Protection and Charging Features
- 60W total USB charging output
- Five USB-A ports with up to 5V/2.4A charging
- One USB-A Quick Charge 3.0 port
- One USB-C port with up to 5V/3A output
- USB Battery Charging Specification 1.2 support
- Overcurrent, overload, overvoltage, and overcharge protection
- Blue power LED indicator
Key Features
- 7 total USB charging ports for simultaneous device charging
- 60W total USB charging output
- Quick Charge 3.0 support for compatible USB devices
- Nine adjustable storage brackets for organizing connected devices
- Built-in cable storage compartment
Applications
The charging station is suited for shared charging areas in offices, classrooms, clinics, retail counters, homes, and other environments where multiple smartphones, tablets, e-readers, POS devices, or portable gaming devices are used.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | U280-007-CQC-ST |
| Product Type | 7-Port USB Charging Station |
| Total Charging Ports | 7 |
| Total Charging Output | 60W |
| Standard USB-A Ports | 5 |
| Standard USB-A Output | 5V/2.4A |
| USB-A Quick Charge Port | Quick Charge 3.0 |
| USB-A QC Output | 3.6–6.5V/3A; 6.5–9V/2A; 9–12V/1.5A |
| USB-C Port | 5V/3A |
| USB Battery Charging | BC Specification 1.2 |
| AC Input | 100–240V, 50/60Hz, 1.5A |
| Power Adapter Output | 15V/4A |
| Power Cord | 5 ft C7-to-NEMA 1-15P |
| Protection | Overcurrent, overload, overvoltage, overcharge |
| Power Indicator | Blue LED |
| Material | Polycarbonate |
| Color | Black |
| Device Storage | 9 adjustable brackets |
| Product Dimensions | 6.614 W × 4.882 D × 0.866 H in |
| Product Weight | 1.4 lb |
| Operating Temperature | 41° to 95°F (5° to 35°C) |
| Operating Humidity | 20% to 80% RH, non-condensing |
| Compliance | FCC, RoHS, REACH |
| Warranty | 2-year limited warranty |
| UPC | 037332199577 |
Package Contents
- U280-007-CQC-ST 7-port USB charging station
- External 100–240V AC power supply, 15V/4A output
- 5-foot C7-to-NEMA 1-15P power cord
- 9 storage brackets
- Quick Start Guide
Frequently Asked Questions
How many devices can the U280-007-CQC-ST charge?
The charging station has seven USB charging ports and is designed to charge up to seven compatible devices at the same time.
Does the U280-007-CQC-ST have a USB-C port?
Yes. One of the seven charging ports is USB-C and provides up to 5V/3A.
Does this charging station support Quick Charge?
Yes. One USB-A port supports Qualcomm Quick Charge 3.0 for compatible devices.
Does it include storage for devices?
Yes. Nine adjustable storage brackets are included for organizing devices while they charge, along with a built-in compartment for cable storage.
Does the charging station require a computer?
No. The U280-007-CQC-ST is powered from an AC outlet through its external power adapter and operates independently of a computer.
