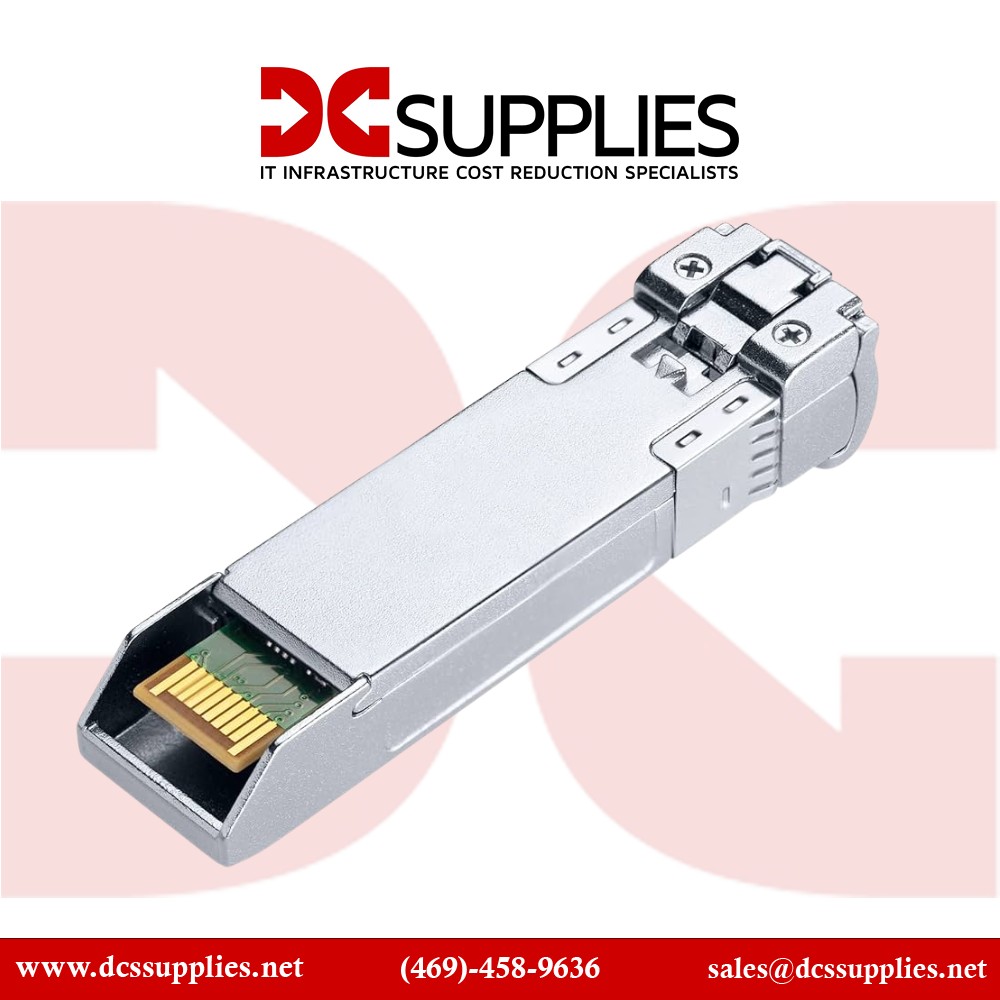

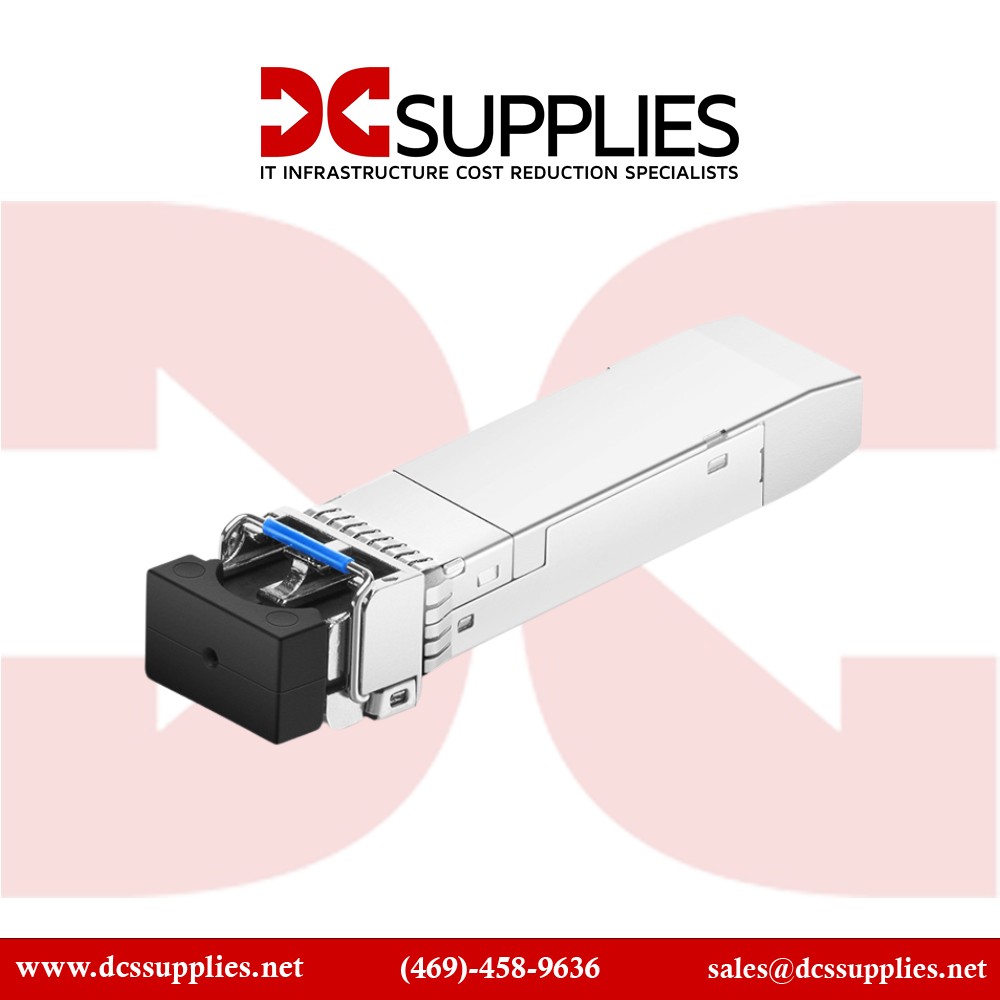

Enet AA1419032-E5-ENC
1000BASE-CWDM SFP Transceiver – 1GE/2G, 1610nm Wavelength, 40km Reach (OEM Compatible)
The Enet AA1419032-E5-ENC is a reliable 1000BASE-CWDM SFP transceiver designed to support both 1 Gigabit Ethernet (1GE) and 2G Fibre Channel applications. Operating on the 1610nm CWDM channel, this optical module extends network links up to 40 kilometers over single‑mode fiber (SMF). With hot‑pluggable convenience and industry‑standard compliance, it provides a cost‑effective and dependable networking solution.
As a trusted Enet optical product, the AA1419032-E5-ENC ensures full OEM compatibility and interoperability across enterprise, data center, and metropolitan area networks. Its compact form factor and robust feature set make it a versatile choice for long‑distance connectivity requirements.
Features :
Engineered for CWDM environments, this transceiver leverages the 1610nm wavelength to maximize fiber capacity and reduce spectral interference. With built‑in Digital Diagnostics Monitoring (DDM), it provides insights into operational health, including optical power levels, temperature, and voltage readings. Compact, energy‑efficient, and standards‑compliant, it ensures reliable long‑distance networking performance.
Advanced Options :
With 40km reach on SMF, the Enet AA1419032-E5-ENC is optimized for backbone applications, inter‑campus links, or service provider networks. Thanks to its hot‑swappable design, deployment and replacement are simple and non‑disruptive, helping organizations maintain high availability and scalability.
Product Key Features
- 1000BASE-CWDM SFP optical transceiver
- Supports 1GE Ethernet and 2G Fibre Channel
- Operates at 1610nm CWDM wavelength
- Transmission reach up to 40km on SMF
- Hot‑pluggable design for easy installation
- Duplex LC connector interface
- Digital Diagnostics Monitoring (DDM) enabled
- OEM compatible alternative
- Backed by Enet quality
Reliability & Performance :
The Enet AA1419032-E5-ENC delivers highly reliable long‑range connectivity for enterprise networks and service providers. With robust optical components and strict compliance to MSA standards, it ensures low bit error rates, consistent throughput, and energy‑efficient operation across critical applications.
Key Features :
- Data rates: 1GE Ethernet and 2G Fibre Channel
- 1610nm last‑channel CWDM wavelength
- 40km maximum SMF reach
- Compact hot‑pluggable SFP form factor
- Low power consumption design
- Digital Diagnostics Monitoring support
- OEM compatible
- Backed by Enet warranty
Specifications :
| Specification | Details |
|---|
| Part Number | AA1419032-E5-ENC |
| Brand | Enet |
| OEM PN | AA1419032-E5 |
| Product Type | 1000BASE-CWDM SFP Optical Transceiver |
| Data Rates | 1 Gbps Ethernet, 2 Gbps Fibre Channel |
| Standard | IEEE 802.3z / Fibre Channel |
| Wavelength | 1610nm (CWDM) |
| Connector Type | LC Duplex |
| Fiber Type | Single‑Mode Fiber (SMF) |
| Max Distance | 40 km (24.8 miles) |
| Form Factor | SFP Hot‑Pluggable |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN Photodiode |
| DDM Support | Yes, Digital Diagnostics Monitoring |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Consumption | <1.2W typical |
| Compatibility | OEM platforms requiring AA1419032-E5 |
| DWDM/CWDM Use | CWDM Grid – 1610nm channel |
| Compliance | MSA compliant, RoHS, IEEE 802.3z |
| Warranty | Backed by Enet Limited Warranty |
