Overview

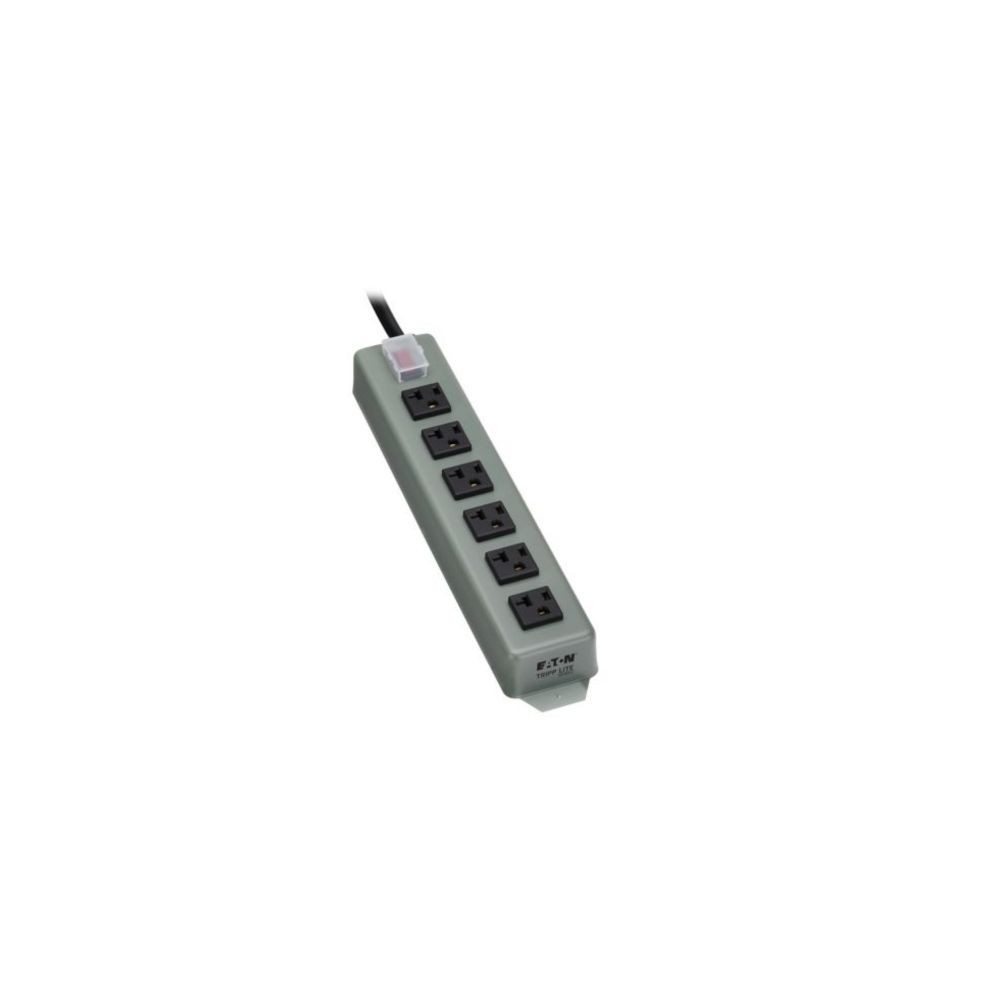

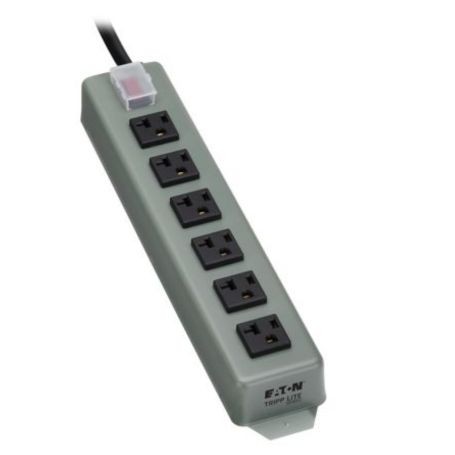

The Tripp Lite UL620-15 is a WABER industrial power strip designed for distributing AC power to multiple devices from a single connection. It provides six NEMA 5-15R/20R receptacles, a 15-foot power cord, a 20A resettable circuit breaker, and an illuminated master switch in an all-metal housing.
Power Distribution
The six outlets are arranged in a single row with 1.625-inch center-to-center spacing. The receptacles accommodate common NEMA 5-15P and 5-20P equipment plugs, while the strip connects to a 120V AC supply through its NEMA 5-20P input plug. The 20A circuit breaker provides overload protection for the connected load.
Mounting and Construction
The UL620-15 supports workbench, wall-mount, and floor-mount applications. Integrated keyhole mounting tabs and included mounting flanges provide options for securing the strip to a suitable surface. Its metal housing is designed for industrial and commercial power-distribution environments.
Switch and Breaker Protection
A lighted master switch controls power to all six outlets. A transparent switch guard helps reduce accidental shutoff, while the resettable 20A circuit breaker interrupts power when an overload condition occurs.
Power Pass-Through
The UL620-15 uses unfiltered electrical pass-through rather than surge suppression or EMI/RFI filtering. This makes it suitable for distributing alternate-waveform UPS or generator power where filtered power conditioning is not required.
Key Features
- Six NEMA 5-15R/20R output receptacles
- 20A resettable circuit breaker for overload protection
- 15-foot AC power cord with NEMA 5-20P plug
- All-metal housing with illuminated master switch and transparent guard
- Keyhole mounting tabs for workbench, wall, or floor installation
Applications
- Industrial and commercial workbenches
- Wall-mounted equipment areas
- Workstations requiring multiple AC outlets
- Retail and point-of-sale equipment areas
- UPS or generator power distribution where unfiltered pass-through is required
DC Supplies Product Note
The UL620-15 is a power-distribution strip rather than a surge protector or power conditioner. Its unfiltered pass-through design should be considered when the connected equipment requires the waveform supplied by a UPS or generator without additional filtering.
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number / MPN | UL620-15 |
| Product Type | Industrial Power Strip |
| Series | WABER / Industrial-Commercial |
| Total Outlets | 6 |
| Output Receptacles | NEMA 5-15R/20R |
| Input Plug | NEMA 5-20P |
| Input Voltage | 120V AC |
| Recommended Electrical Service | 20A, 120V |
| Maximum Current | 20A |
| Circuit Breaker | 20A resettable |
| Frequency Compatibility | 50/60 Hz |
| Power Cord Length | 15 ft (4.57 m) |
| Outlet Spacing | 1.625 in. center-to-center |
| Outlet Orientation | Single row of 6 |
| Housing Material | Metal |
| Switch | Lighted 2-position master switch |
| Switch Guard | Transparent snap-over guard |
| Mounting | Keyhole mounting tabs / flanges |
| Power Conditioning | Unfiltered electrical pass-through |
| Dimensions | 15 in. W × 2.25 in. H × 6 in. D |
| Product Weight | 2.4 lb |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
FAQs
How many outlets does the Tripp Lite UL620-15 have?
It has six NEMA 5-15R/20R output receptacles.
What is the maximum current rating?
The UL620-15 is rated for 20A and includes a resettable 20A circuit breaker for overload protection.
How long is the power cord?
The unit has a 15-foot (4.57-meter) AC power cord with a NEMA 5-20P plug.
Does the UL620-15 provide surge protection?
No. The UL620-15 uses unfiltered electrical pass-through and is designed for power distribution rather than surge suppression or EMI/RFI filtering.
Can the power strip be mounted?
Yes. It includes keyhole mounting tabs and mounting flanges for suitable workbench, wall, or floor installations.
What is included?
The package includes the UL620-15 power strip, warranty information, and an instruction manual.
