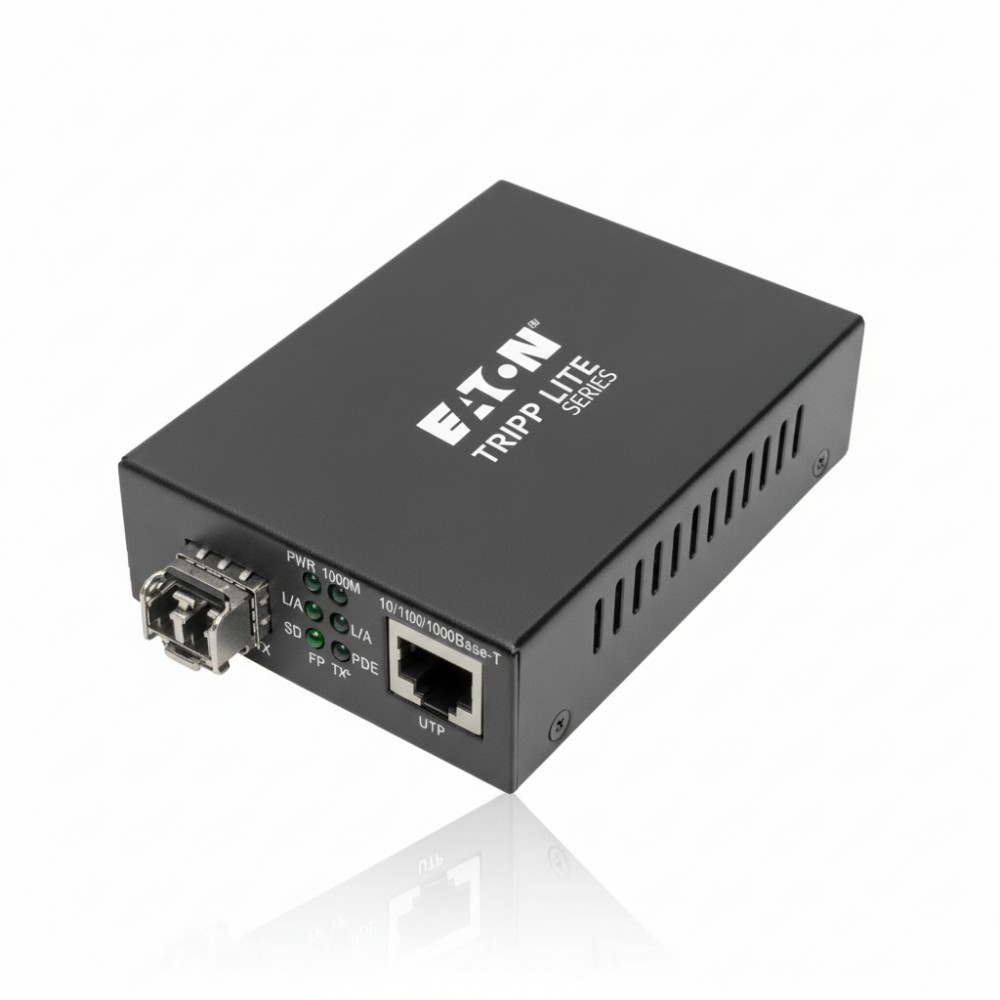

Eaton N785-P01-LC-MM1 - Gigabit Multimode Media Converter
Overview
The Eaton N785-P01-LC-MM1 is a media converter designed to bridge multimode fiber and copper Ethernet with Power over Ethernet (PoE+) support. It is deployed by network engineers to extend both data and power to remote Ethernet devices (e.g., cameras, VoIP phones, access controllers) over distances that exceed copper cable limits.
This unit converts 1000Base-X multimode fiber received on an LC duplex interface to 10/100/1000Base-T Gigabit Ethernet on an RJ45 interface, enabling connectivity between fiber-backbone links and copper-based edge segments. It supports PoE+ delivery to compatible devices directly, allowing remote powering without separate AC outlets.
It is typically installed in IDF closets, telecommunications rooms, ceiling-mounted junction boxes, pole mounts, or equipment enclosures where fiber backbone infrastructure runs to edge zones and copper reach is limited. The compact converter simplifies demarcation between fiber and copper domains while preserving network continuity.
The N785-P01-LC-MM1 integrates into existing network topologies with auto-negotiation for VLAN-agnostic Gigabit links and LED indicators for power, link status, and PoE operation. Its external power supply supports global AC mains (100-240 V) input, making it adaptable across regional power systems.
In a practical deployment, it is used to extend a fiber link from a distribution switch down a hallway to a fiber-terminated enclosure, then deliver both Gigabit data and PoE+ to a 802.3at/af-compliant security camera at distances up to ~550 m of multimode fiber.
This unit is not suitable where only singlemode fiber distances are required, nor where direct SFP plug-in interfaces are preferred; it is also not appropriate for non-PoE endpoints that require fiber-only connectivity without copper conversion.
Key Features
- Converts multimode LC fiber to 10/100/1000Base-T Ethernet
- Provides PoE+ power to endpoint devices over copper link
- Supports up to ~550 m multimode fiber reach
- Auto-negotiating RJ45 with auto-MDI/MDI-X detection
- External power supply supports 100-240 V AC global mains
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | N785-P01-LC-MM1 |
| Product Type | Gigabit Multimode Media Converter |
| Fiber Mode Supported | Multimode |
| Fiber Connector | LC Duplex |
| Copper Port | 1 × RJ45 |
| Ethernet Standards | 10/100/1000Base-T, 1000Base-X |
| PoE Support | PoE+ to RJ45 client |
| Maximum Fiber Distance | ~550 m |
| Wavelength | 850 nm |
| Auto-Negotiation | Yes |
| Auto-MDI/MDI-X | Yes |
| External Power Supply | Included |
| Input Voltage | 100-240 V AC |
| Frequency | 50/60 Hz |
| Power Supply Output | 48 V DC (for PoE) |
| LEDs | Status indicators for power, link, fiber, PoE |
| Dimensions (HxWxD) | ~1" × 3.7" × 2.8" |
| Weight | ~7.04 oz (~200 g) |
| Operating Temp | −20 °C to 60 °C |
| Compliance | RoHS |
| Warranty | 2-year limited |
