Detailed Specifications

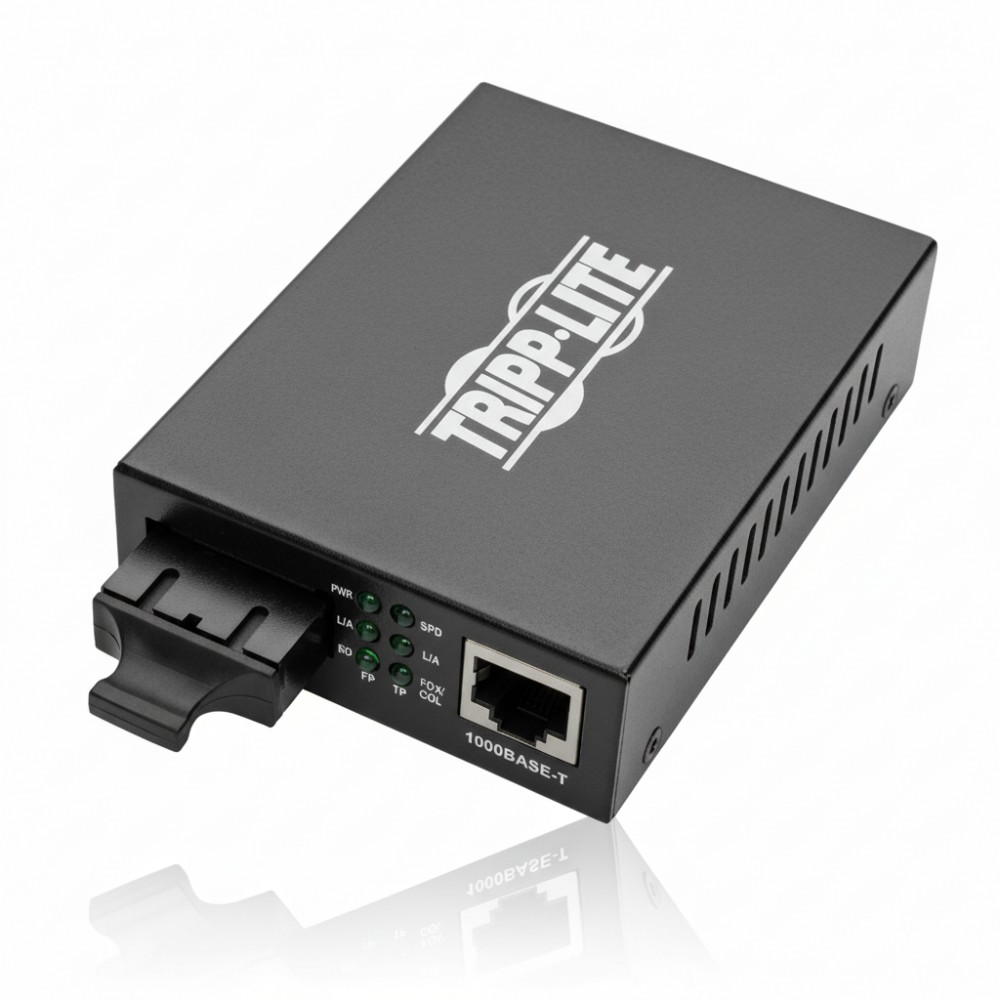

Eaton N785-INT-SC-MM - Gigabit SC Multimode Media Converter
Overview :
The Eaton N785-INT-SC-MM is a Gigabit multimode fiber-to-Ethernet media converter that connects copper Ethernet to multimode fiber links with SC interfaces. It is used by network and infrastructure engineers to extend 10/100/1000Base-T segments beyond the 100 m copper limit via multimode fiber, enabling remote equipment connectivity in closets, IDFs, campus links, and branch wiring scenarios. This converter addresses link-distance constraints without requiring managed switches at both ends.
The unit provides a single RJ45 10/100/1000Base-T copper port and a duplex SC multimode fiber interface operating at an 850 nm wavelength. It auto-negotiates speed and duplex on the copper side, supports auto-MDI/MDI-X, and has six LEDs for real-time link and activity status. An external international power supply with multiple plug adapters is included for global deployments.
Deployment typically places one converter adjacent to a network switch or router and a matching unit near remote devices, with multimode SC fiber run between them. It supports 50/125 µm fiber up to 550 m and 62.5/125 µm up to 400 m, extending connectivity where backbone fiber is present.
This converter integrates into structured cabling environments and is fully plug-and-play, requiring no software or configuration. It is not designed for industrial outdoor locations or harsh environments; for those use cases, choose hardened converters with environmental ratings.
Key Features
• Gigabit media conversion: 10/100/1000 copper to SC fiber
• Supports multimode fiber up to 550 m distance
• Auto-MDI/MDI-X with speed/duplex negotiation
• Six status LEDs for link and network activity
• International power supply with multi-plug adapters
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | N785-INT-SC-MM |
| Product Type | Fiber-to-Ethernet Media Converter |
| Copper Port | 1 × RJ45 10/100/1000Base-T |
| Fiber Port | 1 × SC duplex multimode |
| Fiber Type | Multimode (50/125, 62.5/125 µm) |
| Max Fiber Distance | 50/125 µm up to 550 m; 62.5/125 µm up to 400 m |
| Wavelength | 850 nm |
| Auto Features | Auto-MDI/MDI-X; speed/duplex negotiation |
| LED Indicators | PWR, TP L/A, FP L/A, Speed, Duplex, Activity |
| Power Supply | External (100-240 VAC to 5 V DC) with international plugs |
| Operating Temp | Commercial ambient |
| Housing | Metal, black finish |
| Compliance | RoHS, FCC, CE |
| Dimensions (approx) | ~4.9 × 2.8 × 1.0 in |
| Weight (approx) | ~0.44 lb |
