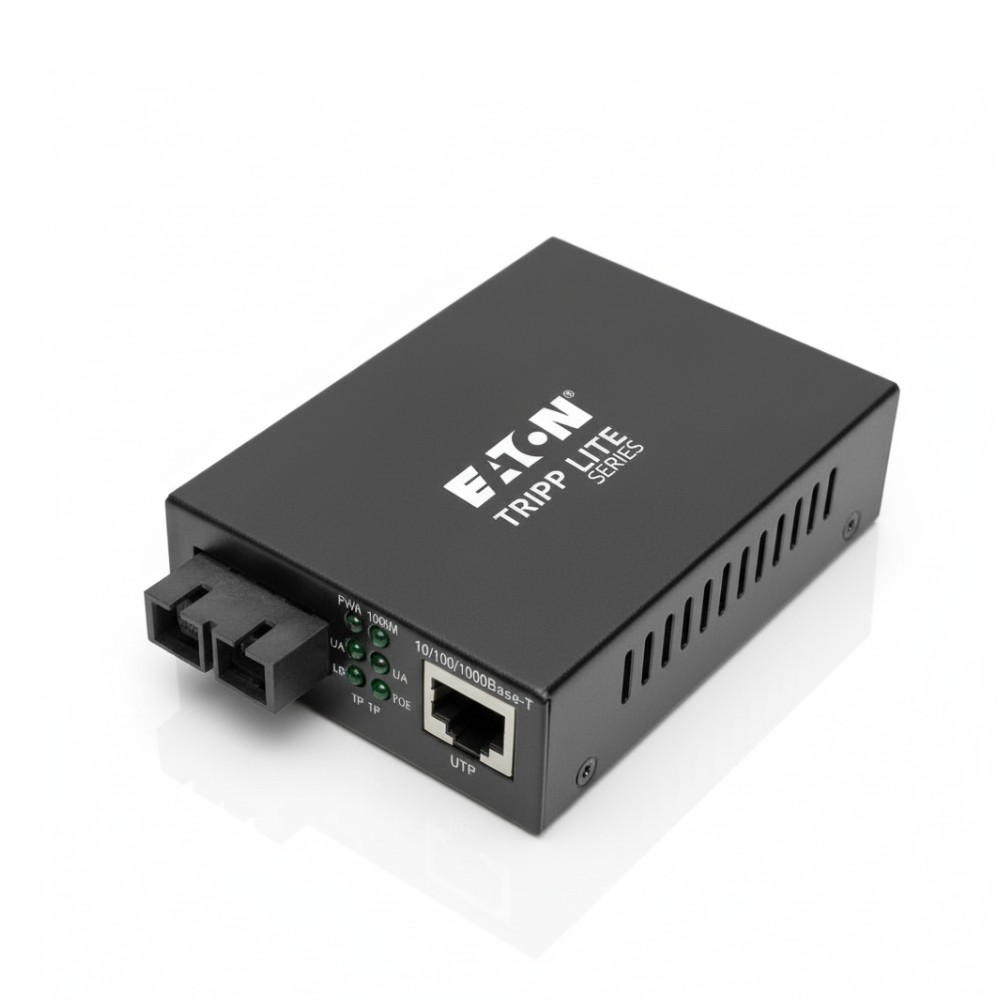

Eaton Tripp Lite N785-P01-SC-MM1 Media Converter PoE+ 550 m MM View larger

Eaton Tripp Lite N785-P01-SC-MM1 Media Converter PoE+ 550 m MM

N785-P01-SC-MM1

New

Gigabit PoE+ multimode fiber media converter, SC connector
×




Detailed Specifications

Eaton Tripp Lite N785-P01-SC-MM1 – Media Converter (PoE+)

Overview :

The Eaton Tripp Lite N785-P01-SC-MM1 is a media-converter designed for network engineers needing to deliver both data and power to remote PoE+ devices over multimode fiber. It converts one SC-connector multimode fiber link to a 10/100/1000 Mbps RJ45 Ethernet output with IEEE 802.3at PoE+ (48 VDC) support up to approx. 550 m (1,804 ft) of fiber. It is suited for campus, branch or edge applications where standard copper cabling distance (100 m) is insufficient and AC power may not be available at the device site. It integrates into standard network environments and can be paired with the matching N785-001-SC-MM converter unit at the opposite end of the fiber link.

Key Features :

  • Converts SC-multimode fiber to RJ45 Ethernet with PoE+

  • Supports 10/100/1000 Mbps auto-sensing RJ45 port

  • Provides 48 VDC PoE+ output (IEEE 802.3at) on the copper port

  • Extends data and power up to 550 m (1,804 ft) over multimode SC fiber

Specifications :

SpecificationValue
Brand Eaton Tripp Lite
Part Number N785-P01-SC-MM1
Product Type Fiber to RJ45 Media Converter (PoE+)
Fiber Mode Multimode
Fiber Connector SC Duplex (female)
Optical Wavelength 850 nm
Maximum Fiber Link Distance 550 m (1,804 ft)
Copper Port Speed 10 / 100 / 1000 Mbps
PoE Output 48 VDC IEEE 802.3at (PoE+)
Supported IEEE Standards 802.3, 802.3u, 802.3ab, 802.3z, 802.3at
RJ45 Features Auto-MDI/MDI-X; full/half-duplex support
LEDs (Indicators) PWR, PoE, 1000M, Fiber Link, RJ45 Link/Act
Operating Temperature Range -20 °C to 60 °C
Power Supply Input 100-240 V AC, 50/60 Hz, 1.5 A
Power Supply Output 48 VDC, 1.25 A
Housing Metal
Warranty 2-year limited
