Detailed Specifications

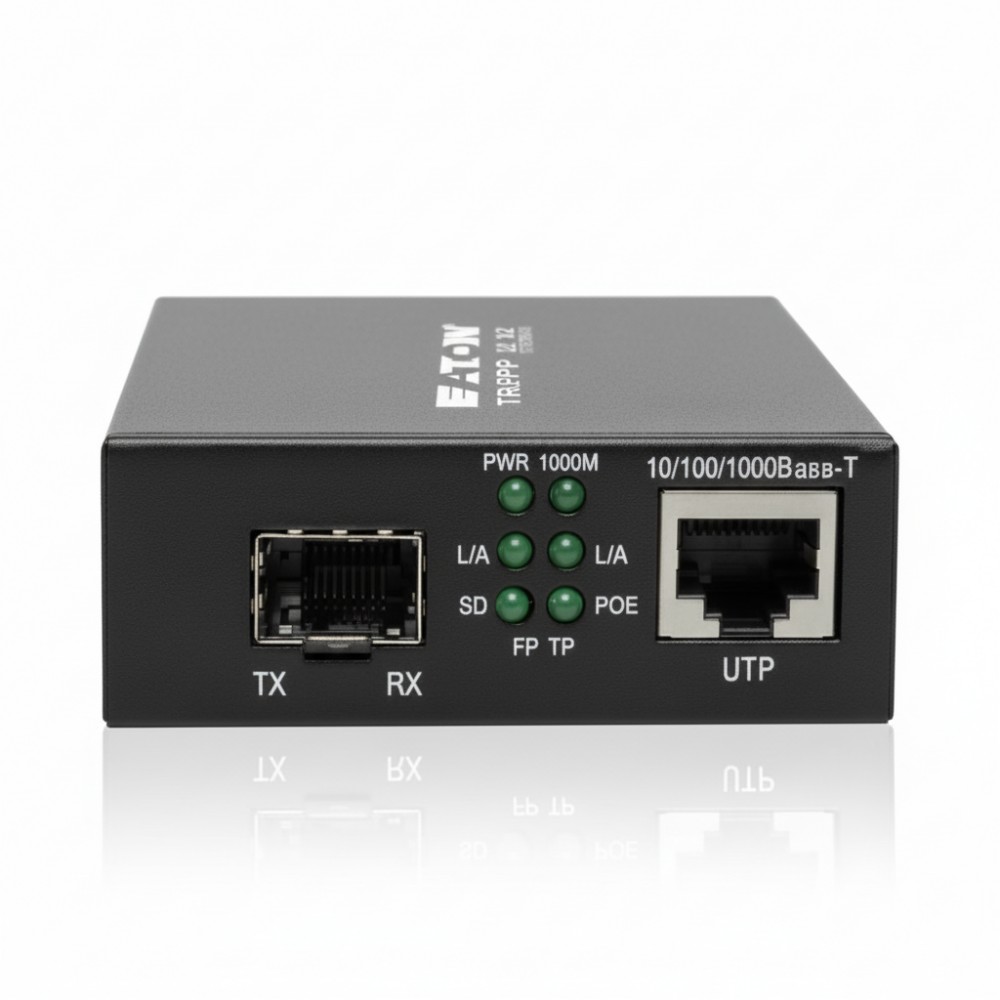

Eaton Tripp Lite N785-P01-SFP - Gigabit SFP Fiber to Ethernet Media Converter with PoE+
Overview :
The Eaton Tripp Lite N785-P01-SFP is a Gigabit SFP to Ethernet media converter designed to extend both data and power over fiber to PoE+ devices. It supports 10/100/1000 Mbps Ethernet speeds and accommodates singlemode or multimode SFP transceivers. The device enables network extension up to 550 meters using fiber and up to 100 meters over Cat5e/6 cabling. Ideal for branch offices, campuses, or remote installations lacking AC power outlets.
Key Features :
Delivers 48V PoE+ and data up to 550m
Compatible with singlemode and multimode SFP transceivers
Supports auto MDI/MDI-X and full/half-duplex operation
Plug-and-play installation with no software required
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | N785-P01-SFP |
| Product Type | Gigabit SFP Fiber to Ethernet Media Converter with PoE+ |
| Ethernet Ports | 1 x RJ45 (10/100/1000Base-T) |
| Fiber Port | 1 x SFP (supports singlemode and multimode transceivers) |
| Maximum Fiber Distance | 550 meters (singlemode) |
| Maximum Copper Distance | 100 meters (Cat5e/6) |
| PoE Output | 48V DC, up to 15.4W (IEEE 802.3af/at compliant) |
| Power Input | 100-240V AC, 50/60Hz, 1.5A; Output: 48V DC, 1.25A |
| Operating Temperature | -20°C to +60°C |
| Compliance | FCC, RoHS, UL/cUL, PSE, CCC |
| Dimensions (H x W x D) | 25.4 x 71.1 x 71.1 mm |
| Weight | 0.3 kg |
| Warranty | 2-year limited warranty |
