Detailed Specifications

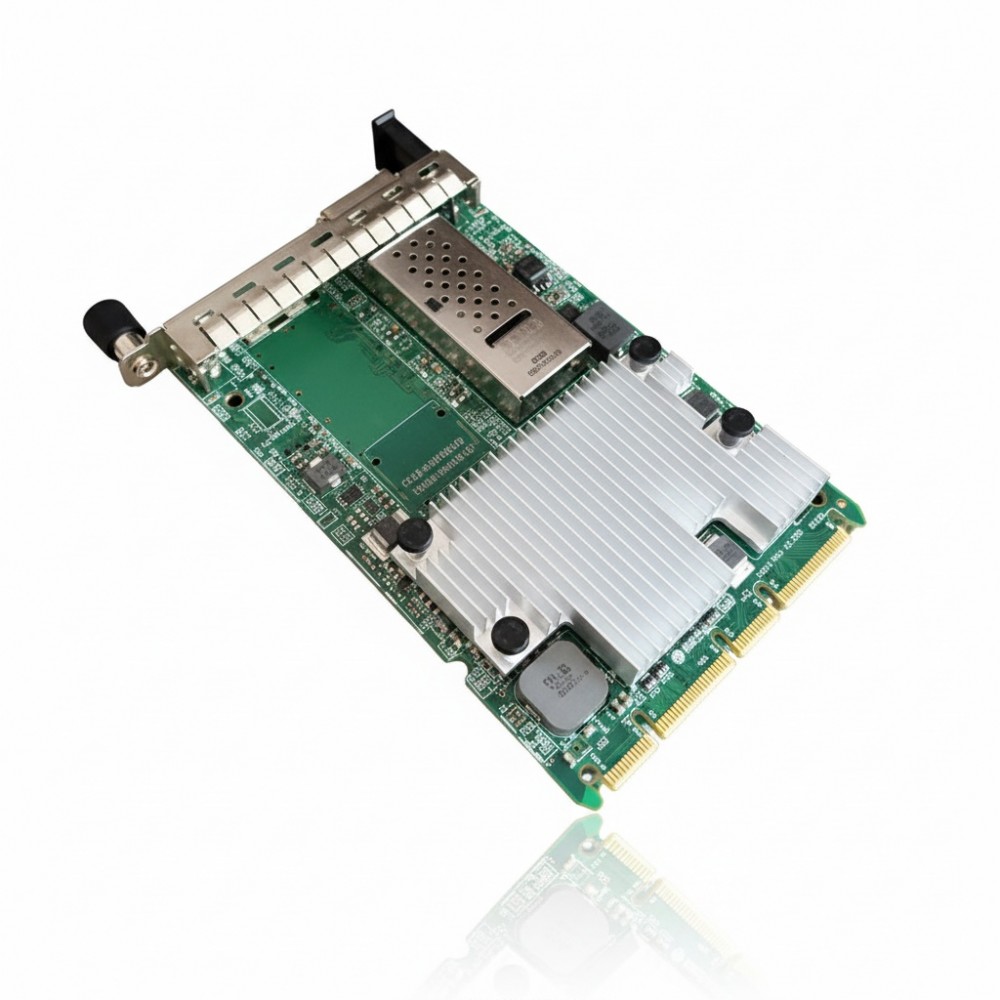

HPE P02069-001 Ethernet InfiniBand 100 Gb 1-Port 841 OCP QSFP28 Adapter
Overview
The HPE P02069-001 is a high-throughput network adapter designed for servers and storage nodes requiring ultra-high-bandwidth connectivity. It offers a single QSFP28 port capable of 100 Gb/s throughput and is suitable for both Ethernet and InfiniBand fabrics. The adapter installs into an OCP mezzanine or PCIe×8 slot × freeing other expansion slots × and supports modern offloads such as NVMe over Fabrics, RoCE, and other RDMA protocols. The form factor is low-profile, making it appropriate for dense rack servers or blade systems where space and airflow are constrained. Ideal for high-performance computing, flash-storage back-end nodes and converged fabric deployments, it provides future-ready connectivity for demanding data-centre environments.
Key Features
Single QSFP28 port delivering 100 Gb/s link speed
Dual-protocol support (Ethernet and InfiniBand) for flexible fabric use
OCP mezzanine/PCIe×8 form-factor to conserve standard expansion slots
Low-profile adapter suited for dense server or blade installations
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | P02069-001 |
| Product Type | Ethernet / InfiniBand 100 Gb 1-Port Adapter |
| Port Count | 1 |
| Link Speed | 100 Gb/s |
| Port Type | QSFP28 |
| Host Interface | PCI Express 3.0 ×8 (OCP mezzanine style) |
| Form Factor | Low-profile plug-in card |
| Media Support | QSFP28 optical or DAC cabling |
| Supported Protocols | Ethernet 100GBASE-X, InfiniBand EDR |
| Dimensions (W × D × H) | ~3.0″ × ~6.5″ × ~0.7″ |
| Weight | ~0.22 lb (~0.10 kg) |
| Use Case | Compute/storage uplinks, HPC fabrics |
| Virtualisation/Offload | RoCE, NVMe-oF, RDMA |
