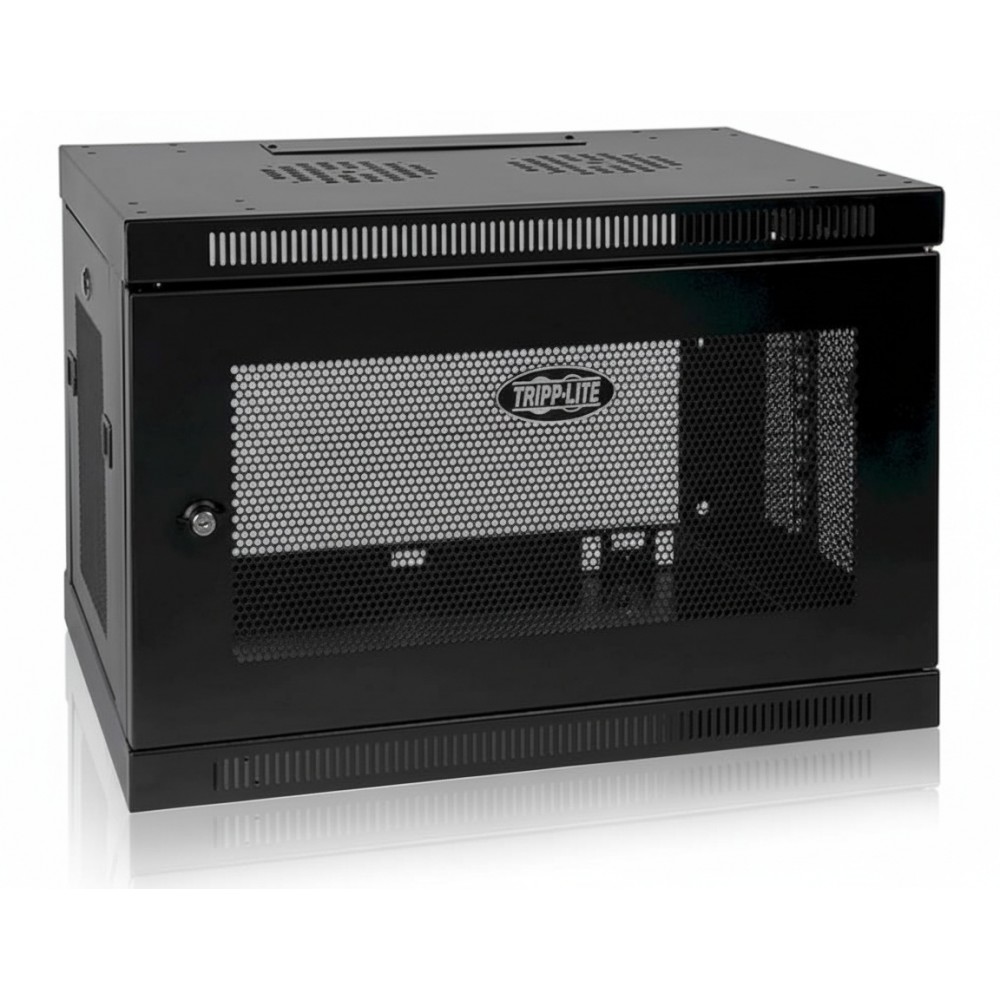

Eaton SRW9U 9U Wall-Mount Rack Enclosure 19″
Overview :
The Eaton SRW9U is a 9U, low-profile wall-mount rack enclosure cabinet designed to house EIA-310-standard 19″ rack-mount equipment in locations with limited floor space. IT infrastructure engineers, network architects, and facility managers deploy it in IDF closets, retail backrooms, classrooms, and branch offices to securely store network switches, routers, patch panels, and similar gear while preserving workspace footprint.
Constructed from heavy-duty powder-coated steel, the enclosure supports a 200 lb (90.7 kg) static load and accommodates equipment with a maximum depth of approximately 16.5 in (419 mm) on adjustable vertical rails. Front, side, and top/bottom ventilation improves airflow through mounted gear.
Physically it is a wall-mounted low-profile cabinet that ships fully assembled, and it can also be mounted on optional rolling casters (e.g., the SRCASTER kit) to allow mobile rack use under desks or counters. Cable management ports at the top and bottom simplify entry/exit routing.
Integration with rack-mount equipment is straightforward: the SRW9U uses EIA-310-E compliant 19″ rack rails with numbered U markings and supports standard square or threaded mounting hardware. Lockable front door and removable side panels aid security and maintenance access.
In deployment, this cabinet is suited for secure organization of networking gear in small network closets, classroom AV racks, or branch office communications enclosures where full floor racks aren't practical. It is not appropriate where deeper or full-height rack systems are required or where heavy power distribution equipment (>200 lb) must be mounted. Ventilation is passive; forced-air cooling requires separate fan kits if necessary.
Key Features
9U EIA-310-compliant 19″ wall-mount rack enclosure
200 lb (90.7 kg) static load capacity
Adjustable vertical rails up to ~16.5″ equipment depth
Vented front, side, top, and bottom panels
Lockable front door and removable side panels
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | SRW9U |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Height | 9U |
| Rack Width | 19″ (EIA-310 standard) |
| Static Load Capacity | 200 lb / 90.7 kg |
| Max Device Depth | ~16.5 in / 419 mm |
| Depth | ~17.8 in / 448.8 mm |
| Width | ~23.6 in / 600 mm |
| Height | ~19.9 in / 504 mm |
| Weight | ~35 lb / 15.9 kg |
| Material | Steel, black powder-coat |
| Ventilation | Vented panels front/side/top/bottom |
| Door Type | Lockable reversible front door |
| Side Panels | Removable, lockable |
| Mounting | Wall-mount hardware included |
| Compliance | EIA-310-E, RoHS |
