Detailed Specifications

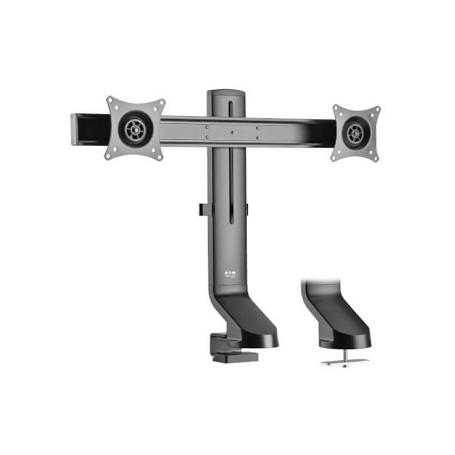

Eaton DDR1727DC Dual-Display Monitor Arm with Desk Clamp and Grommet compatible Tripp Lite
Overview :
The Eaton DDR1727DC is a Tripp Lite by Eaton dual-display monitor arm designed for mounting two 17-inch to 27-inch monitors on a desktop workstation. It supports both clamp and grommet mounting for flexible installation on compatible desks and tables.
The monitor arm provides one-touch height adjustment and supports independent monitor positioning. Each display can be tilted, swiveled and rotated to achieve a comfortable viewing position. The mount supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns and can support up to 15.4 lb (7 kg) per screen.
The low-profile steel construction is suitable for office workstations, sit-stand desks and professional desktop environments. Integrated cable management helps route display cables along the monitor arm and reduce desktop cable clutter.
Key Features :
- Dual-monitor mounting solution
- Supports 17-inch to 27-inch displays
- Desk clamp and grommet mounting options
- Supports up to 15.4 lb (7 kg) per screen
- One-touch vertical height adjustment
- VESA 75 x 75 mm and 100 x 100 mm compatibility
- -10° to +10° tilt adjustment
- 10° swivel adjustment
- 180° monitor rotation
- Supports portrait and landscape monitor orientation
- Integrated cable management
- Durable steel construction
- Black powder-coated finish
- Suitable for sit-stand workstations
- 5-year limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | DDR1727DC |
| Product Type | Dual-Display Monitor Arm |
| Number of Displays | 2 |
| Supported Screen Size | 17" to 27" |
| Mounting Type | Desk Clamp / Grommet |
| VESA Pattern | 75 x 75 mm / 100 x 100 mm |
| Maximum Weight Capacity | 15.4 lb (7 kg) per screen |
| Tilt | -10° to +10° |
| Swivel | 10° |
| Rotation | 180° |
| Height Adjustment | 9.4" to 18.5" |
| Clamp Mount Desk Thickness | 0.4" to 1" |
| Grommet Mount Desk Thickness | 0.4" to 1.6" |
| Material | Steel |
| Finish | Powder-coated |
| Color | Black |
| Cable Management | Integrated |
| Assembly Required | Yes |
| Mounting Hardware | Included |
| Compliance | RoHS, REACH |
