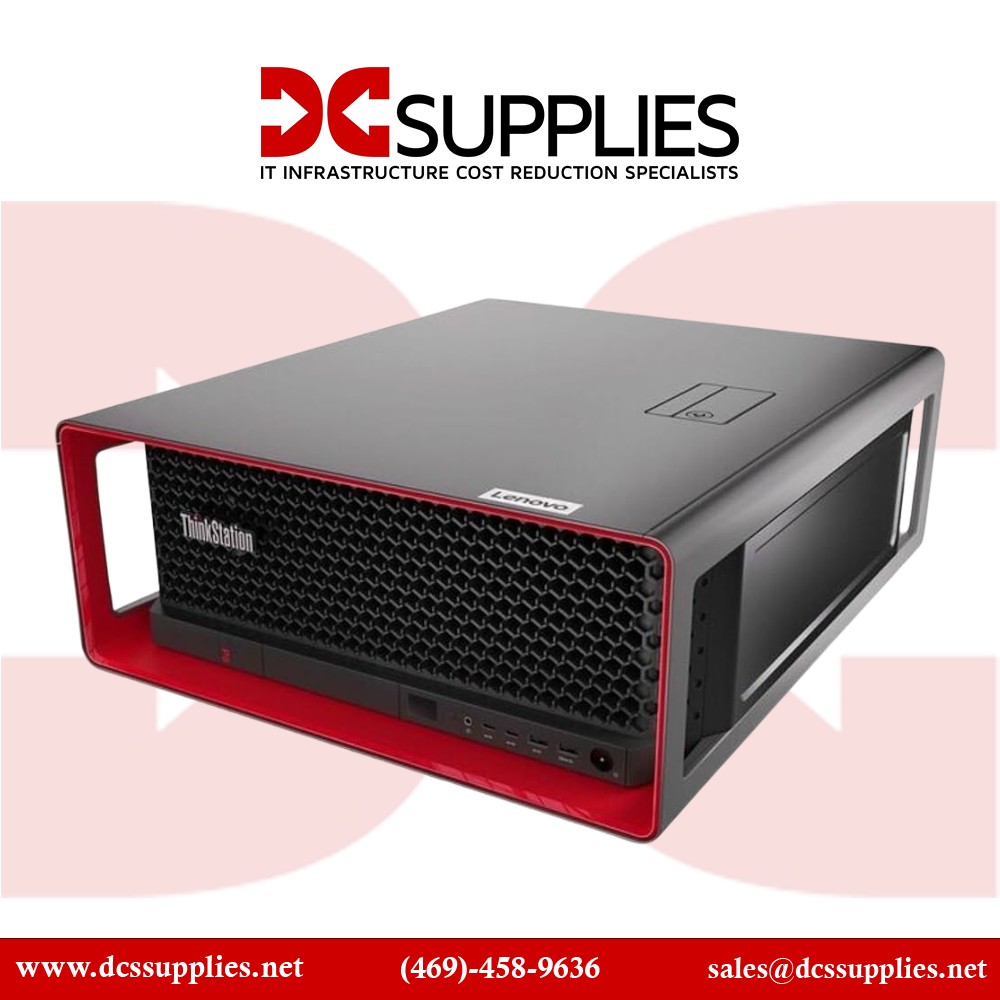

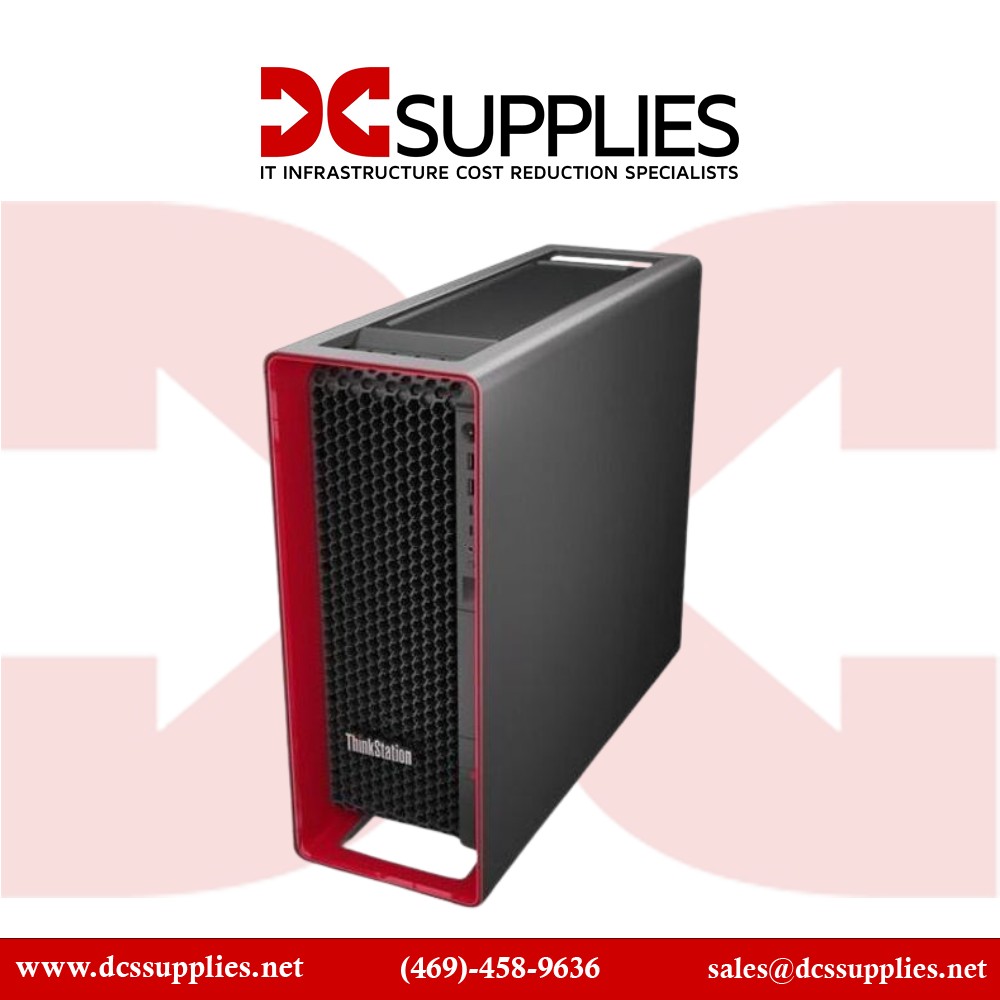

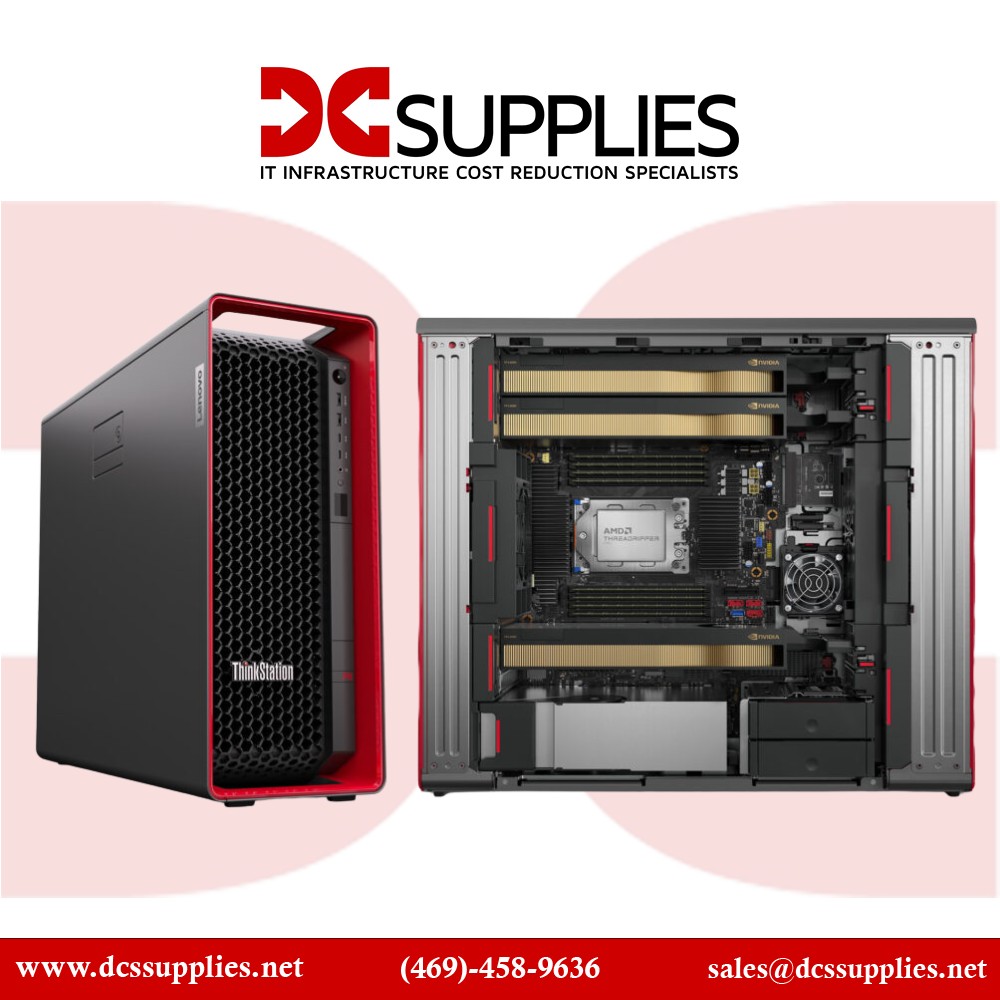

Lenovo ThinkStation
30HH002QUS AMD Ryzen Threadripper PRO 7945WX (12-core, up to 5.3 GHz), 32 GB DDR5
The Lenovo ThinkStation P8 (model 30HH002QUS) is a powerhouse NVIDIA-certified Workstation tailored for professionals tackling complex simulation, rendering, AI modeling, or scientific computing. Featuring a 12-core/24-thread AMD Ryzen Threadripper PRO 7945WX running at a base clock of 4.70 GHz (boost up to 5.30 GHz), plus 32 GB ECC DDR5 memory (expandable to 1 TB), its multi-threaded performance is exceptional. With a 1 TB high-speed NVMe PCIe 4.0 SSD (Opal-encrypted) for fast, secure storage, enterprise-grade TCG Opal compliance, and Windows 11 Pro as the OS, this system delivers turnkey performance for demanding workloads. It also includes a dedicated NVIDIA T400 GPU, integrated dual-port 10 Gb and Gigabit LAN, Wi-Fi 6E, Bluetooth 5.3, and robust I/O connectivity.
Features
At the heart of the P8 is AMD's Threadripper PRO 7945WX, built on the WRX90 platform and offering 12 cores with 12 MB L2 and 64 MB L3 cache for maximum throughput. Lenovo configures it with 32 GB DDR5 ECC memory (2×16 GB at 4.8 GHz), with full support for up to 1 TB across eight slots to accommodate memory-heavy applications.Storage is backed by a 1 TB PCIe Gen 4 x4 NVMe SSD, optimized for high IOPS, lightning-fast access, and secure TCG Opal encryption. RAID support for SATA/NVMe (levels 0, 1, 5, 10) ensures flexible and resilient configurations for critical data workloads.
Advanced Options
Graphics are handled by a professional-class NVIDIA T400 with 4 GB GDDR6 memory, ideal for engineering, CAD, and AI-accelerated visualization. Dual network support×1 Gb and 10 Gb Ethernet×plus Wi-Fi 6E and Bluetooth 5.3 enable high-speed connectivity and seamless integration into modern LAN/WAN environments. The chassis features an advanced thermal design inspired by Aston Martin aesthetics, including tool-free internals, vertical or horizontal orientation flexibility, top-tier airflow, and convenient access for future upgrades or maintenance.
Product Key Features
AMD Ryzen Threadripper PRO 7945WX (12 cores/24 threads, up to 5.3 GHz Turbo)
32 GB DDR5 ECC Registered Memory (2×16 GB @ 4.8 GHz), expandable to 1 TB
1 TB PCIe 4.0 x4 NVMe SSD with hardware TCG Opal encryption
NVIDIA T400 Pro graphics with 4 GB GDDR6
Dual Ethernet ports (1 Gb + 10 Gb), Wi-Fi 6E, Bluetooth 5.3
Support for RAID 0/1/5/10 on NVMe and SATA drives
ECC memory and enterprise-grade manageability tools
Compact yet serviceable chassis with tool-free upgrade paths
Reliability & Performance
Engineered for mission-critical environments, the ThinkStation P8 delivers consistent, high-speed performance across multi-threaded and GPU-accelerated workflows. ECC-protected DDR5 memory and TCG Opal SSD encryption ensure data integrity and security×especially crucial in regulated sectors or shared infrastructure. Lenovo platform tests yield MTBF ratings suitable for around-the-clock operation, while RAID options and dual NIC interfaces facilitate redundancy for networking and storage. The advanced thermal and chassis architecture supports sustained boosts up to 5.3 GHz while keeping noise and thermal output manageable. With certified compatibility across Lenovo-preferred ISV applications, simplified BIOS management, and reliable 3-year onsite support, the P8 is built for uptime and enterprise deployment reliability
Key Features (Bullet List)
AMD Ryzen Threadripper PRO 7945WX, 12 cores / 24 threads (4.70 GHz base, 5.30 GHz turbo)
32 GB DDR5 ECC, expandable to 1 TB ECC
1 TB PCIe 4.0 NVMe SSD (Opal-encrypted)
NVIDIA T400 (4 GB GDDR6 professional-class GPU)
Dual Gigabit + 10 Gigabit Ethernet, Wi-Fi 6E, Bluetooth 5.3
Support for RAID 0/1/5/10 on storage
ECC memory support and enterprise firmware tools
Compact chassis with vertical or horizontal mounting
ISV certifications and enterprise manageability
3-Year Premier Onsite Warranty
Specifications :
| Specification | Details |
|---|
| Model Number | 30HH002QUS |
| Product Series | ThinkStation P8 |
| CPU | AMD Ryzen Threadripper PRO 7945WX (12 cores / 24 threads) |
| CPU Clock | 4.70 GHz base / Up to 5.30 GHz turbo |
| L2 Cache / L3 Cache | 12 MB / 64 MB |
| Memory | 32 GB DDR5 ECC Registered (2×16 GB @ 4.8 GHz) |
| Maximum Memory | Up to 1 TB ECC DDR5 RAM (8 slots) |
| Storage | 1 TB PCIe Gen 4 x4 NVMe M.2 2280 SSD, TCG Opal encrypted |
| Graphics | NVIDIA T400, 4 GB GDDR6 |
| Network | 1 Gb + 10 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3 |
| RAID Support | 0, 1, 5, 10 for SATA and NVMe drives |
| I/O Ports | 10 USB ports (incl. USB-C Gen 2x2), audio in/out, serial optional |
| Operating System | Windows 11 Pro 64-bit |
| Power Supply | 1400 W PSU |
| Chassis Dimensions (H×W×D) | 17.1″ × 6.9″ × 20″ |
| Weight | Approx. 50 lb (22.7 kg) |
| Certifications | EPEAT Gold, Energy Star 8.0, TCO Certified 9.0, RoHS |
| Warranty | 3-Year Premier Onsite Support |
