Detailed Specifications

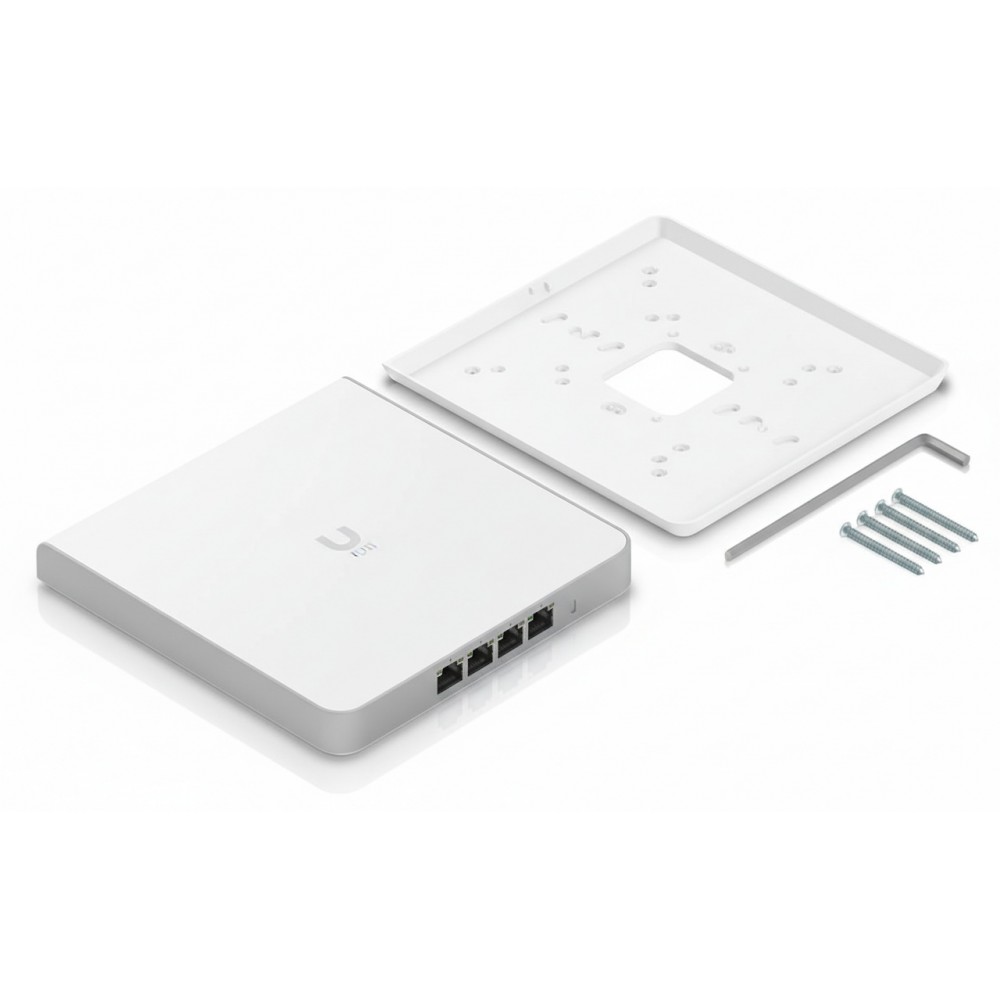

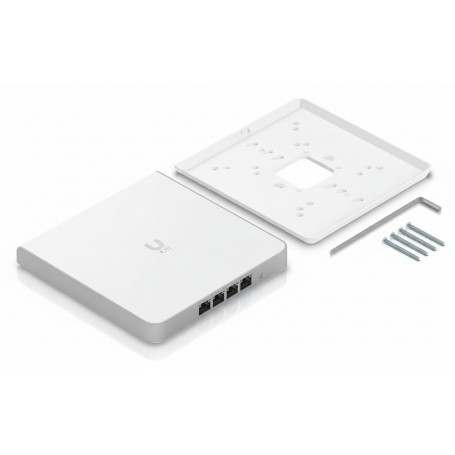

Ubiquiti U6-Enterprise-IW-US In-Wall Wi-Fi 6E Access Point
Overview
The Ubiquiti U6-Enterprise-IW-US is an in-wall tri-band Wi-Fi 6E access point designed for enterprise and high-density indoor wireless deployments. It delivers simultaneous 2.4 GHz, 5 GHz, and 6 GHz Wi-Fi with a built-in 2.5 GbE uplink and four Gigabit Ethernet down-ports that can supply PoE to connected devices, simplifying wiring in offices and hospitality environments. With up to ~10.17 Gb/s aggregate throughput and support for 600+ connected clients, it can handle heavy traffic typical of modern workplaces. The unit mounts flush in standard wall openings and integrates into the UniFi Network management platform for centralized control and monitoring.
Key Features
• Tri-band Wi-Fi 6E (2.4/5/6 GHz)
• ~10.17 Gb/s aggregate throughput
• 1× 2.5 GbE PoE+ uplink
• 4× GbE down-ports with PoE output
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | U6-Enterprise-IW-US |
| Product Type | In-Wall Tri-Band Wi-Fi 6E AP |
| Wireless Standard | IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E) |
| Frequency Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Maximum Throughput | ~10,173 Mb/s aggregate |
| MIMO | 4×4 MU-MIMO (all bands) |
| Ethernet Ports | 1× 2.5 GbE uplink, 4× 1 GbE down-ports |
| PoE Support | PoE+ input (802.3at), PoE output on down-ports |
| Power Consumption | ≤ 21 W (excluding PoE output) |
| Antenna | Internal |
| Supported Clients | 600+ |
| Wireless Security | WPA, WPA-PSK, WPA2, WPA3 |
| Operating Temp | −30 to 60 °C |
| Mounting | In-wall with included kit |
| Dimensions | 159.7 × 156.7 × 33.8 mm |
| Weight | ~884 g |
