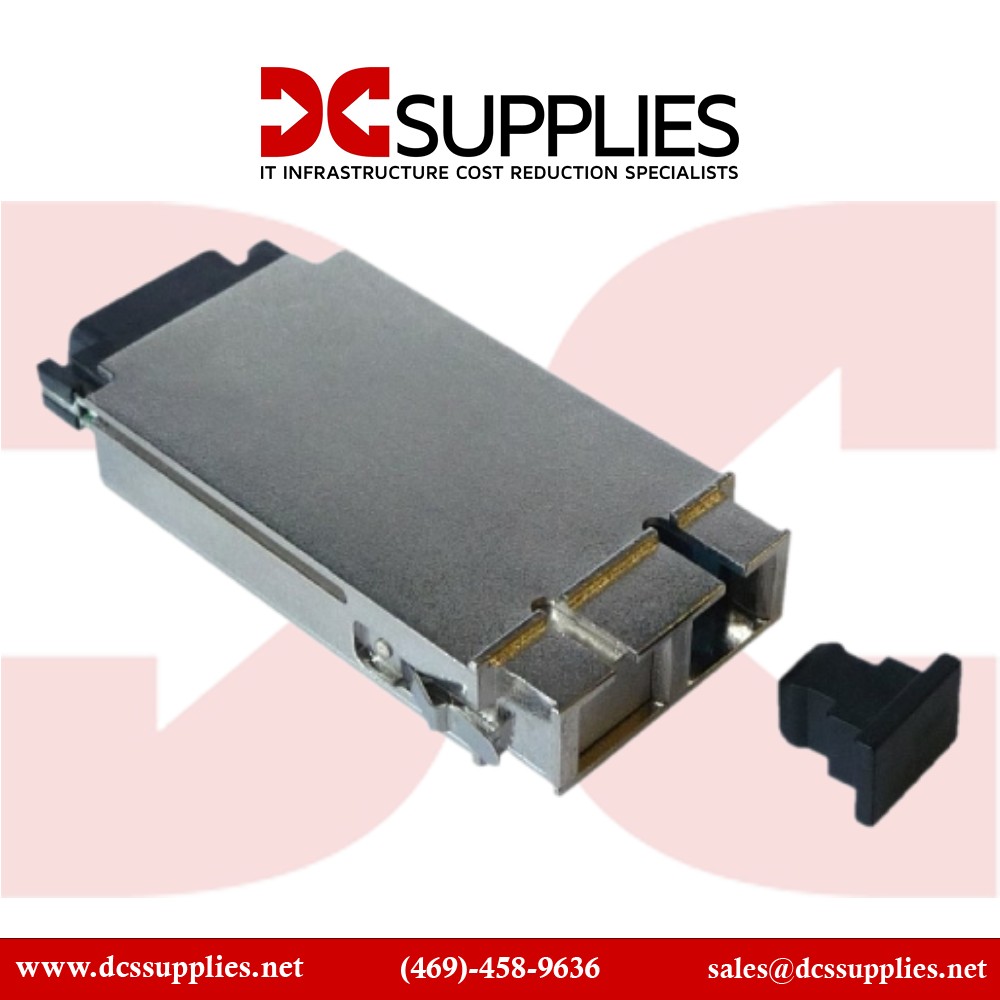

AddOn JD486A-AO 1000Base-LX GBIC 1310nm 10km SC SM Transceiver HP JD486A

Addon

JD486A-AO GBIC Transceiver module - HP JD486A-Compatible, 1000Base-LX, Single-Mode Fiber, SC Connector, 10 km, 1310 nm

The Addon JD486A-AO is a fully compatible replacement for HP JD486A GBIC Transceiver module, engineered to deliver 1 Gbps Gigabit Ethernet over single-mode fiber at 1310 nm wavelength for distances up to 10 km. Utilizing a duplex SC connector and adhering to 1000Base-LX standards, this module offers dependable long-distance connectivity and seamless interoperability with HP and MSA-compliant network switches. Factory-programmed, uniquely serialized, and rigorously tested for application-level performance, it emulates OEM behavior for plug-and-play simplicity×ideal for enterprise LAN backbones, campus links, and carrier-class installations.

Features

Designed as a drop-in replacement for HP branded Transceiver module, the JD486A-AO module fully adheres to GBIC MSA (mini-GBIC / SFF-8053) specifications. It provides full-duplex 1000Base-LX operation carrying 1 Gbps traffic over 9/125 µm single-mode fiber links up to 10 km with minimal signal loss. Its metal enclosure ensures high EMI immunity and reliable thermal dissipation, making it a solid fit for rack-mounted switch and router environments. The module is hot-swappable, enabling seamless upgrades or replacements with minimal disruption to active network environments.

Advanced Options

Each unit ships factory-programmed with a unique serial code and EEPROM signature specific to HP JD486A logic, ensuring zero configuration or firmware mismatch on device insertion. Integrated ESD protection and accuracy-tested optics provide stable link negotiation and low error rates, and compliance with TAA and RoHS regulations ensures suitability for global enterprise and government procurement.

Product Key Features

• Full-duplex 1 Gbps (1000Base-LX) transmission over single-mode fiber

• Duplex SC connector; supports distances up to 10 km over SMF

• 1310 nm laser for optimal long-reach optical communication

• OEM-compatible with HP JD486A; factory-programmed and serialized

• Hot-swappable GBIC form factor with rugged metal housing

• MSA/mini-GBIC SFF-8053 compliant; strong EMI shielding

• RoHS and TAA compliant; backed by lifetime limited warranty

---

Reliability & Performance

Built to meet rigorous enterprise demands, the JD486A-AO provides consistent and error-free long-distance links across fiber networks. Its precision-manufactured optics deliver adequate power output (-9 to -3 dBm) and receiver sensitivity (≤ -20 dBm), ensuring reliable performance at extended distances of up to 10 km. The robust metal module casing resists electromagnetic interference while providing excellent heat dissipation in high-density switch racksEase of deployment is a key advantage: factory-programming and unique serialization guarantee out-of-box recognition in HP networking gear, eliminating compatibility or logic match issues. Thermal operation is guaranteed across 0 °C to 70 °C; storage ranges from -40 °C to 85 °C. Addon conducts automated traffic profile tests to ensure BER well within acceptable thresholds, delivering OEM-level reliability at competitive value.

Key Features (Bullet List)

• 1000Base-LX GBIC Transceiver module supporting up to 10 km over SMF

• HP JD486A-compatible, factory-flashed for plug-and-play deployment

• Duplex SC connector design; power-efficient 1310 nm laser

• Rugged metal housing with strong EMI protection

• MSA compliant; hot-swappable GBIC footprint

• Serialisation ensures port initialization consistency

• RoHS- and TAA-compliant; lifetime limited warranty

Specifications :

Specification	Details
Model Number	JD486A-AO
Product Type	GBIC Transceiver module
Data Rate	1 Gbps (1000Base-LX)
Fiber Mode	Single-mode (9/125 µm)
Wavelength	1310 nm
Maximum Distance	Up to 10 km
Connector Type	Duplex SC
Form Factor	GBIC / mini-GBIC (SFF-8053)
Power Supply	3.3 V DC
Power Consumption	~250 mA (~0.8 W typical)
Operating Temperature	0 °C to 70 °C
Storage Temperature	-40 °C to 85 °C
EMI Protection	Metal housing
Compliance	MSA, SFF-8053, RoHS, TAA
Compatibility	HP JD486A GBIC ports, other MSA gear
Hot-Pluggable	Yes
Warranty	Lifetime Limited Warranty
