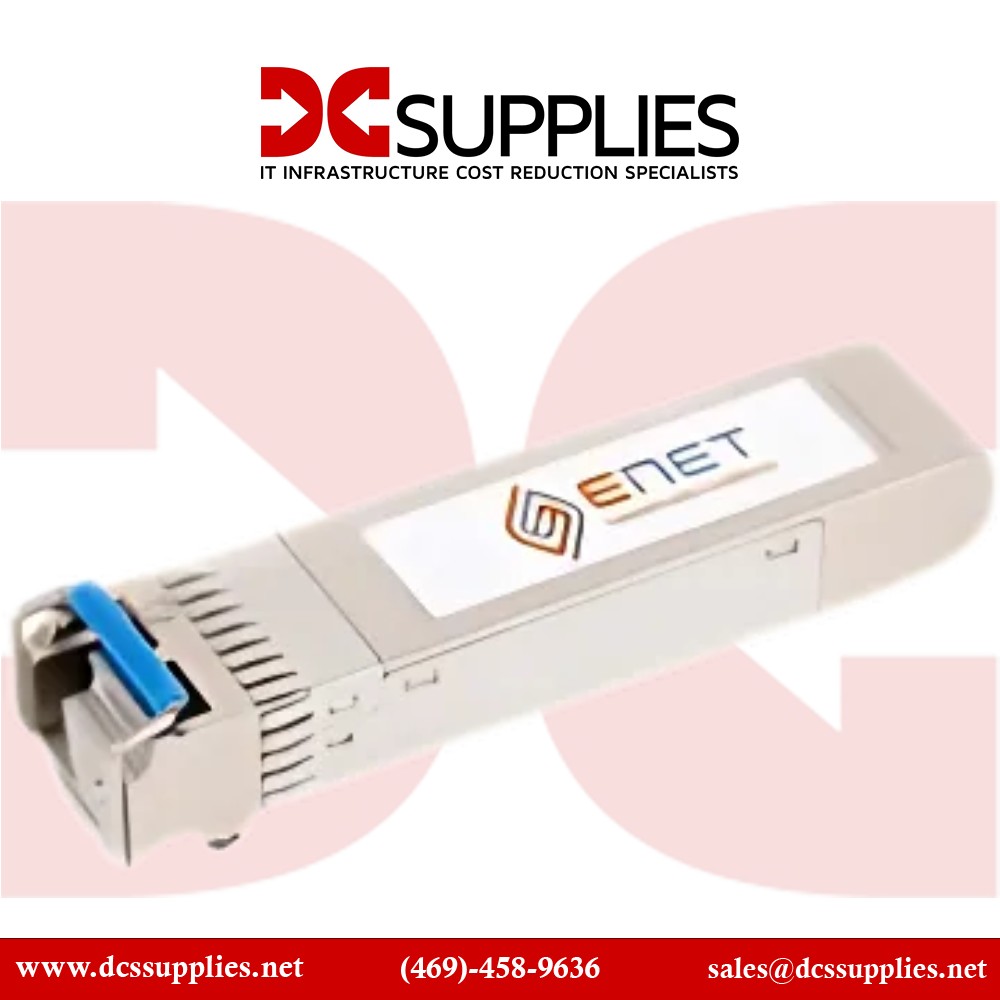

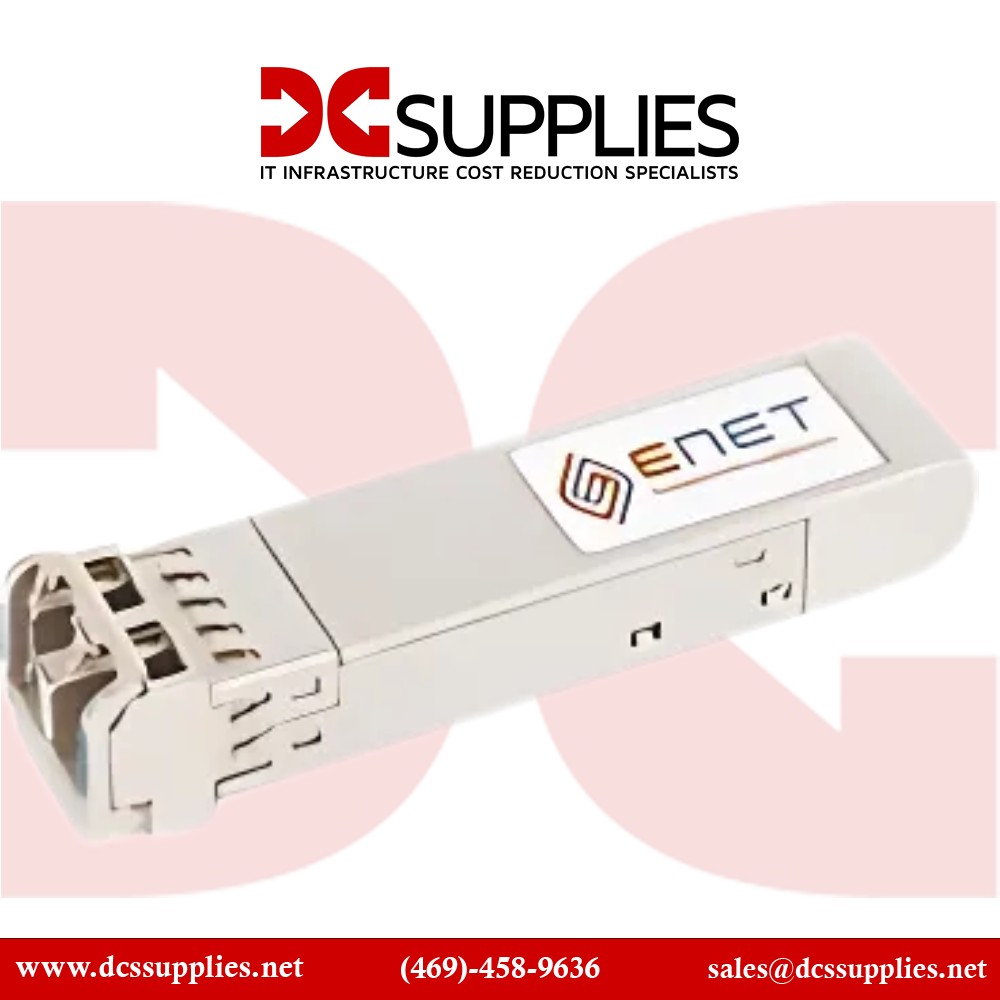

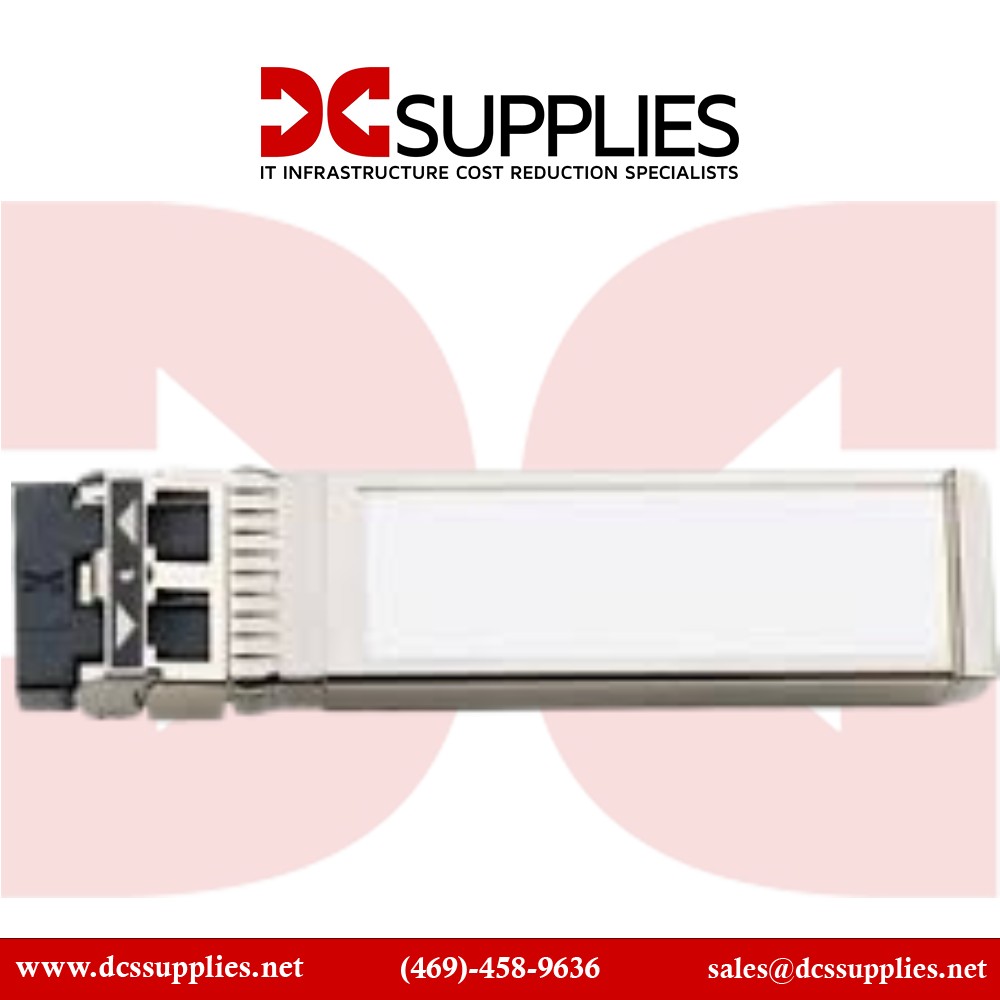

ENET JW090A-ENC 10GBASE-LRM SFP+ Transceiver For Aruba JW090A

ENET JW090A-ENC

10GBASE-LRM SFP+Transceiver For Aruba JW090A

A reliable and cost-effective 10G SFP+transceiver for short-reach multimode fiber links.

Overview :

The ENET JW090A-ENC is a 10GBase-LRM SFP+transceiver module designed for HPArubaswitches and routers. It provides reliable 10 Gigabit Ethernet connectivity at a maximum distance of 220 meters over multimode fiber, suitable for enterprise wiring closets, data centers, and campus network deployments requiring short-reach fiber optic links.

Features :

This transceiver utilizes a 1310 nm wavelength laser with support for the 10GBase-LRM Ethernet standard, optimized for multimode fiber applications. The duplex LC connector facilitates seamless integration into existing fiber optic cabling infrastructure. The module complies with Multi-Source Agreement (MSA) standards to ensure broad compatibility and supports Digital Optical Monitoring (DOM) to assist in real-time diagnostics and proactive network maintenance. Preprogrammed to match HPAruba specifications, the JW090A-ENC module guarantees plug-and-play operation and consistent performance across supported hardware models. It supports dual-direction data transmission at 10 Gbps with low latency and error rates, well-suited for high-bandwidth business and data center environments.

Product Key Features

• Supports 10 Gigabit Ethernet 10GBase-LRM standard.
• Operates at 1310 nm wavelength over multimode fiber (MMF).
• Maximum transmission distance up to 220 meters.
• Duplex LC connector interface.

---

Reliability & Performance :

Encased in a sturdy metal housing, the transceiver offers outstanding durability and stable optical performance within a commercial temperature range of 0° to 70°C. The hot-swappable design allows for easy installation or replacement without disrupting network connectivity. Built-in monitoring features help maintain optimal network health and prevent downtime.

Key Features :

• 10GBase-LRM transceiver using 1310 nm wavelength.
• Duplex LC fiber optic connector.
• 220 meters max transmission on multimode fiber.
• Compatible with HPArubanetworks and MSA compliant.
• Hot-swappable with Digital Optical Monitoring (DOM).
• Operates within 0° to 70°C temperature range.

Specifications :

Specification	Description
Model Number	JW090A-ENC
Product Type	10GBase-LRM SFP+Transceiver
Data Rate	10 Gbps
Fiber Type	Multimode fiber (MMF)
Connector Type	Duplex LC
Wavelength	1310 nm
Transmission Distance	Up to 220 meters
Power Consumption	Approx. 1 W
Hot-pluggable	Yes
Digital Diagnostics	Supported (DOM)
Compatibility	HPAruba compatible
Operating Temperature	0° to 70°C
