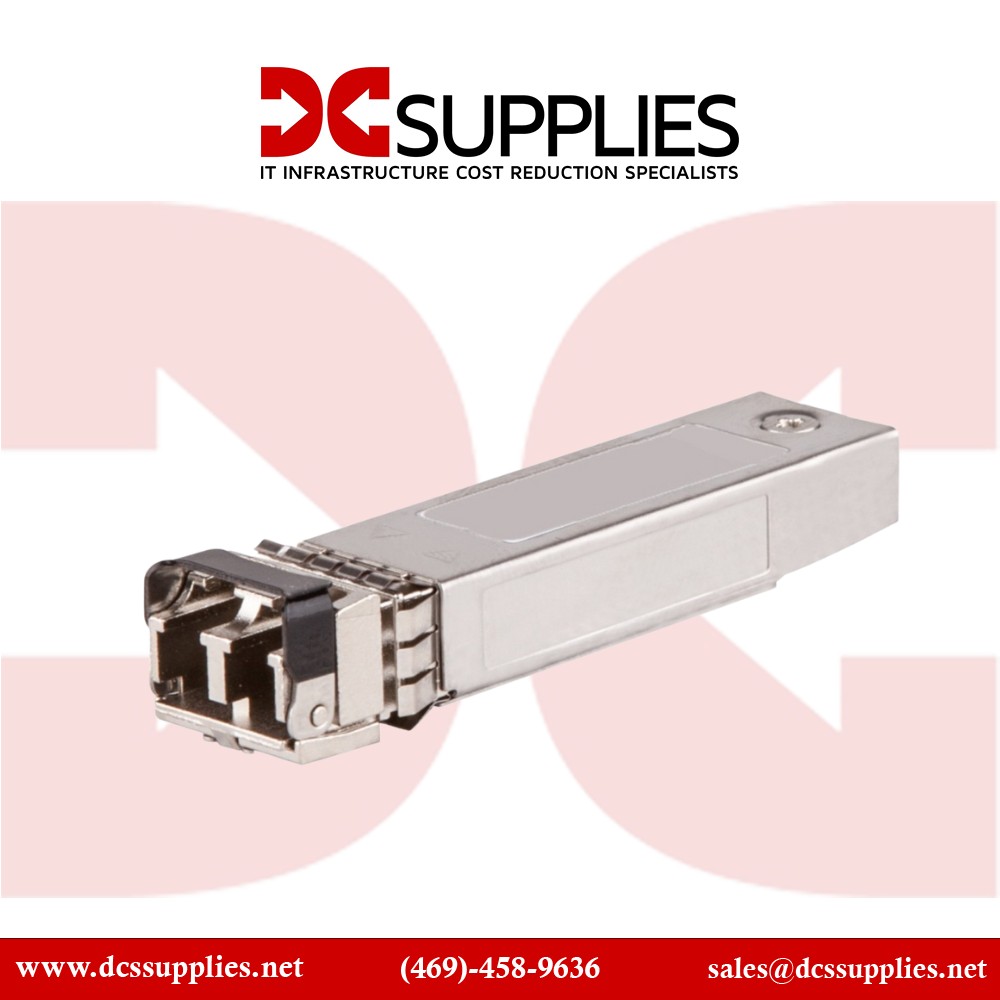

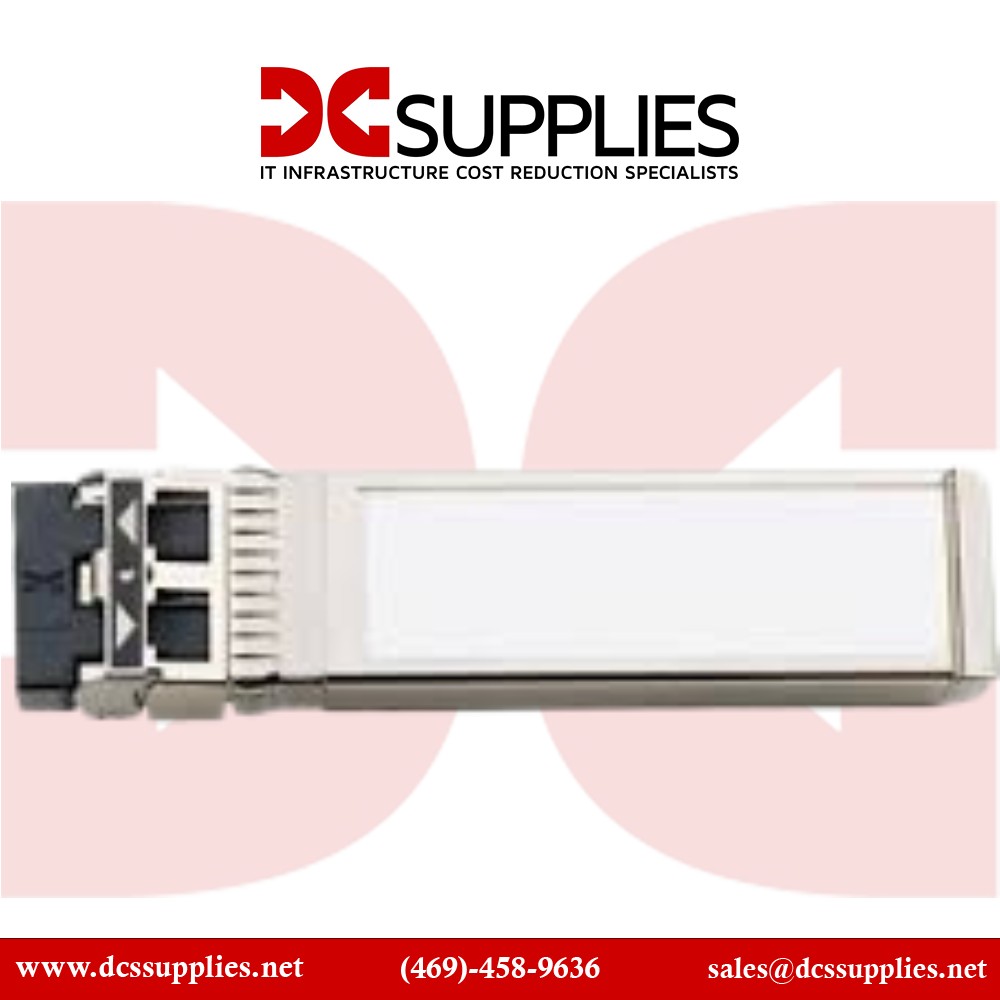

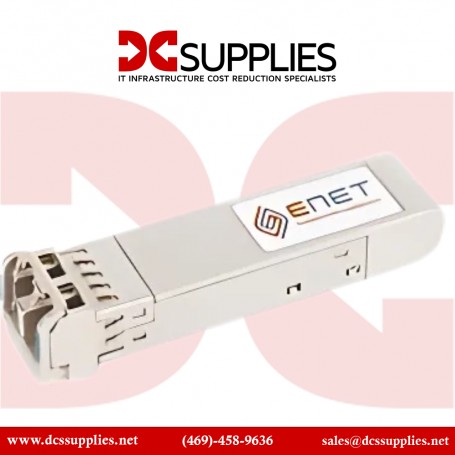

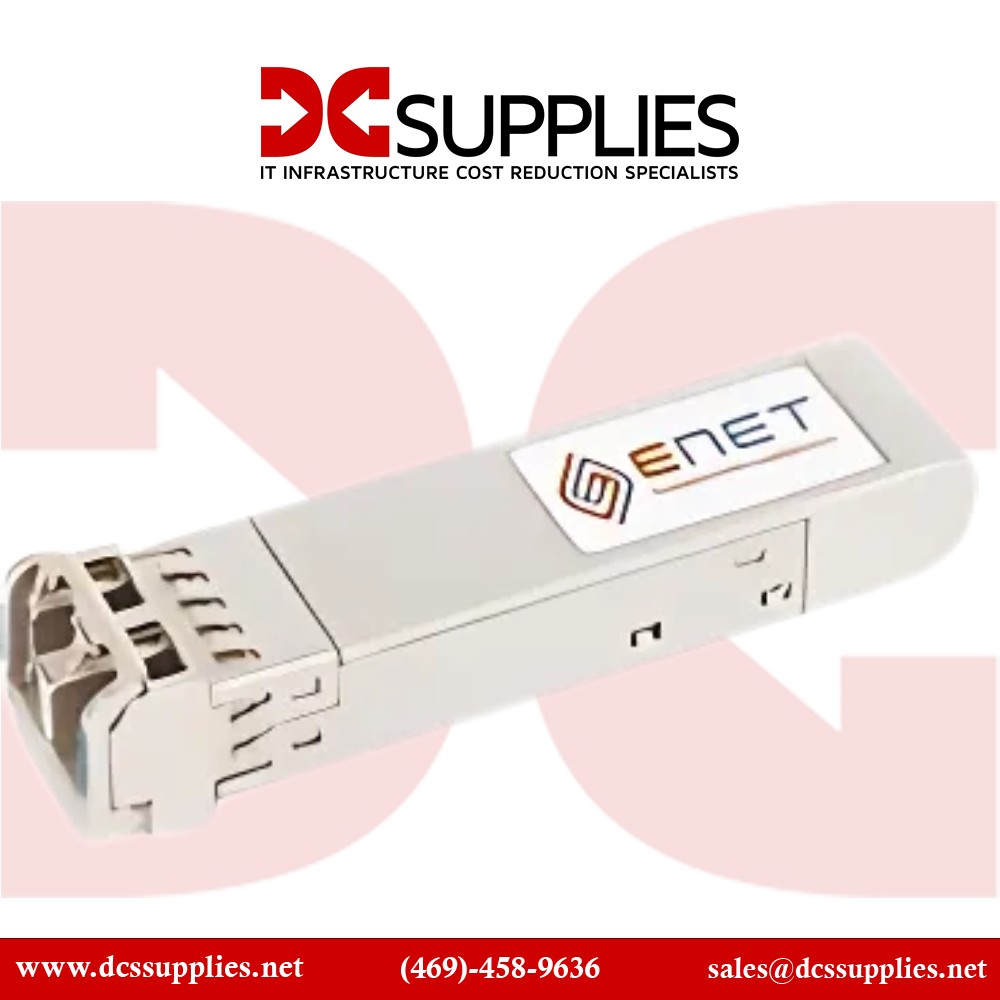

ENET JH232A-80K-ENC HP Aruba Compatible 40GBase-ZR4 QSFP+ 80km SMF Duplex LC Transceiver

ENET JH232A-80K-ENC

HPAruba Compatible 40GBase-ZR4 QSFP+ 80km SMF Duplex LCTransceiver

A high-performance 40G QSFP+transceiver for long-distance 40G connections.

Overview :

The ENET JH232A-80K-ENC is a high-performance 40GBase-ZR4 QSFP+transceiver fully compatible with HPArubanetworking hardware. It delivers cost-effective, long-distance 40 Gigabit Ethernet connectivity over single-mode fiber up to 80 kilometers. This module is ideal for data centers, metro, and enterprise backbone networks requiring robust, reliable high-speed fiber links.

Features :

Utilizing four lanes of 10 Gbps each, the JH232A-80K-ENC achieves a combined data rate of 40 Gbps, employing four wavelengths (around 1295 nm to 1331 nm) for multi-channel transmission over single-mode fiber. The duplex LC connector enables seamless integration with fiber optic infrastructure. The transceiver meets industry standards including IEEE 802.3ba and QSFP MSA ensuring interoperability and plug-and-play convenience. Designed for HPAruba compatibility, its EEPROM is preprogrammed with Aruba-specific information to guarantee seamless operation and firmware compatibility. The module supports DDM/DOM allowing network administrators to monitor vital parameters such as temperature, voltage, and optical power in real time, facilitating proactive network management.

Product Key Features

• Supports 40 Gigabit Ethernet 40GBase-ZR4 standard.
• Operates over single-mode fiber (SMF) with duplex LC connector.
• 80 km maximum transmission distance.
• HPAruba compatible, fully tested and programmed.

---

Reliability & Performance :

Constructed with a reliable metal casing, this transceiver provides robust protection from environmental factors and mechanical stress. Thoroughly tested for HPAruba platforms, the module ensures high-quality transmission with an optical budget capable of supporting 80 km fiber runs. Hot-swappable design allows for maintenance or upgrades without network downtime, while power-efficient operation helps minimize energy consumption.

Key Features :

• 40GBase-ZR4 QSFP+transceiver.
• Duplex LC connector for single-mode fiber.
• 80 km maximum fiber transmission distance.
• HPAruba compatible and preprogrammed.
• Supports digital diagnostics monitoring (DDM/DOM).
• Compliant with QSFP+ MSA, RoHS, and safety standards.

Specifications :

Specification	Description
Model Number	JH232A-80K-ENC
Product Type	40GBase-ZR4 QSFP+Transceiver
Data Rate	40 Gbps (4 x 10 Gbps lanes)
Fiber Type	Single-mode fiber (SMF)
Connector Type	Duplex LC
Wavelengths	Four lanes: approx. 1295-1331 nm
Transmission Distance	Up to 80 km
Power Consumption	Typically around 3.3V power supply
Hot-pluggable	Yes
Digital Diagnostics	Supported (DDM/DOM)
Compatibility	HPAruba compatible
Compliance	IEEE 802.3ba, QSFP+ MSA, RoHS
