Detailed Specifications

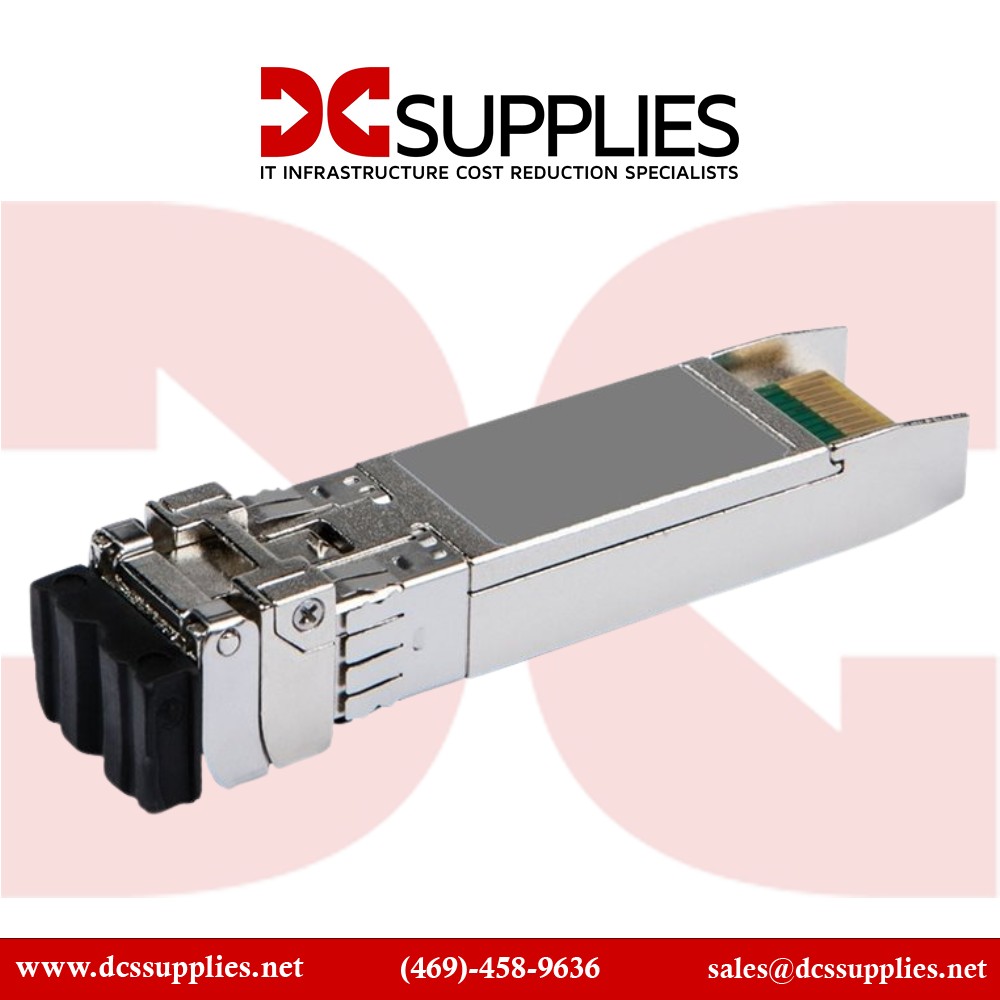

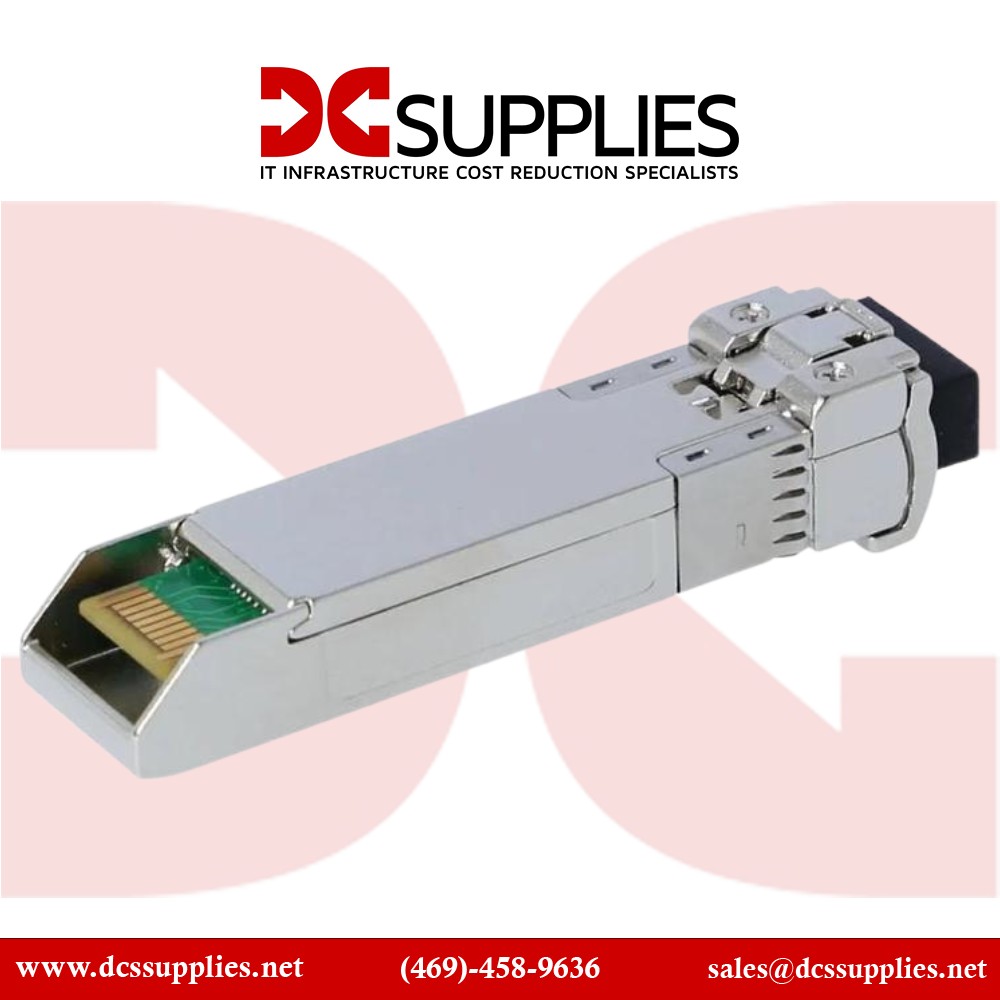

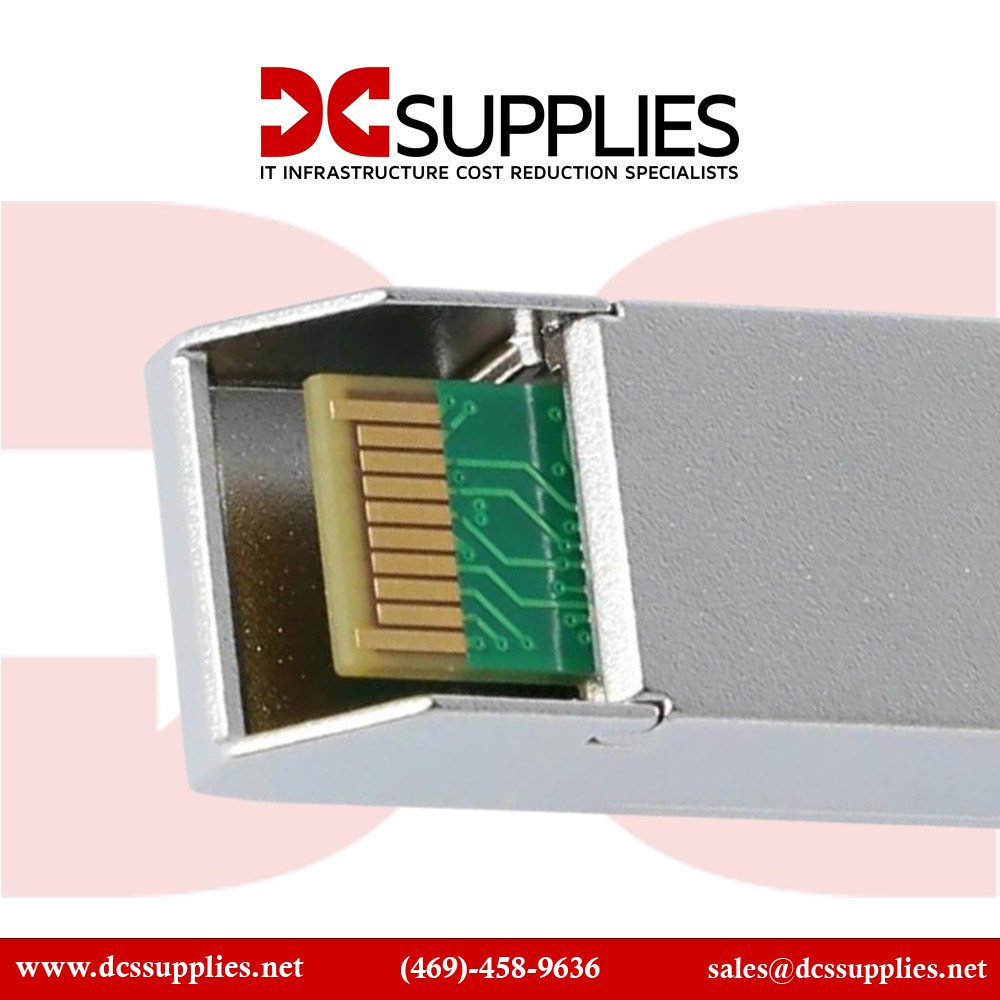

ENET JL782A-ENC
A rugged 10G SFP+transceiver for short-distance, industrial-grade networking.
Overview :
The ENET JL782A-ENC is a HP Aruba compatible 10GBASE-SR SFP+transceiver designed for industrial temperature environments. It provides reliable high-speed 10 Gigabit Ethernet connectivity over multimode fiber up to 300 meters, ideal for harsh enterprise, telecom, and industrial network applications. This transceiver module supports the 10GBASE-SR standard for short-range 10 Gigabit Ethernet applications over multimode fiber optic cables.
Features :
Utilizing an 850 nm VCSEL laser and a PIN photodiode receiver, it delivers stable, low-latency optical transmission with a duplex LC connector for straightforward fiber connections. Engineered to operate within an extended industrial temperature range (-40°C to +85°C), this module is suited for outdoor or environmentally challenging settings where commercial temperature modules may fail. Its hot-pluggable SFP+ form factor ensures easy installation and replacement without network downtime. Digital Diagnostic Monitoring (DDM) provides real-time monitoring of important parameters like temperature, voltage, and optical power, supporting proactive maintenance and network assurance.
Product Key Features
Reliability & Performance :
The JL782A-ENCtransceiver is designed for robust performance and compatibility, meeting CE and RoHS standards and featuring proven reliability for sustained use in industrial and enterprise environments. Tested extensively for seamless operation with HP Aruba hardware, it supports network stability and operational efficiency. Its low power consumption and high-quality construction ensure durable performance and minimal maintenance.
Key Features :
Specifications :
| Specification | Details |
|---|
| Model Number | JL782A-ENC |
| Product Type | 10GBASE-SR Industrial Temperature SFP+Transceiver |
| Data Rate | 10 Gbps |
| Maximum Distance | 300 meters (OM3/OM4 multimode fiber) |
| Wavelength | 850 nm |
| Form Factor | SFP+ (Small Form-factor Pluggable Plus) |
| Interface | Duplex LC optical connector |
| Transmitter Type | VCSEL laser |
| Receiver Type | PIN photodiode |
| Operating Temperature | -40°C to +85°C (Industrial Temp) |
| Power Supply | +3.3 V |
| Compliance | CE, RoHS, MSA, Class 1 Laser Safety |
| Digital Diagnostics | Supported (DDM/DOM) |
