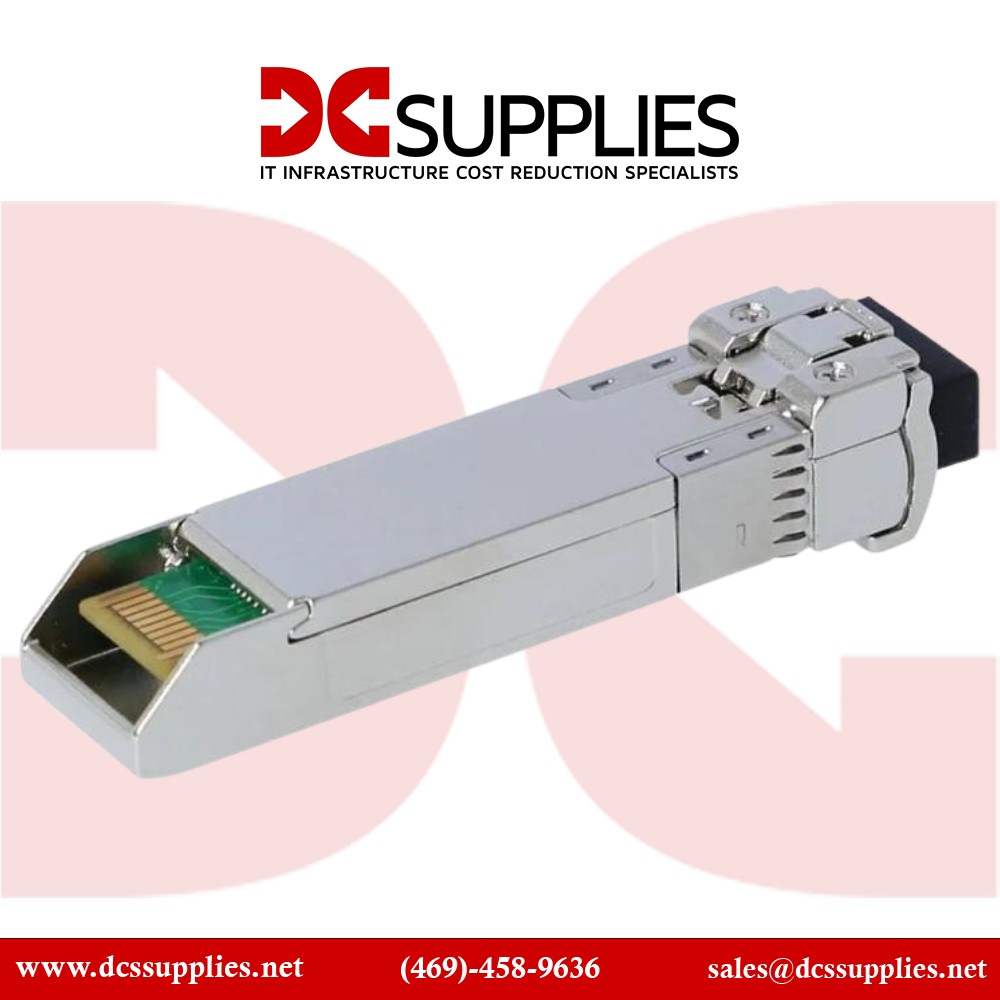

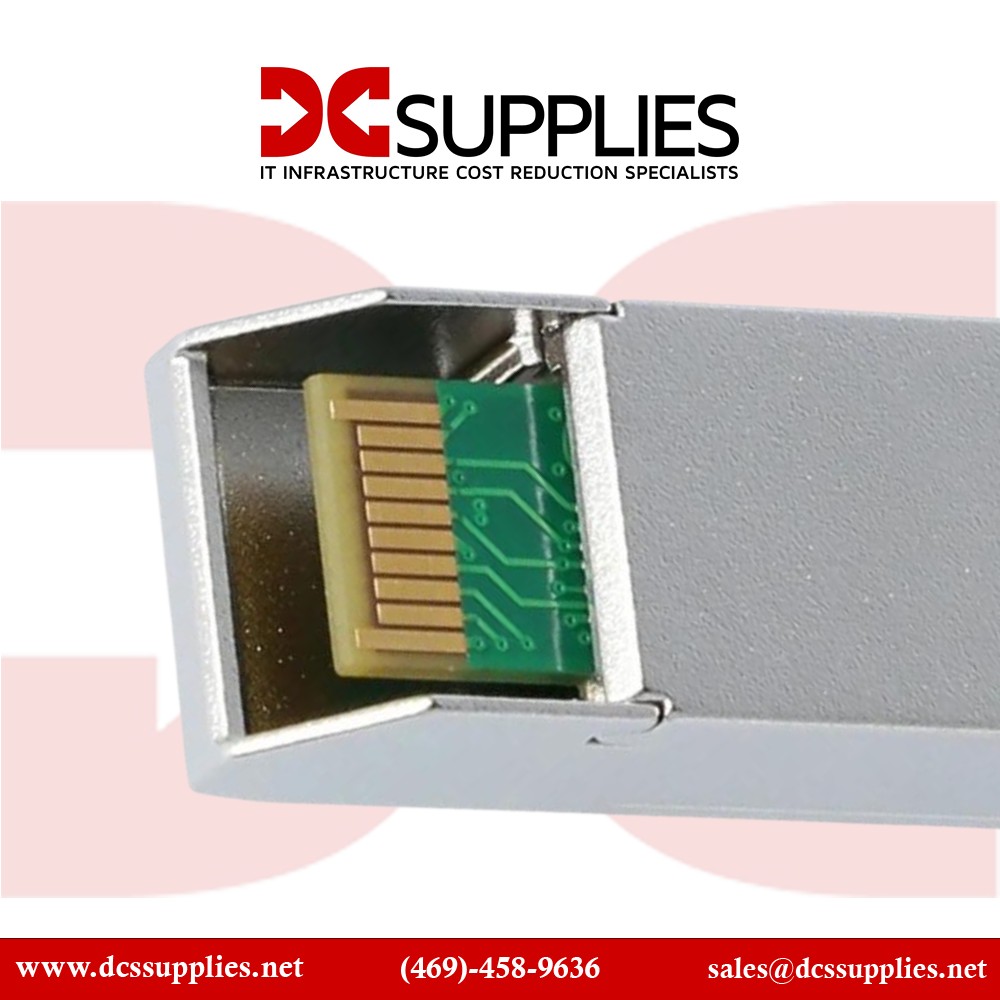

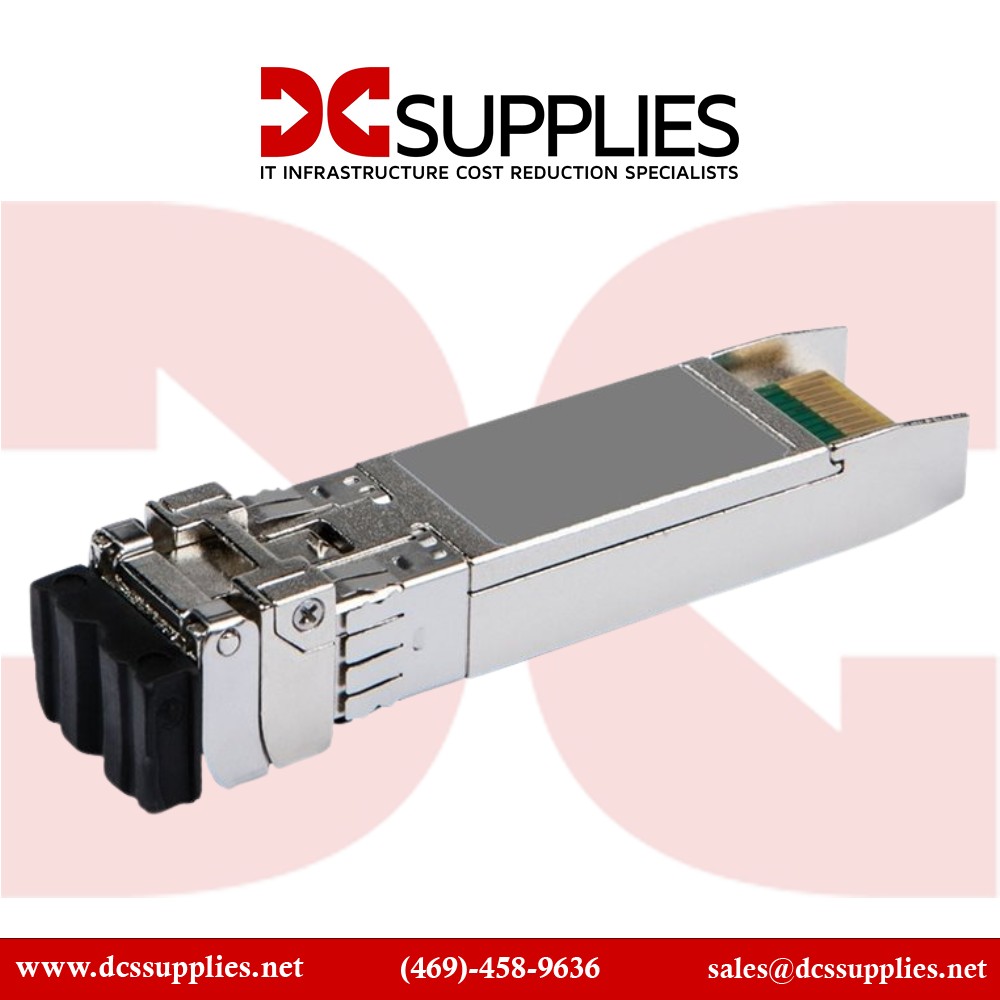

ENET JL783A-ENC HP Aruba Compatible Aruba 10G SFP+ LC LR SMF Transceiver

JL783A-ENC

New

10 Gigabit single-mode fiber transceiver with 10km reach, industrial temp
×




Detailed Specifications

ENET JL783A-ENC

HP Aruba Compatible Aruba 10G SFP+ LC LR SMF Transceiver

An industrial-grade 10G SFP+ transceiver for long-distance, harsh-environment networking.

Overview :

The ENET JL783A-ENC is an HP Aruba compatible 10G SFP+ transceiver designed for long-reach single-mode fiber applications. Engineered for industrial temperature environments, it reliably delivers 10 Gigabit Ethernet connectivity over distances up to 10 kilometers, suitable for enterprise, data center, and metro networks. This transceiver module supports the 10GBASE-LR standard for 10 Gigabit Ethernet over single-mode fiber. Utilizing a 1310 nm Distributed Feedback (DFB) laser and a PIN photodiode receiver, it ensures superior performance and low signal attenuation over long distances.

Features :

The duplex LC connector facilitates standardized fiber optic connections. With a robust industrial temperature rating of -45°C to +85°C, this module is built for harsh environments, including outdoor or uncontrolled spaces often encountered in industrial or telecom settings. It supports data rates from 1.25 Gbps up to 10.31 Gbps, making it versatile for various network protocols including STM-64 and Gigabit Ethernet. The built-in Digital Diagnostic Monitoring enables real-time feedback on operational parameters, helping maintain system health and reducing downtime.

Product Key Features

  • Supports 10GBASE-LR Ethernet up to 10.31 Gbps.
  • Operates over single-mode fiber (SMF) with duplex LC connector.
  • Maximum transmission distance of 10 kilometers.
  • 1310 nm DFB laser transmitter and PIN photodiode receiver.

Reliability & Performance :

Manufactured to meet stringent quality standards including CE, RoHS, and laser safety certifications, the JL783A transceiver guarantees durability and reliable operation across a broad temperature range. Its hot-pluggable SFP+ form factor allows for easy network upgrades or replacements without interruption. Tested extensively for compatibility with HP Aruba platforms, this module ensures seamless integration and dependable performance in diverse IT infrastructures.

Key Features :

Specifications :

SpecificationDetails
Model Number JL783A-ENC
Product Type 10GBASE-LR SFP+ Transceiver Module
Data Rate 1.25 - 10.31 Gbps
Maximum Distance 10 kilometers
Wavelength 1310 nm
Form Factor SFP+ (Small Form-factor Pluggable Plus)
Interface Duplex LC optical connector
Transmitter Type DFB laser
Receiver Type PIN photodiode
Operating Temperature -45°C to +85°C (Industrial Temp)
Power Supply +3.3 V
Compliance CE, RoHS, Class 1 Laser Safety, MSA
Digital Diagnostics Supported (DDM/DOM)
