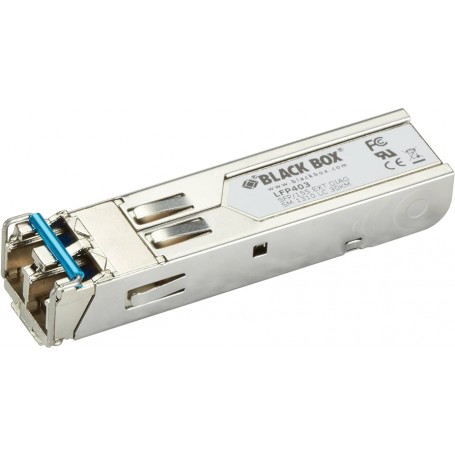

Black Box LFP403 SFP/155 Extended Diag SM 1310 LC 60KM View larger
Previous Next

Black Box LFP403 SFP/155 Extended Diagnostics SM 1310 LC 60KM SFP

New

In Stock

Black Box LFP403 SFP: 155Mbps single-mode, 1310nm, 60km transceiver with diagnostics.
×




$74.58

  • New

Detailed Specifications

Black Box LFP403

SFP/155 Extended Diagnostics, SM 1310nm LC, 60KM SFP Transceiver Module

The Black Box LFP403 is a high-performance SFP transceiver module designed for 155 Mbps single-mode fiber applications. Operating at 1310nm wavelength and supporting distances up to 60 km, it is ideal for telecom, metro, and enterprise backbone networks. With Extended Digital Diagnostics Monitoring (DDM), it offers administrators insight into optical parameters to maximize uptime and reliability.

As an official Black Box component, the LFP403 ensures seamless integration into optical networks, providing stable long-distance connectivity with low error rates, making it perfect for mission-critical environments.

Features :

This SFP Module is hot-swappable, compact, and fully standards-compliant. It supports SONET/SDH and Fast Ethernet over fiber, with diagnostics for monitoring temperature, voltage, laser bias, and receive/transmit power levels.

Advanced Options :

The LFP403 is engineered for carrier-grade long-haul deployments. Its diagnostics support proactive network maintenance, while the rugged design ensures stability in demanding operational conditions. Hot-swap capability minimizes downtime during deployment or replacement.

Product Key Features

  • Supports up to 155 Mbps line speed
  • 60 km reach over single-mode fiber (SMF)
  • LC duplex connector interface
  • 1310nm wavelength operation
  • Extended Digital Diagnostics Monitoring (DDM)
  • Hot-swappable SFP design
  • Backed by Black Box quality

Reliability & Performance :

The Black Box LFP403 delivers highly reliable long-distance fiber connectivity with proactive diagnostics that allow administrators to monitor link conditions. Designed for continuous enterprise and carrier-class workloads, it ensures secure, high-availability optical transport.

Key Features :

  • SFP module supports 155 Mbps over SMF
  • Extended reach up to 60 km
  • DDM diagnostics for link health
  • Rugged, hot-swappable design
  • Fully compliant with ITU/IEEE standards
  • Certified by Black Box

Specifications :

SpecificationDetails
Part Number LFP403
Brand Black Box
Product Type SFP Transceiver Module
Form Factor SFP (Small Form-factor Pluggable)
Data Rate 155 Mbps
Fiber Type Single-Mode Fiber (SMF)
Maximum Distance Up to 60 km
Wavelength 1310 nm
Connector LC duplex
Standards IEEE 802.3, SONET/SDH compliant
Diagnostics Extended DDM (Temp, Voltage, Bias, Tx/Rx levels)
Hot-Pluggable Yes
Operating Voltage 3.3 V
Power Consumption < 1W typical
Enclosure Metal EMI-shielded housing
Operating Temperature 0°C to +70°C
Storage Temperature -40°C to +85°C
MTBF Over 1,000,000 hours
Application Telecom, Metro, Enterprise long-haul links
Warranty Backed by Black Box warranty
