Dell R750XA PowerEdge Rack Server View larger

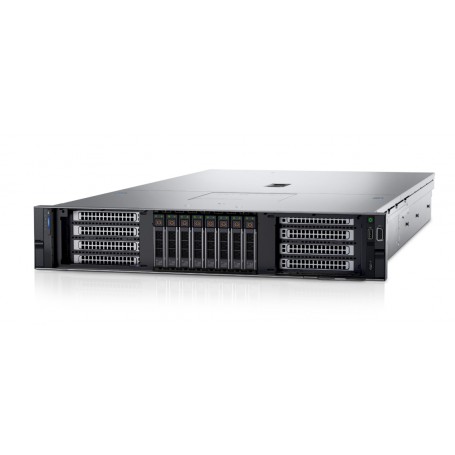

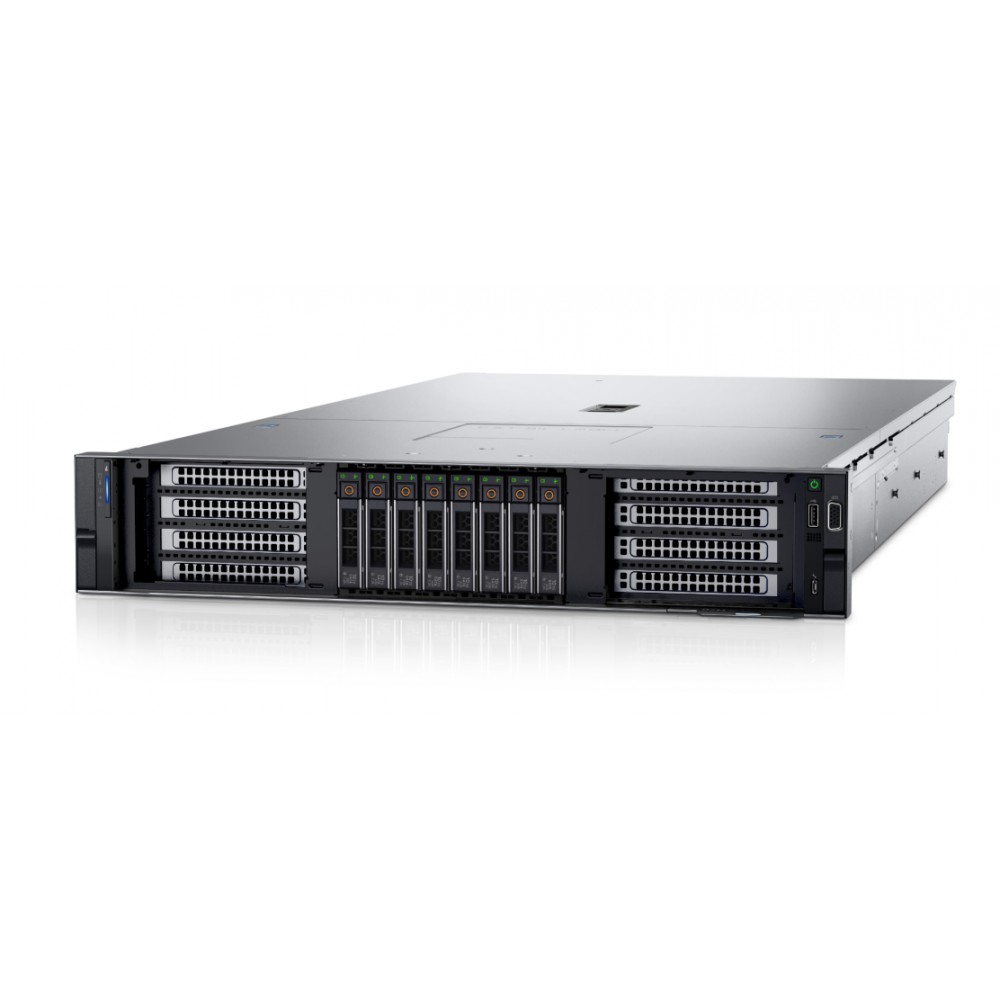

Dell R750XA PowerEdge Rack Server

R750xa

New

Dell R750XA  PowerEdge Rack Server
×




Rack Server, dell server, intel xeon server, power edge server, R750xa, dell r750xa, dell r750xa technical guide, dell r750xa manual, dell r750xa price, dell poweredge r750xa rack serve, customize server, dell customize server, R750XA specs, R750XA manual

Detailed Specifications

Dell R750XA  PowerEdge Rack Server

Overview :

The Dell PowerEdge R750xa, powered by the 3rd Generation Intel® Xeon® Scalable processors, is a dual-socket/2U rack server that delivers outstanding performance for the most demanding emerging and intensive GPU workloads. It supports 8 channels/CPU, up to 32 DDR4 DIMMs @ 3200 MT/s DIMM speed. In addition, to address substantial throughput improvements the PowerEdge R750xa supports PCIe Gen 4 and up to 8 SAS/SATA SSD or NVMe drives. With one platform that supports all of the PCIe GPUs in the PowerEdge portfolio, this makes the PowerEdge R750xa the ideal server for emerging workloads including AI-ML/DL Training and Inferencing, High-

Specifications :

MEMORY
  • 32x DDR4 DIMM slots
  • 6-channel memory architecture per processor
  • Maximum memory RDIMMs: 2TB
  • Maximum memory LRDIMMs: 4TB
  • Maximum memory DCPMM: Up to 16x DIMMs with up to 8TB
  • Speed: Up to 3200MT/s
STORAGE
      Front Bays

  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 6 x 2.5-inch NVMe (SSD) direct-attach max 92.1 TB
GPU OPTIONS
  • Up to 4x single-width 150 W or;
  • 4x double-width 300W in the front and 2x single-width 75W at the rear
EXPANSION SLOTS
  • Up to 8 x PCIe Gen4 slots (up to 6 x16 + 2 x8)
  • 1 x OCP 3.0 (x8 PCIe lanes)
CONTROLLERS
  • Internal Controllers: PERC H745, HBA355I, S150, H345, H755, H755N
  • External Controllers: PERC H840, HBA355E
  • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB
