Detailed Specifications

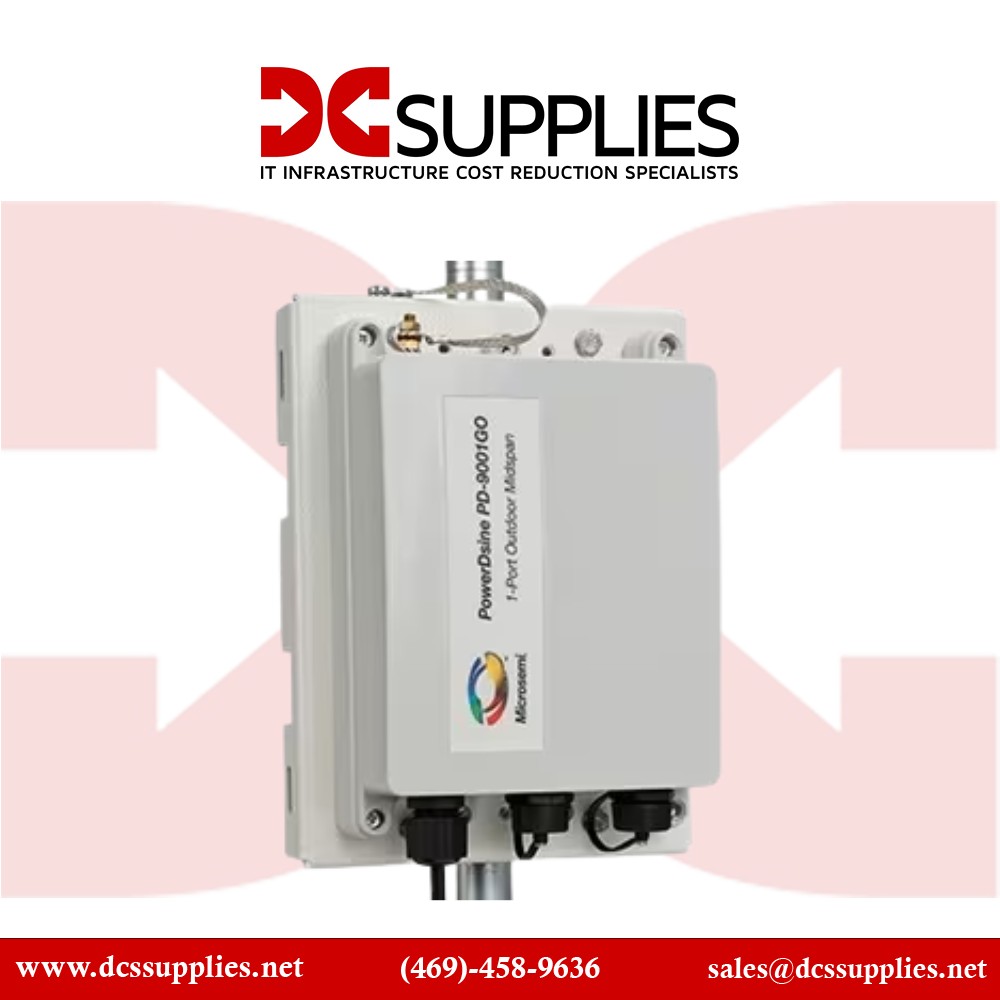

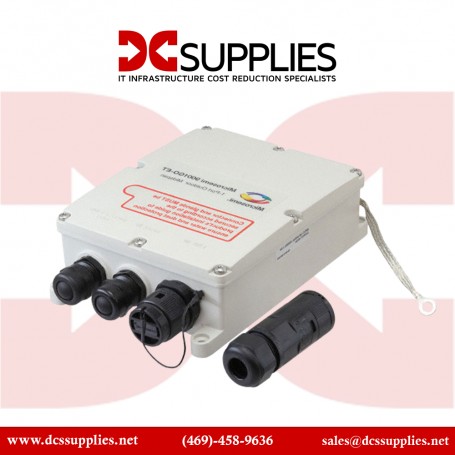

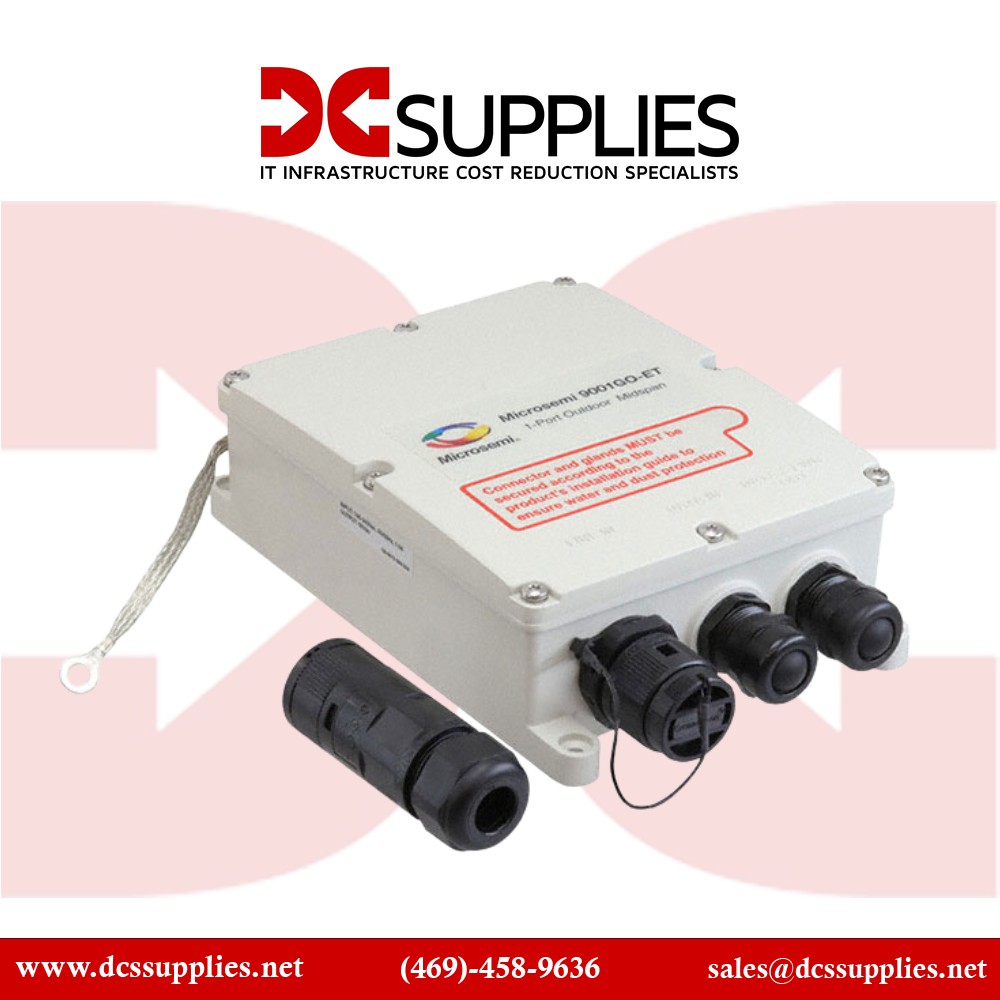

Extreme Networks PD-9001GO-ENT Inc. Outdoor 802.3AT PoE 1 Port Midspan
Overview :
Microsemi's PD-9001GO Power over Ethernet (PoE) single-port midspan offers a cost effective, fully IEEE 802.3af/802.3at compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9001GO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
Specifications :
Product Name |
Outdoor 802.3AT PoE 1 Port Midspan |
Manufacturer Part Number |
PD-9001GO-ENT |
Product Type |
PoE Injector |
Output Ports |
1 x 10/100/1000Base-T |
Mount Type |
Pole/Wall-mountable |
Environmentally Friendly |
Yes |
Maximum Output Power |
30 W |
Maximum Output Voltage |
55 V DC |
Minimum Output Current |
1 A |
Height |
2.8" |
Width |
8.4" |
Depth |
5.9" |
Input Ports |
1 x 10/100/1000Base-T |
Form Factor |
External |
Product Model |
PD-9001GO |
Protection Type |
Surge Protection |
Input Voltage |
120 V AC
230 V AC
|
Limited Warranty |
1 Year |
Maximum Frequency |
60 Hz |
Minimum Frequency |
50 Hz |
Stock Details |
Manufacturer |
Extreme Networks Inc. |
Manuf Part# |
PD-9001GO-ENT |
