Detailed Specifications

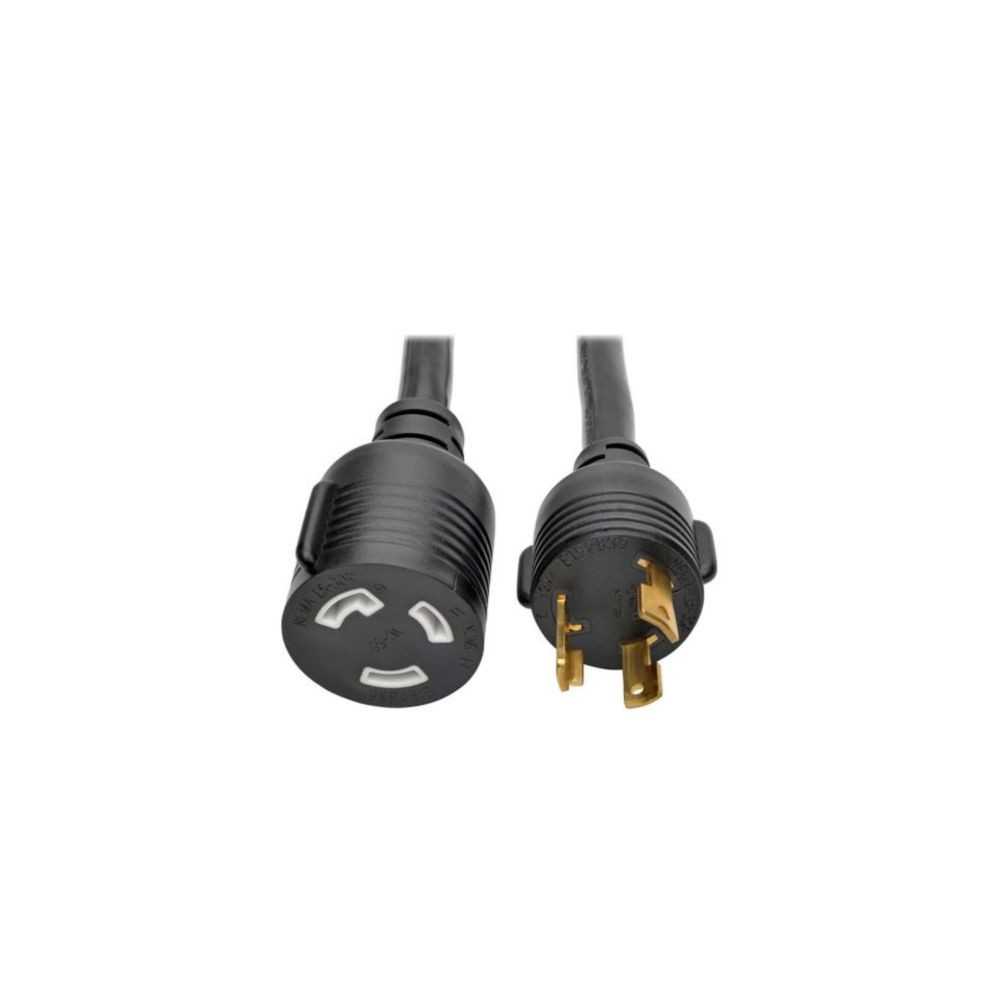

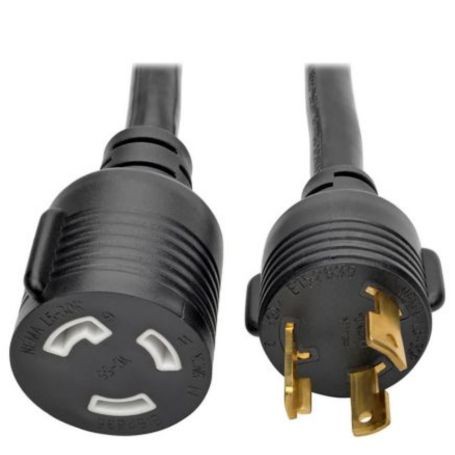

Eaton P046-010-LL-30A Tripp Lite 10ft Power Extension Cord NEMA L5 30P NEMA L5 30R
Overview
The Eaton Tripp Lite P046-010-LL-30A is a heavy-duty 10 ft power extension cord with a NEMA L5-30P male plug and NEMA L5-30R female receptacle. It is designed for extending power connections for servers, computers, network equipment, PDUs and UPS systems requiring a 30A connection.
The cord uses three 10 AWG conductors and is rated for 30A at 125VAC. Both connectors incorporate a locking design to help maintain a secure connection and reduce the risk of accidental power interruption in equipment installations.
The 10 ft length provides additional reach between equipment and power-distribution equipment. It is appropriate for compatible NEMA L5-30 connections and circuits rated for the required load; it should not be substituted for a higher-voltage or differently configured connection.
Key Features
- Locking L5-30P to L5-30R connection helps prevent disconnects
- 10 AWG conductors support the specified 30A power rating
- 10 ft length provides extended rack and equipment reach
- SJT construction with PVC jacket supports heavy-duty use
- UL and cUL listings support applicable North American installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P046-010-LL-30A |
| Product Type | Heavy-duty power extension cord |
| Connector A | NEMA L5-30P male |
| Connector B | NEMA L5-30R female |
| Current Rating | 30A |
| Voltage Rating | 125VAC |
| Cable Length | 10 ft (3.05m) |
| Wire Gauge | 10 AWG |
| Number of Conductors | 3 |
| Cord Type | SJT |
| Shielding | Unshielded |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Outer Cable Diameter | 14.6mm |
| Cable Color | Black |
| Connector Style | Straight |
| Locking Feature | Locking plug and receptacle |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -10°C to 60°C |
| Operating Humidity | 35%-85% RH, non-condensing |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
| Device Compatibility | UPS, PDU, computer, server, network devices |
| Warranty | Lifetime limited warranty |
