Detailed Specifications

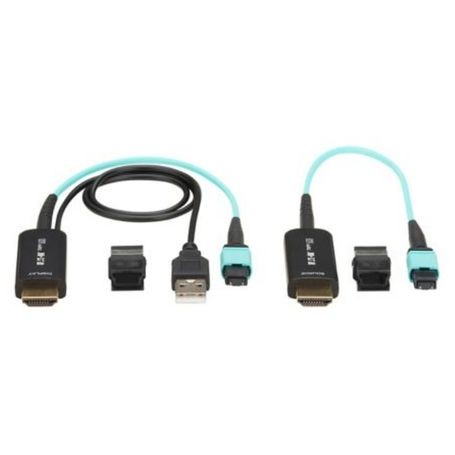

Eaton P568-000-FBR Tripp Lite HDMI Fiber Extender Termination Kit for MPO Fiber Optic Cable
Overview
The Eaton Tripp Lite P568-000-FBR is an HDMI fiber extender termination kit designed to transmit HDMI video over MPO fiber. It is intended for professional installations where the source and display are separated by long distances. Eaton specifies applications including data centers, medical imaging, security, surveillance, and other professional A/V environments.
The kit supports bandwidth up to 18 Gbps and UHD 4K resolution at 60 Hz with 4:4:4 chroma and HDR. It uses male 12-fiber MPO connectors and includes two MPO adapters for completing the fiber connection.
It is appropriate where an MPO fiber infrastructure is available and a long-distance HDMI connection is required. It should not be selected as a conventional HDMI cable because it is a termination kit that requires compatible MPO fiber infrastructure.
Key Features
- Supports 4K video at 60 Hz over MPO fiber infrastructure
- 18 Gbps bandwidth handles high-detail HDMI signals
- MPO fiber extension reaches up to 328 ft (100 m)
- HDR and 4:4:4 chroma support preserve video quality
- LSZH construction suits professional installation environments
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P568-000-FBR |
| Product Type | HDMI Fiber Extender Termination Kit |
| Technology | HDMI over Fiber |
| Extension Method | MPO Fiber |
| Maximum Signal Range | Up to 328 ft (100 m) |
| Maximum Resolution | 3840 × 2160 at 60 Hz |
| Bandwidth | Up to 18 Gbps |
| Chroma Subsampling | 4:2:0, 4:2:2, 4:4:4 |
| HDR Support | Yes |
| Color Depth | 36-bit Deep Color |
| HDCP Specification | 1.4 |
| Source Connector | HDMI Male |
| Fiber Connector | 12F MPO Male |
| USB Connector | USB-A Male |
| Cable Jacket Rating | LSZH |
| Cable Outer Diameter | 3.0 mm |
| Operating Temperature | 14° to 131°F (-10° to 55°C) |
| Operating Humidity | 10% to 85% RH, Non-Condensing |
| Power Provided | 5 V |
| Compliance | RoHS, FCC Class B, UKCA, CE Marked |
