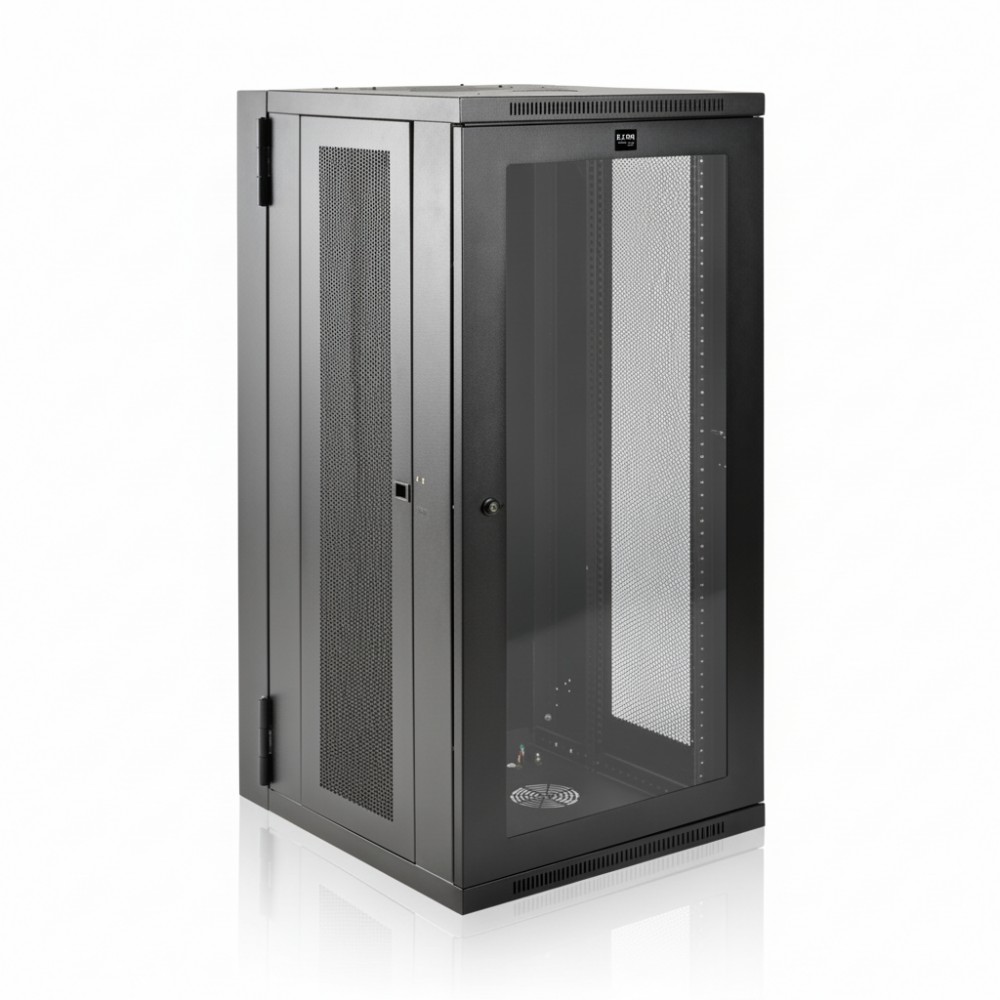

Eaton SRW26USDPG - 26U Wall-Mount Rack Enclosure
Overview
The Eaton SRW26USDPG is a wall-mountable 19-inch rack enclosure designed to securely house network and IT equipment where floor footprint is constrained. It is deployed by network architects and infrastructure engineers in wiring closets, branch offices, classrooms, and retail backrooms to organize and protect rack-mount gear while keeping equipment off the floor.
This cabinet supports 26U of EIA-310 rack space and accommodates equipment up to approximately 24.5 in (622 mm) deep, making it suitable for UPS systems, switches, patch panels, and associated cabling within shallow to mid-depth racks. Static load capacity is rated at 250 lb (113.4 kg), supporting moderate rack loads typical of branch deployments.
The SRW26USDPG integrates into standard structured cabling and rack ecosystems with adjustable vertical mounting rails, numbered rack spaces, and threaded mounting holes to align with EIA-310 equipment. Its swing-away wall bracket provides rear access for cabling and service, which reduces service time and physical strain during deployment and maintenance.
The front door includes a shatter-resistant clear acrylic window that permits visual monitoring of equipment status without unlocking, while locking steel side panels and a secure front door protect gear from tampering in shared or public spaces. Ventilation panels top, bottom, and sides facilitate natural airflow, aiding thermal management without requiring powered fans.
A practical deployment use case is mounting the cabinet in a constrained IDF room to host a rack UPS, access switch, and patch panels, with the hinged bracket providing quick access for punch-down and patching tasks. Cable entry/exit ports at top and bottom support structured cable routing to overhead trays or under-floor pathways.
This enclosure is not suitable for heavy 4-post server loads or deep equipment beyond ~24.5 in; it lacks floor-standing rigidity and airflow containment of full cabinets and should not be used where physical security (e.g., locking rear panels) or environmental isolation (dust/air filtration) is required.
Key Features
- 26U EIA-310 rack space with threaded mounting rails
- Swing-away wall bracket for rear-access serviceability
- Clear acrylic front door for equipment visibility
- Vented steel panels for passive airflow cooling
- 250 lb (113 kg) static load capacity
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRW26USDPG |
| Product Type | Wall-Mount Rack Enclosure Cabinet |
| Rack Height | 26U |
| Rack Standard | EIA-310 19-inch |
| Maximum Equipment Depth | 24.5 in (622 mm) |
| Static Load Capacity | 250 lb (113.4 kg) |
| Mounting Type | Wall-mounted enclosure |
| Frame Design | Swing-away wall bracket |
| Front Door | Locking with clear acrylic window |
| Side Panels | Lockable, vented steel |
| Material | Steel |
| Finish | Black powder coat |
| Cable Access | Top and bottom openings |
| Vertical Rails | Threaded 12-24 with numbered U |
| Overall Dimensions (HxWxD) | 49.63 × 23.62 × 27.56 in |
| Weight | 123.7 lb (56 kg) |
| Compliance | EIA-310, IEC 60297-3, RoHS |
| Ventilation | Passive vents top/bottom/sides |
