Kioxia KCD8XRUG15T3 SSD 15.36TB 2.5 PCIe4 CD8-R SIE 1 DWPD Bare

KIOXIA

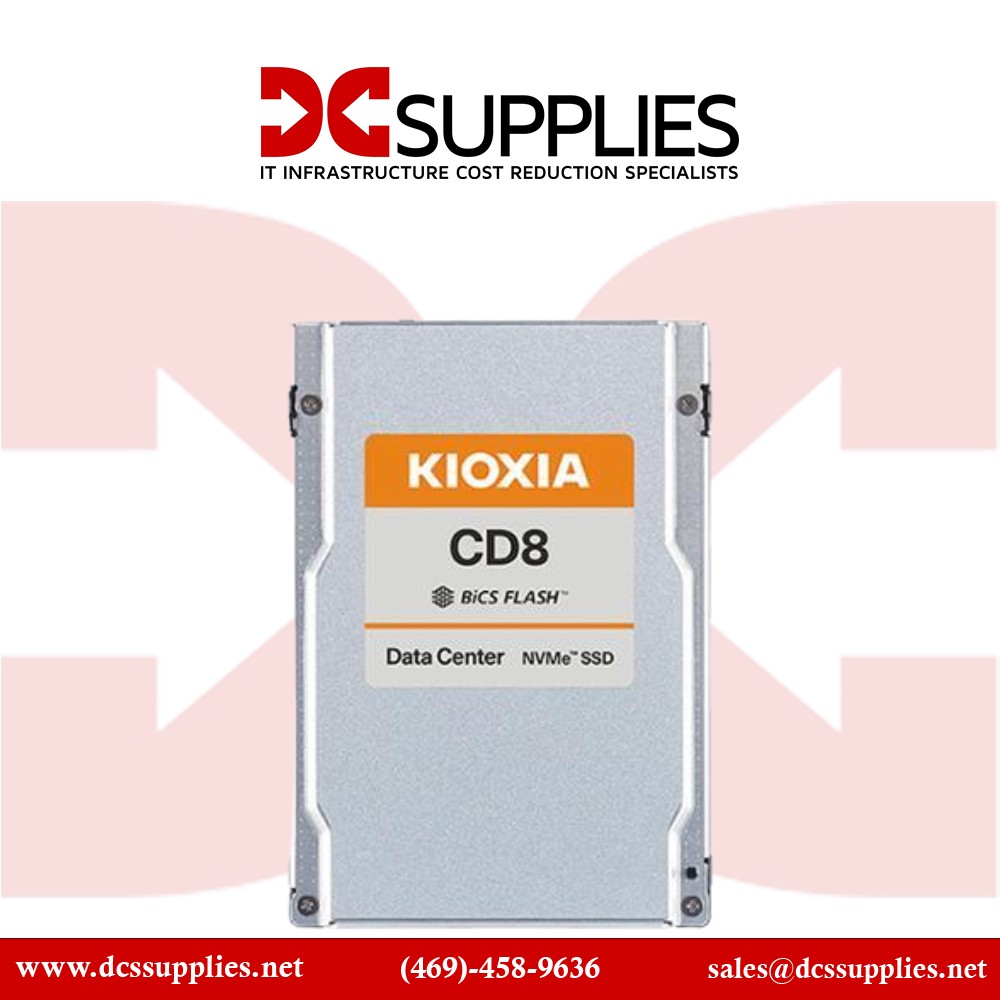

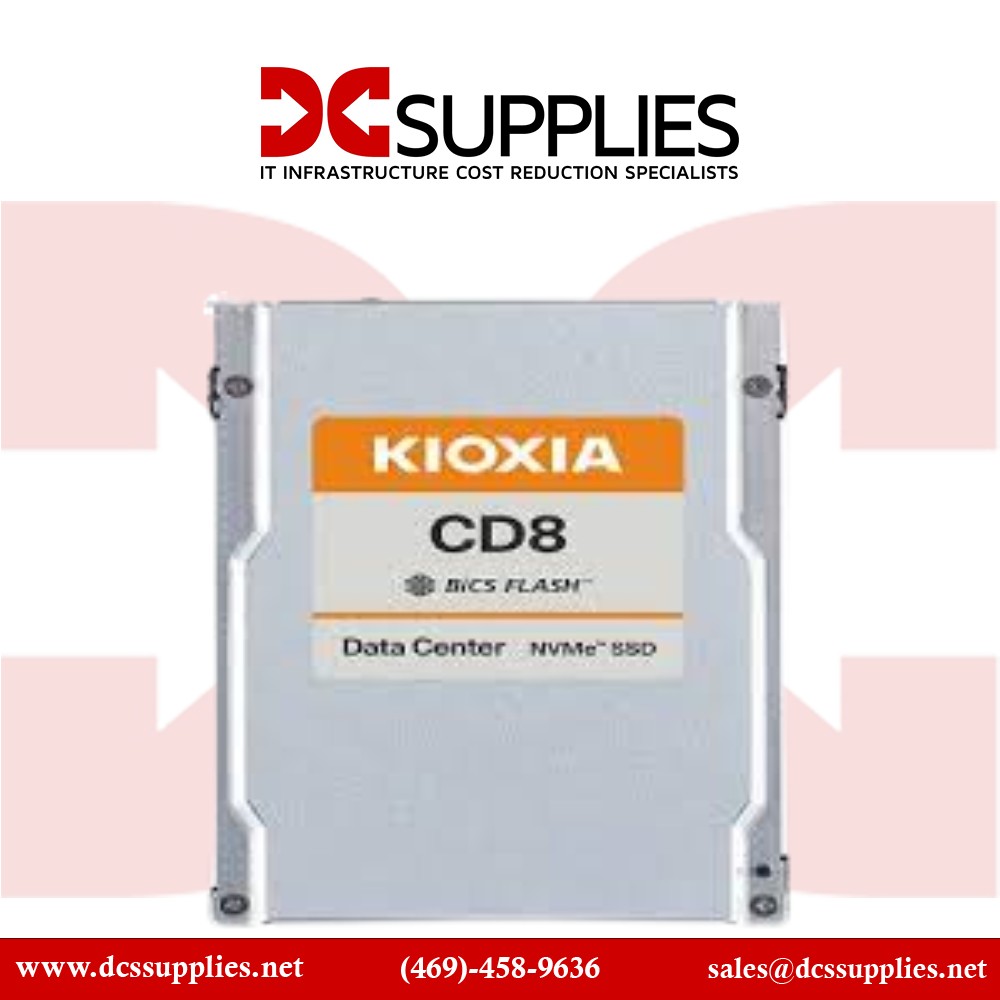

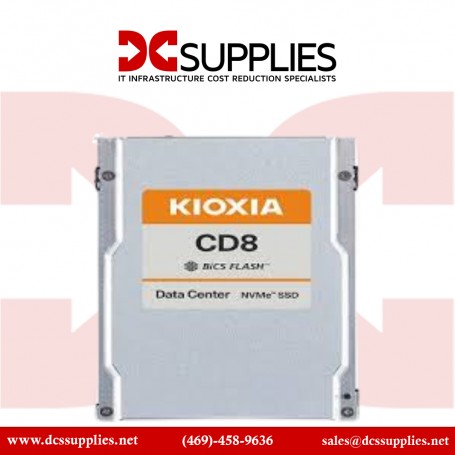

KCD8XRUG15T3 15.36 TB CD8-R PCIe 4.0 NVMe 2.5″ Enterprise SSD

The KIOXIAKCD8XRUG15T3 is a high-capacity, enterprise-grade NVMe SSDoffering 15.36 TB of storage in a 2.5″ (15 mm) form factor. Part of the CD8-R series, it uses PCIe 4.0 x4 (NVMe 1.4) to deliver up to 6,600 MB/s sequential reads and 6,000 MB/s writes. With a 1 DWPD endurance rating and designed for read-intensive, scale-out workloads, this drive is ideal for hyperscale data centers, cloud applications, and high-throughput virtualization environments.

Features

The CD8-R series is optimized for scale-out architectures, IoT, OLTP, virtualized infrastructure, and streaming workloads, delivering reliable performance under heavy read patterns. With a standardized 2.5″, 15 mm profile and support for U.2/U.3 connectors, it provides compatibility with existing data center enclosures while maximizing capacity in dense deployments. Built-in end-to-end data protection, power loss protection (PLP), and optional security features such as Sanitize Instant Erase (SIE) or Self-Encrypting Drive (SED) ensure compliance and data integrity in enterprise-class settings

Advanced Options

Created to deliver consistent performance, the KCD8XRUG15T3 incorporates 112-layer BiCS Flash 3D TLC and enterprise-grade power-loss protection and ECC. Built to handle demanding 24/7 service conditions, this SSDprovides dependable storage density and predictable behavior for data-intensive operations.

Product Key Features

1. 15.36 TB capacity in a 2.5″ (15 mm) form factor

2. PCIe 4.0 x4 (NVMe 1.4) interface supporting up to 64 GT/s

3. High endurance: 1 Drive Write Per Day (DWPD) over five years

4. Sequential read/write speeds up to 6,600 / 6,000 MB/s respectively

5. Power-loss protection, ECC, and optional SIE/SED security

---

Reliability & Performance

This KIOXIASSDis engineered for high-density, mission-critical workloads with consistent performance and endurance for 24×7 operations. Its 1 DWPD rating supports full-drive rewrites daily over the warranty period, making it dependable for read-heavy data center use. With a reliability rating of 2.5 million hours MTTF and enterprise-grade PLP and end-to-end ECC, it minimizes data loss risk. The inclusion of optional security features (SIE and SED) further enhances compliance in regulated environments

Key Features

• Enterprise 2.5″ NVMe SSD, PCIe 4.0 ×4

• 15.36 TB of high-density storage

• Read-intensive design, 1 DWPD endurance

• Ultra-fast sequential and random performance

• PLP, ECC, and optional secure erase/encryption

Specifications :

Product Specifications

Specification	Detail
Model Number	KCD8XRUG15T3
Series	CD8-R
Capacity	15.36 TB
Interface	PCIe 4.0 ×4, NVMe 1.4
Flash Type	112-layer BiCS Flash 3D TLC
Sequential Read (128 KiB)	Up to 6,600 MB/s
Sequential Write (128 KiB)	Up to 6,000 MB/s
Random Read (4 KiB)	~1,050,000 IOPS
Random Write (4 KiB)	~195,000 IOPS
Endurance	1 DWPD over 5-year warranty
Power Consumption (Active)	~20 W typical
Form Factor	2.5″ × 15 mm
Dimensions (W × L × H)	~69.85 × 100.45 × 15 mm
Weight	~130 g
Reliability	MTTF ~2.5 million hours
Security Options	SIE / SED (optional)
Warranty	5 years
