Detailed Specifications

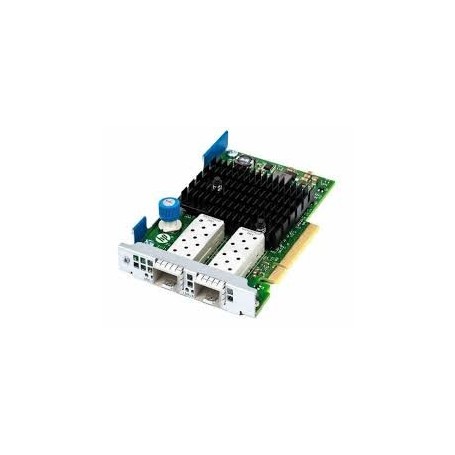

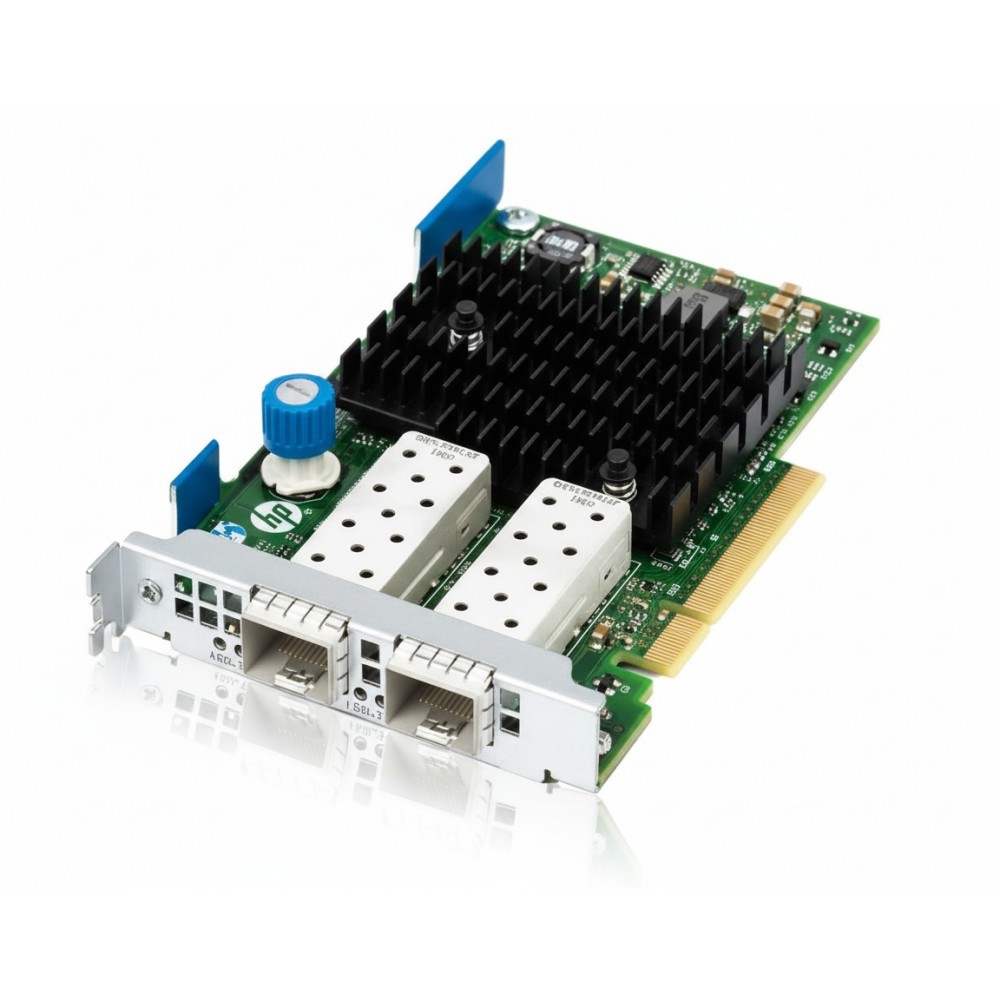

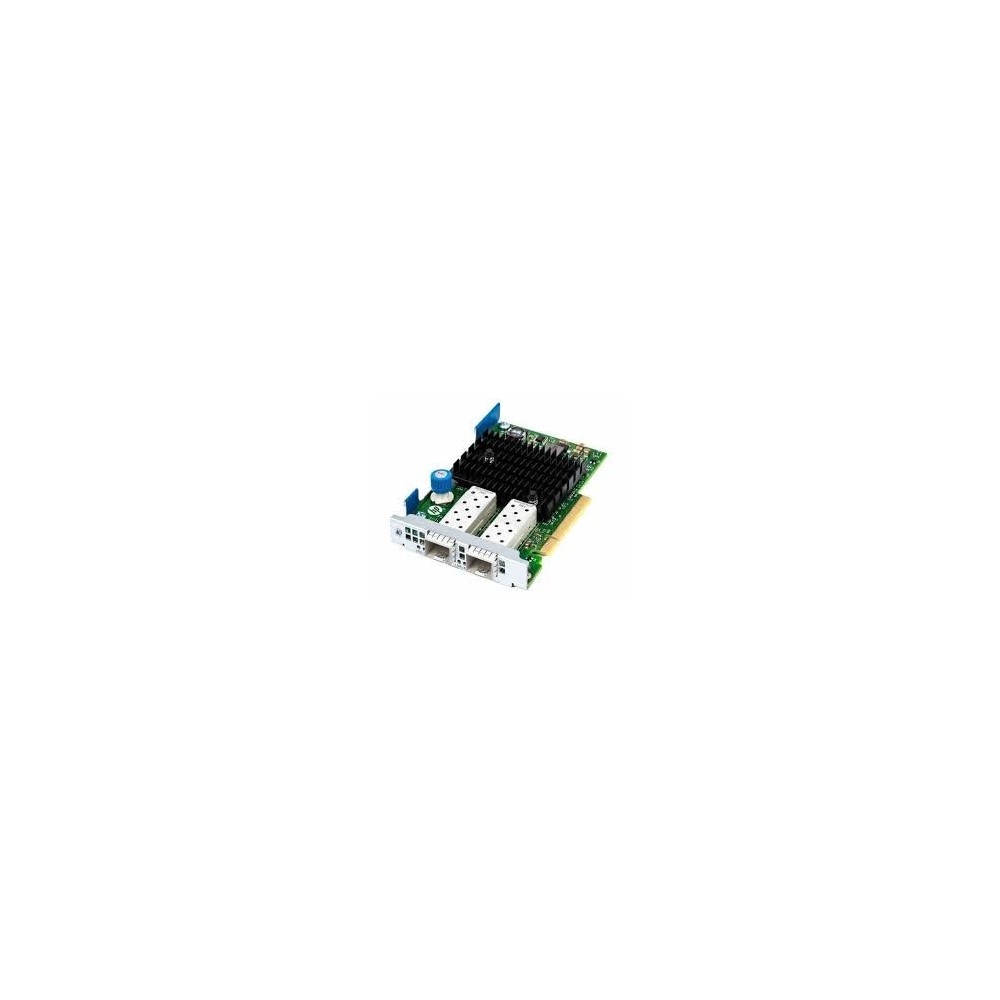

HPE 560FLR 10Gb 2-Port FlexibleLOM SFP+ Adapter
Overview
The HPE 560FLR is a 10 Gigabit Ethernet network adapter in a FlexibleLOM form factor, optimized for HPE ProLiant Gen8 and newer servers. It provides two SFP+ ports for either fiber or DAC connections, delivering 10 Gb/s per port and a combined throughput of up to 40 Gb/s. The adapter supports virtualization features, offloads, and efficient I/O operations, making it ideal for virtualized data centers, HPC, and clustered workloads.
Key Features
Two 10 Gb/s SFP+ ports (fiber or direct-attach)
FlexibleLOM (FLR) form factor for embedded server integration
Intel 82599 controller with advanced offload capabilities
Supports SR-IOV, VLAN tagging, NIC teaming, Jumbo Frames
PXE boot, Wake-on-LAN, and virtualization support (VMQ / NetQueue)
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Model | 560FLR-SFP+ |
| Host Interface | PCI Express 2.0 ×8 (FlexibleLOM slot) |
| Network Ports | 2 × 10 Gb SFP+ |
| Controller / ASIC | Intel 82599 |
| Throughput | 20 Gb/s full duplex per port (40 Gb/s aggregate) |
| Virtualization Support | SR-IOV (requires firmware / OS support) |
| Offload Features | TCP/UDP checksum, LSO / TSO, RSS, VLAN, Jumbo Frames |
| MTU (Jumbo Frames) | Up to 9.5 KB (9,500 bytes) |
| PXE Boot | Yes |
| Wake-on-LAN | Supported (1 Gb only on Port 1) |
| Power Consumption | < 12 W typical |
| Operating Temperature | 0 °C to 55 °C |
| Compatible Servers | HPE ProLiant Gen8 / Gen9 / Apollo servers |
