Detailed Specifications

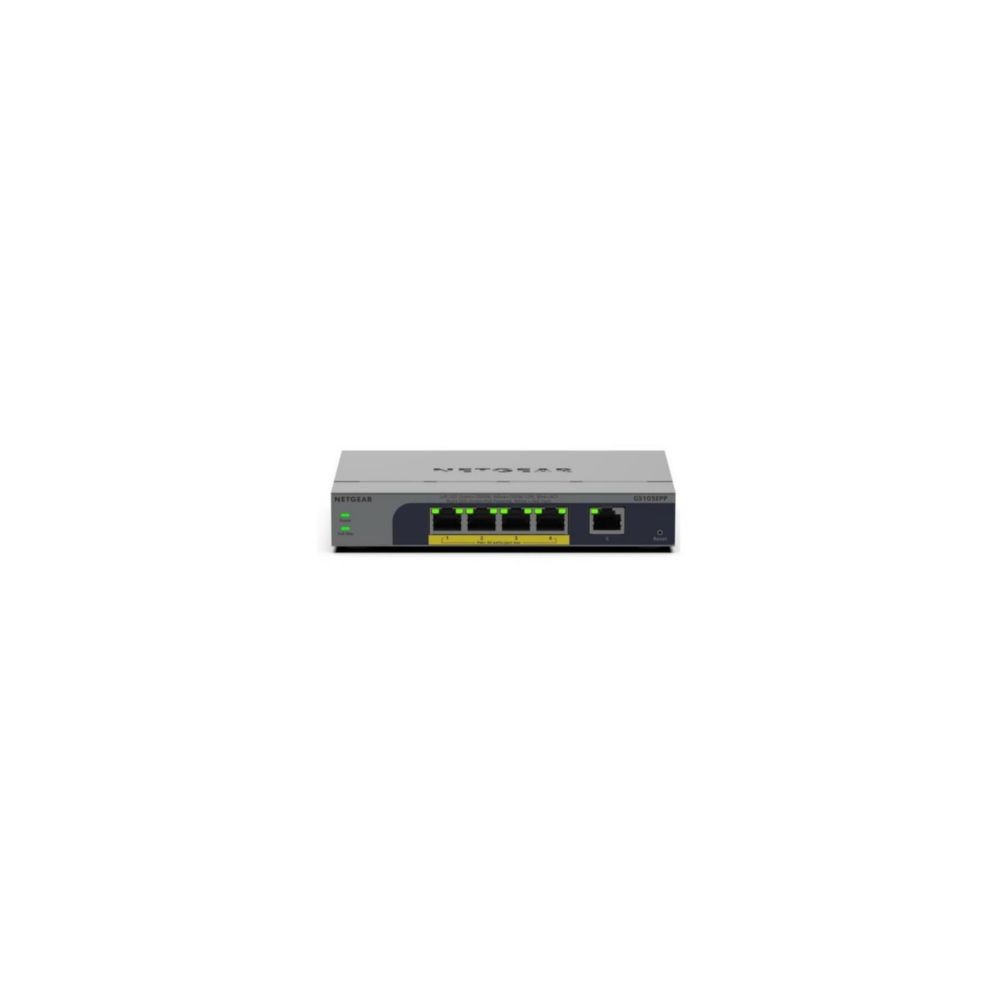

NETGEAR GS105EPP-100NAS 5-Port Gigabit PoE Easy Smart Switch
Overview :
The NETGEAR GS105EPP-100NAS is a 5-port Gigabit Ethernet Easy Smart switch with four PoE+ ports. It is designed for small business, branch, edge, surveillance, access-point, and VoIP deployments requiring both network connectivity and local PoE power. NETGEAR identifies the -100NAS version for North America and Latin America.
Four ports support IEEE 802.3at PoE+ with up to 30 W per port and a total PoE budget of up to 120 W. All five ports provide 10/100/1000BASE-T connectivity, with a 10 Gb/s switching capacity.
The switch provides VLAN and QoS management, PoE prioritization, per-port power limits, and PoE scheduling. Its fanless design and desktop or wall-mount installation make it suitable for compact edge deployments.
This model has no SFP fiber ports and is not rack-mountable. It should not be selected where fiber uplinks, rack-density requirements, or more than 120 W of total PoE power are required.
Key Features :
- Four PoE+ ports deliver up to 30 W per port
- 120 W PoE budget supports multiple powered devices
- Five Gigabit RJ45 ports provide 10/100/1000 connectivity
- VLAN and QoS controls support managed edge networks
- Fanless chassis enables quiet desktop or wall deployment
Specifications :
| Specification | Verified Value |
|---|
| Brand | NETGEAR |
| Part Number | GS105EPP-100NAS |
| Product Type | 5-Port Gigabit PoE+ Easy Smart Switch |
| Ethernet Ports | 5 × 10/100/1000BASE-T RJ45 |
| PoE+ Ports | 4 |
| PoE Standard | IEEE 802.3at |
| PoE Power per Port | Up to 30 W |
| PoE Budget | Up to 120 W |
| Switching Capacity | 10 Gb/s |
| MAC Address Table | 2K |
| Packet Buffer | 192 KB |
| Jumbo Frame Support | 9,216 bytes |
| Management Features | VLAN, QoS, PoE controls |
| Form Factor | Desktop / Wall Mountable |
| Cooling | Fanless |
| Operating Temperature | 0-40°C |
| SFP Fiber Ports | None |
