AddOn AA1419002-E5-AO 1000B-LX GBIC XCVR F Avaya/Nortel

Addon

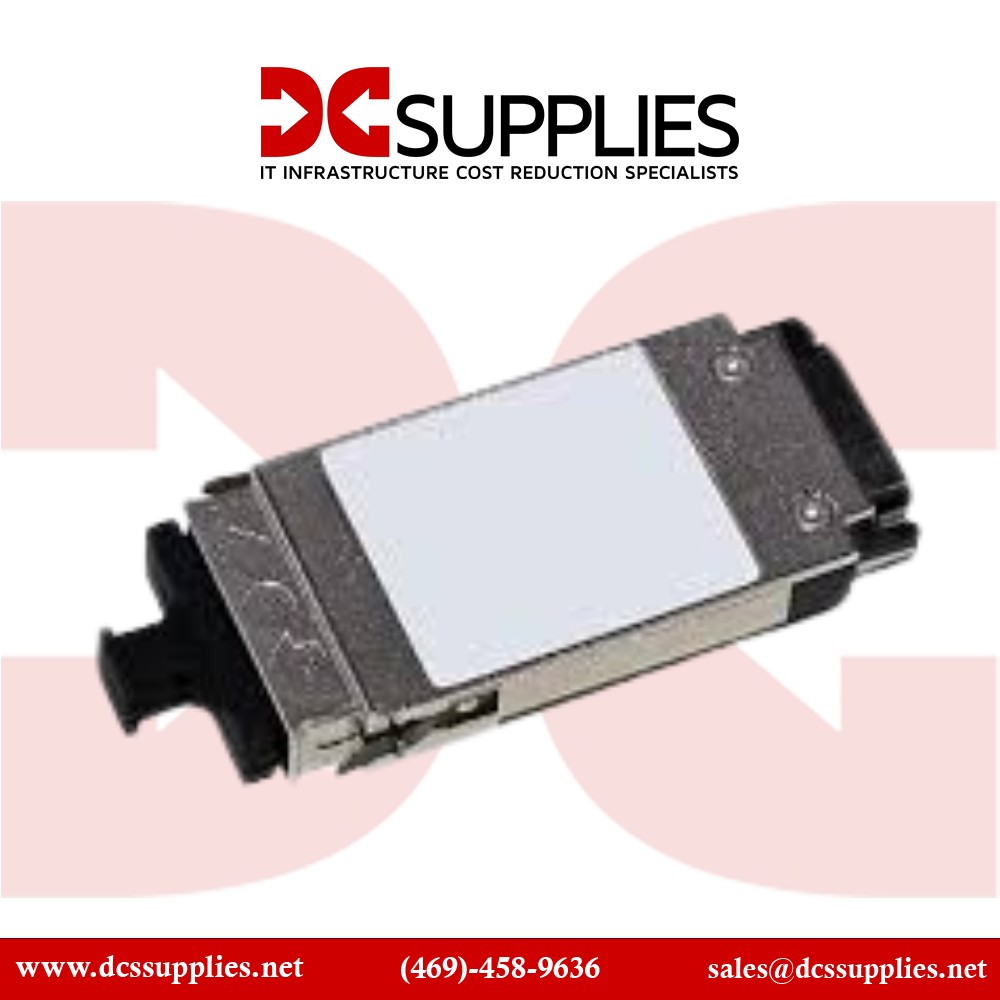

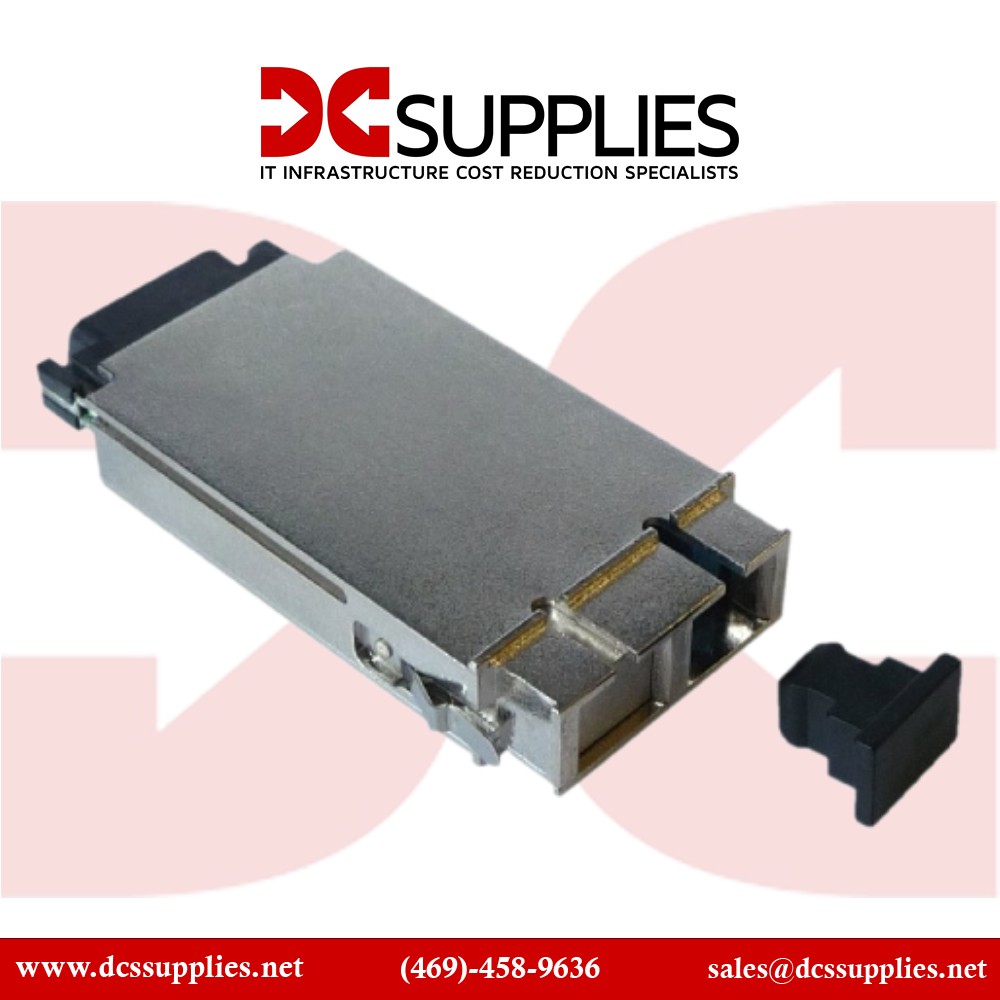

AA1419002-E5-AO - 1GBase-LX GBIC Transceiver module for Avaya/Nortel | SMF SC Connector | 10 km | TAA Compliant

The Addon AA1419002-E5-AO is a professional-grade 1 Gigabit Ethernet LX Transceiver module(1000Base-LX), custom-designed for Avaya and Nortel network platforms. Featuring an SC duplex connector and operating at the 1310 nm long-wavelength, this module supports single-mode fiber runs of up to 10 kilometers, making it ideal for campus, metro, and enterprise backbone applications. Fully compliant with TAA regulations and GBIC MSA standards, it is factory-programmed and serialized to replicate the OEM behavior×enabling seamless plug-and-play integration with no vendor lockout.

Features

Built for consistency, reliability, and compatibility, the AA1419002-E5-AO delivers reliable 1.25 Gbps full-duplex performance over single-mode fiber link lengths up to 10 km. Housed in a standard GBIC form factor, the unit supports hot-pluggable operation×allowing service or expansion without downtime. EEPROM encoding guarantees functional equivalence with Avaya/Nortel OEM transceivers, and pre-deployment testing ensures initialization, link status, and data path integrity mirror original modules.

Advanced Options

The module is produced under ISO 9001 certified manufacturing, with each unit undergoing BER validation, eye-pattern checking, and optical power margin testing. Diagnostic support via DDM/DOM provides real-time monitoring of transmit/receive power, temperature, voltage, and laser bias conditions×enabling network managers to detect and resolve issues proactively. Built to perform in EMI-prone or temperature-variable environments, this transceiver ensures operational stability across demanding deployment scenarios like enterprise campus backbones and redundant aggregation rings.

Product Key Features

• 1GBase-LX (1000Base-LX) optical GBIC module

• SC duplex connector for single-mode fiber (SMF)

• 1310 nm long-wave laser, 10 km maximum reach

• Hot-swappable GBIC form factor

• DDM diagnostics (power, voltage, temperature monitoring)

• Factory-programmed EEPROM for Avaya/Nortel OEM compatibility

• MSA and IEEE 802.3z compliant

• Low power consumption (~0.8-1.0 W typical)

• TAA compliant; RoHS certified

• Limited lifetime warranty

---

Reliability & Performance

Engineered to meet enterprise-grade reliability standards, the Addon AA1419002-E5-AO supports critical network links with high mean time between failures. Its long-wavelength optics deliver consistent performance over 10 km single-mode fiber links while maintaining signal integrity. Optical and electrical parameters such as jitter, power output, and sensitivity are factory-verified for compatibility with Avaya/Nortel hosts. The transceiver draws minimal power, reducing heat load and allowing dense module population in rack and chassis systems. Built-in DDM ensures administrators can monitor link health continuously, while rugged mechanical construction and EMI-resistant design deliver durability under diverse operating conditions. This module is particularly suited for legacy Avaya/Nortel gear where OEM replacements may be discontinued or cost-prohibitive.

Key Features (Bullet List)

• 1000Base-LX (1.25 Gbps) GBIC transceiver

• SC duplex connector for SMF

• 10 km transmission over single-mode fiber

• 1310 nm wavelength laser

• Hot-swappable insertion/removal

• Real-time DDM/DOM diagnostics support

• OEM EEPROM mapping for Avaya/Nortel compatibility

• GBIC MSA / IEEE 802.3z compliant

• Low power consumption (~1 W)

• TAA & RoHS certified; limited lifetime warranty

Specifications :

Product Specifications

Specification	Description
Model Number	AA1419002-E5-AO
Transceiver Type	1 GBase-LX (1.25 Gbps) GBIC module
Form Factor	GBIC
Connector	SC Duplex
Fiber Type	Single-mode Fiber (SMF)
Wavelength	1310 nm
Max Reach	Up to 10 km
Temperature Range	0 °C to 70 °C
DDM / DOM Support	Yes
Hot-Swappable	Yes
Power Consumption	~0.8-1.0 W
Compliance	GBIC MSA, IEEE 802.3z, RoHS, TAA
Compatibility	Fully compatible with Avaya/Nortel OEM transceivers
Warranty	Limited lifetime warranty
