Fortinet FWF-80F-2R-A Network security firewall appliance WiFi 6 View larger
Previous Next

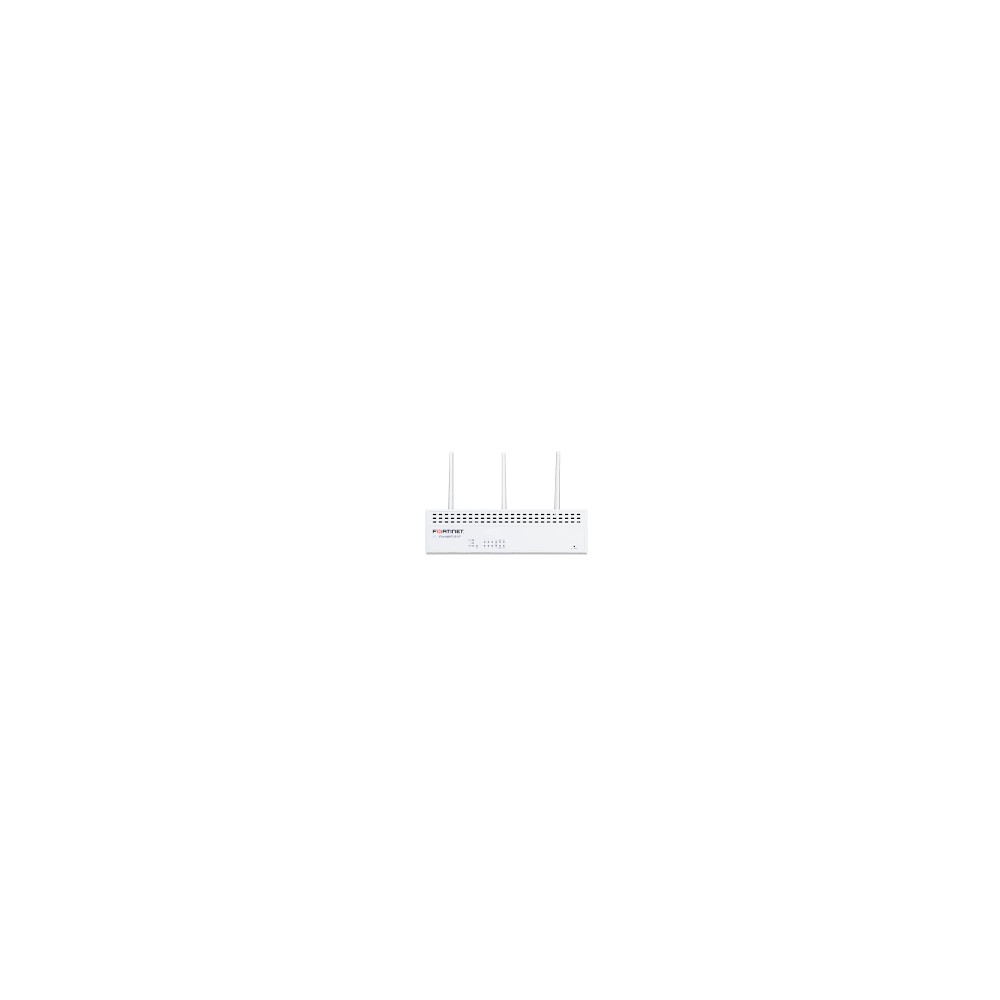

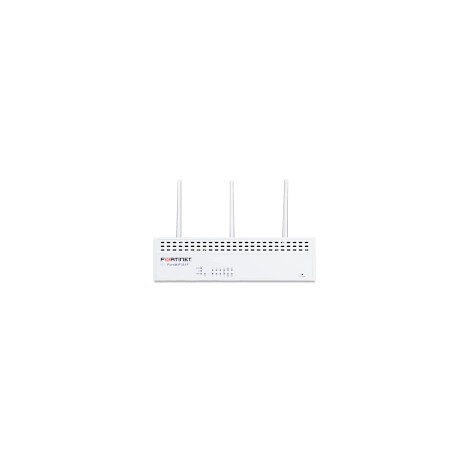

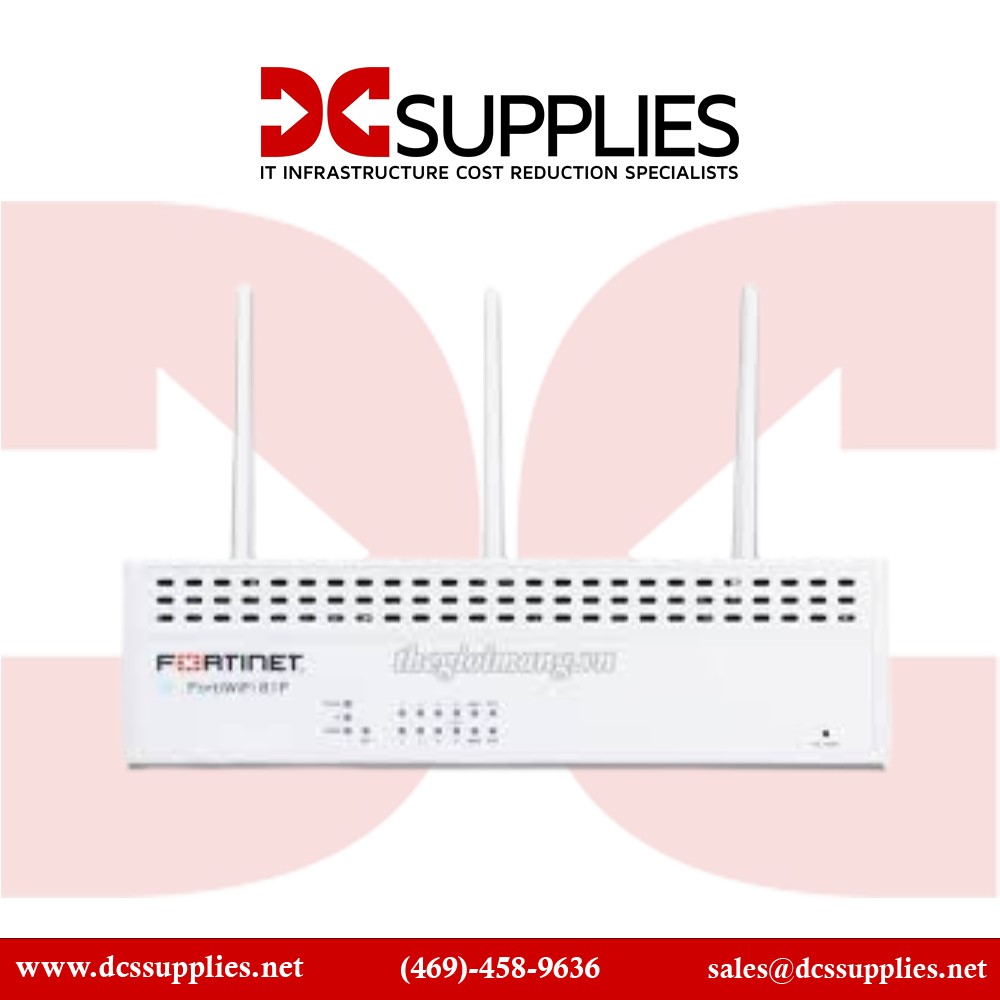

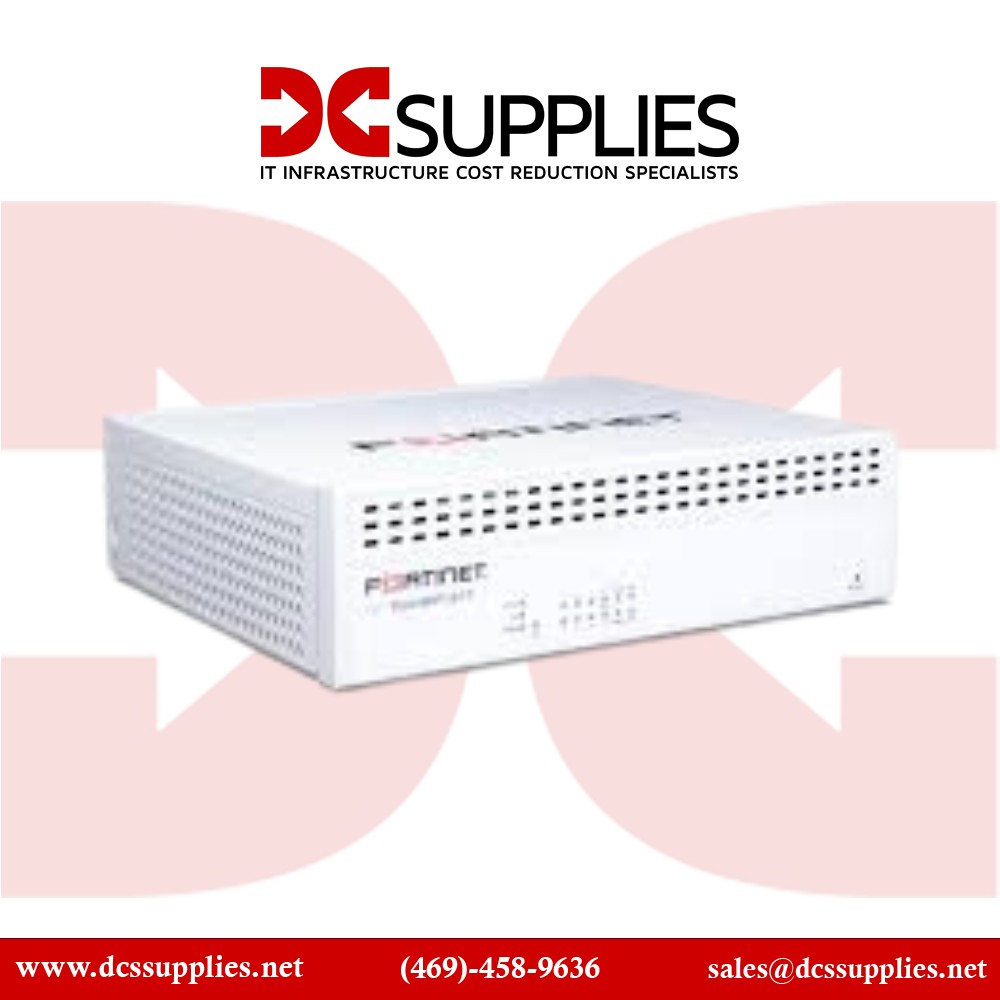

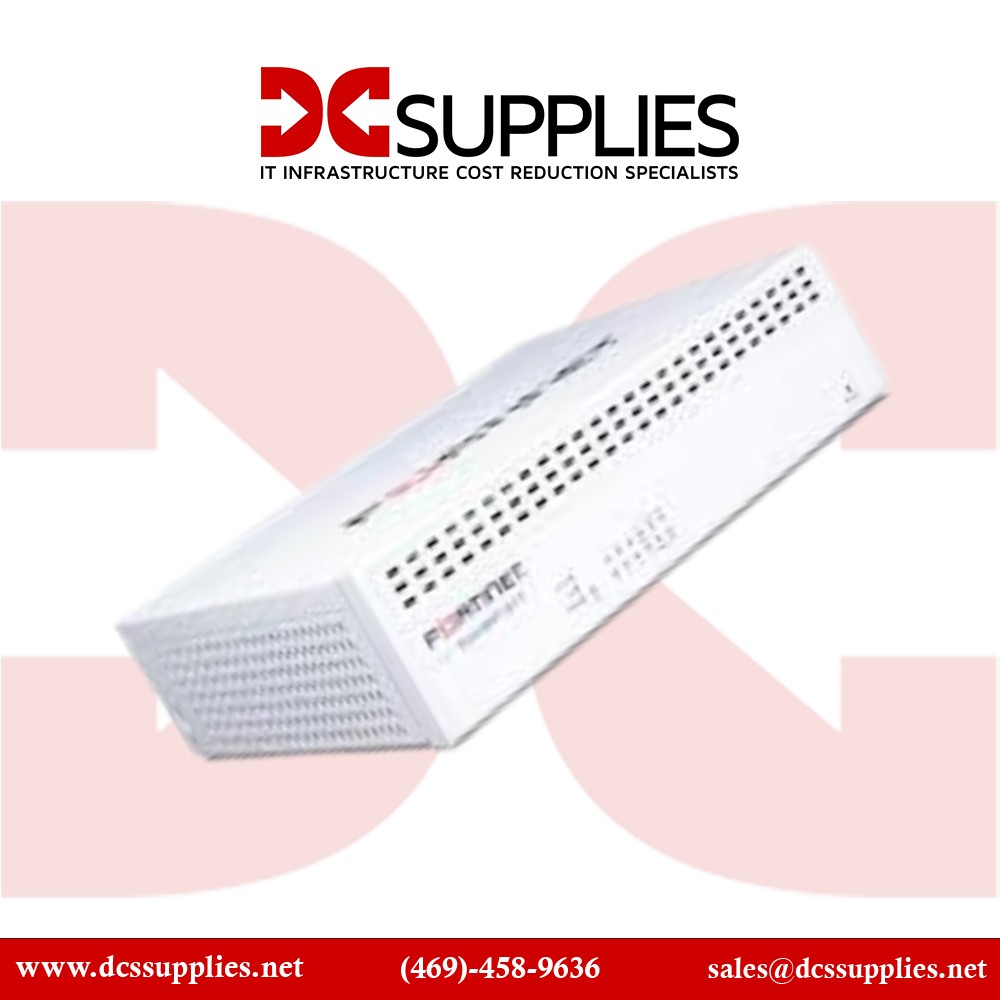

Fortinet FWF-80F-2R-A Network security firewall appliance WiFi 6

FWF-80F-2R-A

New

Dual-band Wi-Fi 6 NGFW with robust threat protection
×




Detailed Specifications

Fortinet FWF-80F-2R-A

Network Security Firewall Appliance (Wi-Fi 6, Dual-Radio) – All-in-One Security Solution

The Fortinet FWF-80F-2R-A is an all-in-one next-generation firewall appliance blending Wi-Fi 6 and wired security functionality. Geared for SMBs, branch offices, or remote deployments, it delivers unified firewall, Wi-Fi access, and advanced protection powered by AI-driven FortiGuard services.

Features :

The FWF-80F-2R-A integrates wired and wireless security into one sleek device. It supports dual-band Wi-Fi 6 (2.4 GHz and 5 GHz) alongside eight 1 GbE RJ-45 ports and two shared SFP/RJ-45 WAN ports, offering flexibility in network connections. Engineered for high throughput, it delivers enterprise-level performance with up to 1 Gbps NGFW, 1.4 Gbps IPS, and robust VPN and SSL inspection capabilities.

Advanced Options :

Its comprehensive security stack includes antivirus, intrusion prevention, application control, URL/DNS filtering, sandboxing, IoT protection, ZTNA, and IoT threat detection—backed by FortiGuard AI services. Compact and versatile, its fanless desktop design supports wall or rack mounting and comes with external antennas, TPM, BLE, and MIMO support for reliable deployment in quiet and constrained environments.

Product Key Features

  • Dual-band Wi-Fi 6 (802.11ax) with dual-radio design
  • Gigabit RJ-45 ports plus SFP WAN flexibility
  • High-performance throughput: NGFW, IPS, VPN, SSL inspection
  • Integrated FortiOS ecosystem with FortiGuard AI security
  • Compact, fanless, multi-mount form factor

Reliability & Performance :

Built on the FortiASIC SOC4 architecture, the FWF-80F-2R-A ensures efficient, high-speed packet processing with low latency and consistent performance. Its all-in-one design minimizes power draw and maintenance needs. Support for Wi-Fi 6 improves wireless throughput and device capacity, while external antennas and MIMO maximize coverage. With USB, console, BLE, and strong regulatory certifications, it delivers durable, flexible, and secure operation.

Key Features :

  • Dual-band Wi-Fi 6 with dual-radio support
  • Mixed RJ-45 and SFP WAN ports for flexible connectivity
  • High throughput: NGFW, IPS, VPN, SSL inspection
  • Broad FortiGuard security stack (AV, IPS, sandboxing, ZTNA, IoT security)
  • Compact and fanless with multi-mount options

Specifications :

SpecificationDetails
Model Number FWF-80F-2R-A
Product Type Network Security / Firewall Appliance with Wi-Fi
Wireless Standard IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6); Dual-band dual-radio
Wired Ports 6 × GE RJ-45, 2 × GE RJ-45/SFP WAN, 2 × GE RJ-45 FortiLink
USB / Console 1 × USB 3.0 Type-A, 1 × Console RJ-45
Wireless Performance 574 Mbps (2.4 GHz), 1201 Mbps (5 GHz), 2×2 MU-MIMO
Firewall Throughput (UDP) Up to 10 / 10 / 7 Gbps (1518/512/64 byte)
IPS Throughput (Enterprise) 1.4 Gbps
NGFW Throughput (Enterprise) 1 Gbps
Threat Protection Throughput 900 Mbps
VPN Throughput 6.5 Gbps IPsec, 950 Mbps SSL VPN
SSL Inspection Throughput 715 Mbps, 100k concurrent sessions, 700 CPS
Concurrent TCP Sessions 1.5 Million; New sessions/sec: 45k
Firewall Policies Support 5,000
Virtual Domains 10 (default / max)
Antennas 3 external SMA antennas, TPM, BLE
Form Factor Fanless, desktop / wall / rack-mountable
Power Consumption ~22.9 W
Weight & Dimensions ~1.5 kg; 21.6 cm × 6 cm × 17.8 cm
Certifications UL, FCC, cUL, CB, BSMI, VCCI, ICSA (IPS, Firewall, AV, SSL-VPN, IPSec)
