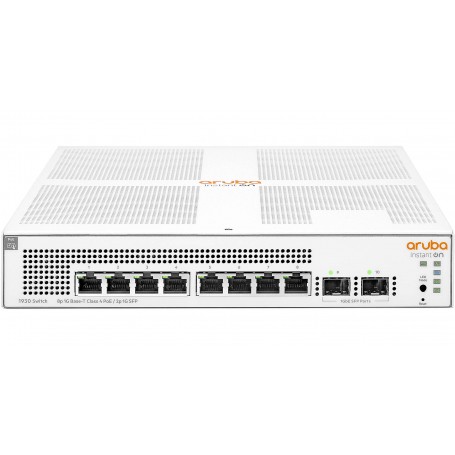

HPE Aruba JL681A ABA Networking Instant On 1930 8G Class Ethernet switch 10 ports

HPEAruba JL681A ABA

Networking Instant On 1930 8G Class Ethernet Switch 10 Ports

A compact, smart-managed PoE+switch perfect for small businesses, offering flexible port options and cloud-based management.

Overview :

The HPEArubaNetworking Instant On 1930 JL681A#ABA is a compact, smart managed PoE+Layer 2 Ethernet switch designed for small businesses and branch offices. It offers 8 GigabitPoE+ ports to power devices such as IP phones, security cameras, and wireless access points, along with 2 fiber uplinks for flexible, high-speed network expansion. The Instant On platform simplifies deployment and management through mobile and cloud apps, ideal for environments with limited IT resources.

Features :

Powered by an ARM Cortex-A9 processor and running Instant On software, this switch delivers enterprise-quality Layer 2 switching functionality including VLANs, QoS, and security features for secure and optimized network traffic. The 124W PoE power budget supports multiple powered devices, reducing the need for additional power supplies. The 2 SFP fiber uplink ports allow high-speed connectivity to core switches or larger networks, facilitating scalability. This switch's compact 1U form factor and fanless design ensure quiet operation suited for office use or small wiring closets. Management via the Instant On cloud portal or mobile app enables easy network configuration, monitoring, and troubleshooting from anywhere. Enhanced diagnostics and visual tools help maintain optimal network health.

Product Key Features

• 8 x 1G Class 4 PoE+ RJ-45 ports
• 2 x 1G SFP fiber uplink ports
• 124W PoE power budget
• 20 Gbps switching capacity
• Smart managed with Instant On mobile and cloud app
• Layer 2 switching with VLAN, QoS, and security

---

Reliability & Performance :

The JL681A balances power efficiency and performance with a 20 Gbps switching capacity and 14.88 Mpps forwarding rate, ensuring smooth data handling. Its robust hardware and reliable power supply contribute to consistent network uptime. Aruba backs this switch with a limited lifetime warranty and provides 24x7 phone support during the initial 90-day period for added peace of mind.

Key Features :

• 8 x 1G Class 4 PoE+ RJ-45 ports
• 2 x 1G SFP fiber uplink ports
• 124W PoE power budget
• 20 Gbps switching capacity
• Smart managed with Instant On mobile and cloud app
• Layer 2 switching with VLAN, QoS, and security

Specifications :

Specification	Details
Model Number	JL681A#ABA
Product Name	ArubaNetworking Instant On 1930 8G Class4 PoE 2 SFP Switch
Type	Smart Managed Layer 2 Ethernet Switch
Port Count	8 x 10/100/1000 PoE+ RJ-45, 2 x 1G SFP
PoE Power Budget	124 Watts
Network Technology	Gigabit Ethernet
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Form Factor	1U Rack-mountable, fanless
Power Consumption	11.7 Watts (idle)
Dimensions (WxDxH)	10" x 10" x 1.73" (254 x 254 x 44 mm)
Weight	Approx. 2.5 kg (5.5 lbs)
Management	Instant On cloud, mobile app, Web GUI
