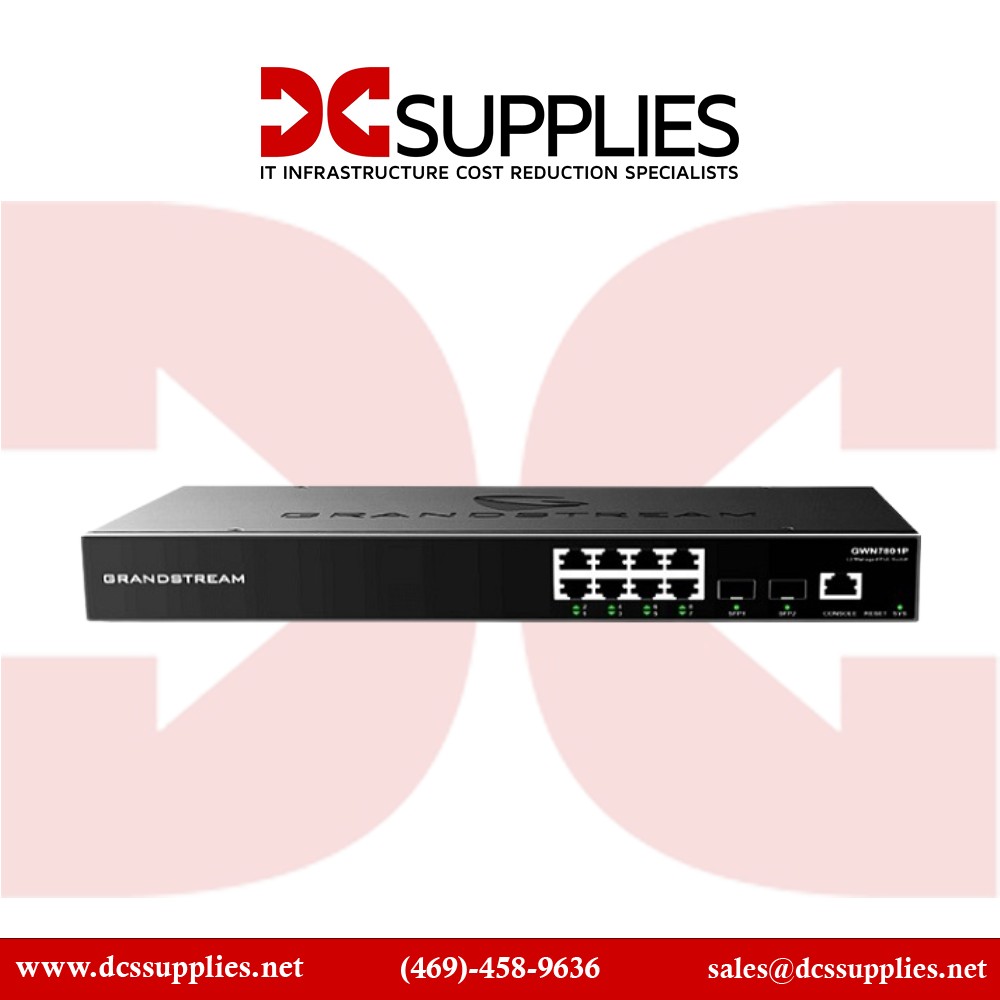

The Grandstream GWN7801P is a compact but powerful Enterprise Layer 2 Managed Switch with integrated PoE/PoE+ support. Designed with 8 x Gigabit Ethernet ports, it provides reliable connectivity for IP devices such as VoIP phones, IP cameras, and wireless access points while delivering advanced management tools suitable for SMB and enterprise networks. With rich L2 features, robust security, and seamless integration into Grandstream ecosystems, the GWN7801P is ideal for converged VoIP and data networks.
It can be centrally managed via GWN.Cloud or GWN Manager, offering simplified deployment, provisioning, and monitoring. This makes the Grandstream GWN7801P a reliable, PoE‑ready switching solution for enterprise, SMB, campus, or hospitality networks.
Features :
The GWN7801P supports IEEE 802.3af/at PoE+ standards, a robust PoE budget for IP endpoints, VLAN segmentation, QoS prioritization for voice/video, IGMP Snooping, ACLs, and port isolation. Its enterprise‑grade performance delivers secure and scalable connections.
Advanced Options :
Offering centralized management and advanced security, the GWN7801P makes deployments both efficient and secure. With PoE/PoE+ integrated on all ports, administrators can power multiple endpoints directly from the switch while simplifying cabling and reducing deployment costs.
Product Key Features
- 8 × Gigabit Ethernet ports with PoE/PoE+
- Supports IEEE 802.3af/at standards
- Layer 2 Managed features including VLAN, QoS, ACLs
- Rich security toolset to protect networks
- PoE budget suitable for IP phones, cameras, APs
- Integration with GWN.Cloud & GWN Manager
- Compact & enterprise‑grade chassis
- Energy‑efficient and quiet operation
Reliability & Performance :
The Grandstream GWN7801P ensures high reliability with carrier‑class engineering, enabling seamless IP voice & data convergence. With its full PoE support, centralized management features, and robust switching architecture, it’s a dependable solution for next‑generation business networks.
Key Features :
Specifications :
| Specification | Details |
|---|
| Part Number | GWN7801P |
| Brand | Grandstream |
| Product Type | Enterprise L2 Managed PoE Network Switch |
| Ethernet Ports | 8 × 10/100/1000 Mbps RJ‑45 PoE/PoE+ ports |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Budget | Approx. 120W total |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.8 Mpps |
| MAC Address Table | 8K entries |
| Jumbo Frame | Up to 10 KB |
| Layer 2 Features | VLANs, QoS, IGMP Snooping, Port Security |
| Security | 802.1X Authentication, ACLs, DoS Protection |
| Management | Web GUI, SNMP, GWN Manager & GWN.Cloud |
| Power Input | Internal power supply, AC 100–240V, 50/60Hz |
| Dimensions | Approx. 280mm × 180mm × 44mm |
| Form Factor | Compact desktop / rack‑mountable |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -40°C ~ +70°C |
| Compliance | CE, FCC, RoHS |
| Applications | Enterprise, SMB, VoIP deployments, IP surveillance |
| Warranty | Backed by Grandstream Limited Warranty |
