Overview

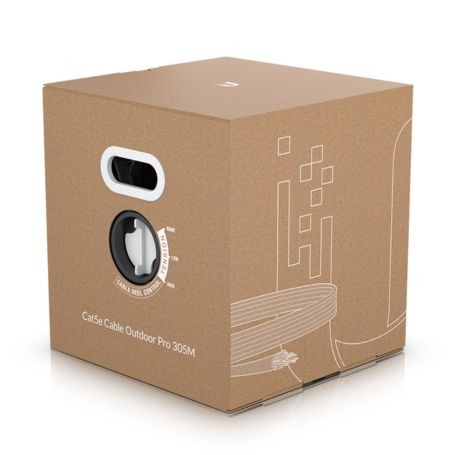

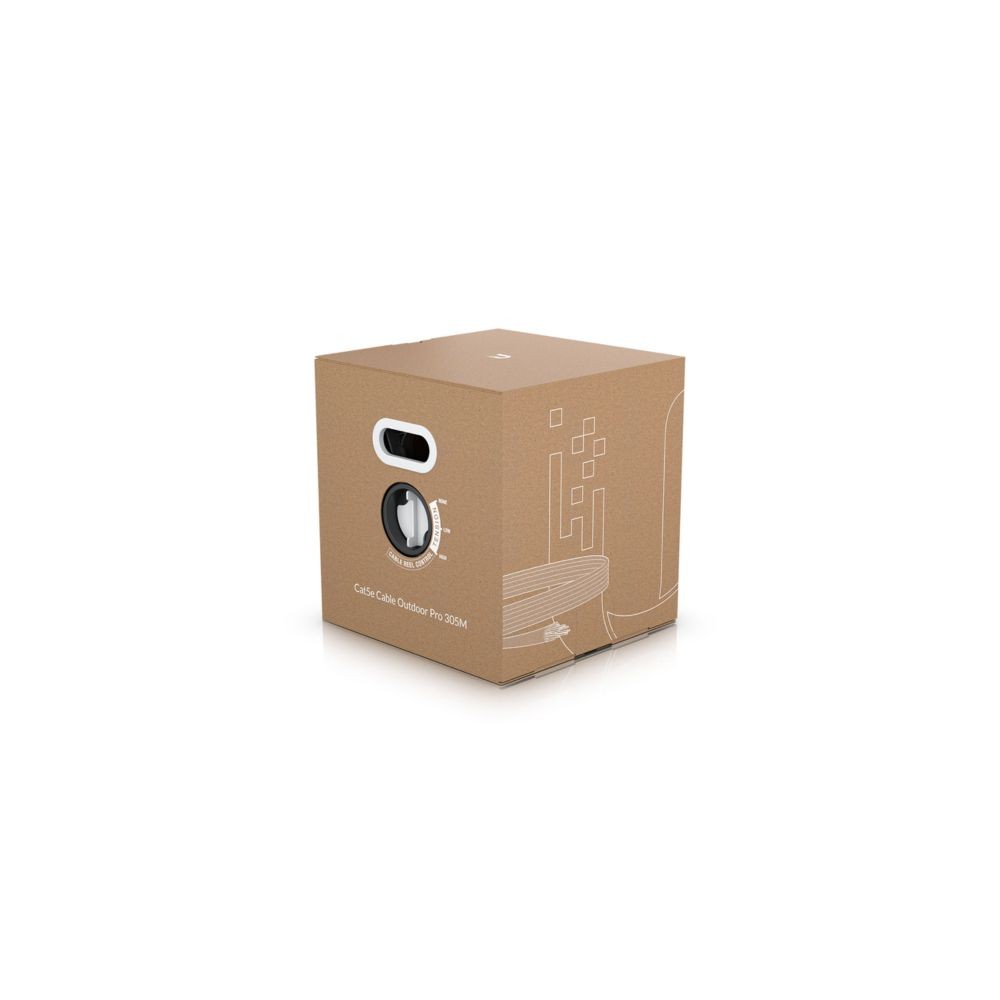

The Ubiquiti UACC-Cable-C5e-Outdoor-Pro-305M-W is a 305m (1,000ft) UniFi Outdoor Cable designed for outdoor Category 5e Ethernet installations. It uses solid bare copper 24 AWG conductors, F/UTP shielding, a white thermoplastic elastomer (TPE) jacket, and an integrated drain wire for network cabling where environmental exposure and electromagnetic interference are considerations.
Technical Information
This bulk cable contains four twisted pairs with colour-coded conductors and is supplied as a 305m spool. The F/UTP construction provides an overall foil shield, while the solid copper conductors are suitable for permanent Ethernet cabling installations using compatible termination hardware.
Outdoor Construction
The 6mm TPE jacket is designed for outdoor environments and provides UV resistance tested to ASTM G 151/154. Ubiquiti specifies an ambient operating temperature range of -30 to 75°C and an ambient storage range of -40 to 80°C. The cable also carries a VW-1 flame rating under UL1581.
Installation Features
An integrated ripcord assists with jacket preparation during installation, while the drain wire provides a dedicated path associated with the cable's shield construction. The minimum bend radius is 48mm, which should be considered when routing the cable around corners or through structured cabling pathways.
Key Features
- 305m (1,000ft) outdoor Category 5e bulk cable
- Solid bare copper 24 AWG conductors
- F/UTP shielding with integrated drain wire
- 6mm white TPE jacket with UV resistance
- Four twisted pairs with colour-coded conductors and ripcord
Applications
The cable is intended for outdoor structured Ethernet cabling, including permanent network links between compatible network equipment, buildings, outdoor devices, and other infrastructure. It is supplied without factory-installed RJ45 connectors, allowing the installer to terminate the cable according to the requirements of the installation.
Compatibility
As a Category 5e Ethernet cable, it is intended for compatible RJ45-based network installations. Ubiquiti specifies TIA/EIA-568-B.2 electrical transmission compliance. Select termination components and installation methods appropriate for the cable's solid 24 AWG conductor and F/UTP construction.
DC Supplies Product Note
Plan the cable route around the specified 48mm minimum bend radius and account for the 6mm jacket diameter when sizing conduits, cable glands, and other pathway hardware. The cable is intended for outdoor use, but the manufacturer's specifications should be checked for the environmental conditions of the particular installation.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Cable-C5e-Outdoor-Pro-305M-W |
|---|
| Product Type | Outdoor Bulk Ethernet Cable |
|---|
| Product Family | UniFi Outdoor Cable |
|---|
| Cable Category | Category 5e |
|---|
| Cable Length | 305 m (1,000 ft) |
|---|
| Jacket Colour | White |
|---|
| Jacket Diameter | 6 mm (0.24 in) |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Shielding Type | F/UTP |
|---|
| Conductor Type | Solid bare copper |
|---|
| Conductor Wire Gauge | 24 AWG |
|---|
| Twisted Pairs | 4 pairs |
|---|
| Drain Wire | Yes |
|---|
| Ripcord | Yes |
|---|
| Minimum Bend Radius | 48 mm (1.89 in) |
|---|
| Flame Rating | VW-1 (UL1581) |
|---|
| Electrical Transmission Standard | TIA/EIA-568-B.2 |
|---|
| UV Resistance | ASTM G 151/154 |
|---|
| Operating Environment | Outdoor |
|---|
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
|---|
| Ambient Storage Temperature | -40 to 80°C (-40 to 176°F) |
|---|
| Ambient Operating Temperature | -30 to 75°C (-22 to 167°F) |
|---|
| Box Dimensions | 358 × 341 × 352 mm |
|---|
| Box Weight | 14.2 kg (31.32 lb) |
|---|
FAQs
How long is the UACC-Cable-C5e-Outdoor-Pro-305M-W?
The cable is supplied in a 305m (1,000ft) length.
Is this cable suitable for outdoor installations?
Yes. Ubiquiti specifies an outdoor operating environment and UV resistance according to ASTM G 151/154.
What type of conductors does the cable use?
It uses solid bare copper conductors with a 24 AWG wire gauge.
Is the cable shielded?
Yes. The cable uses F/UTP construction with an integrated drain wire.
Does the cable have RJ45 connectors installed?
No. This is a bulk installation cable supplied without factory-installed RJ45 connectors.
What is the minimum bend radius?
Ubiquiti specifies a minimum bend radius of 48mm.
