Detailed Specifications
Overview

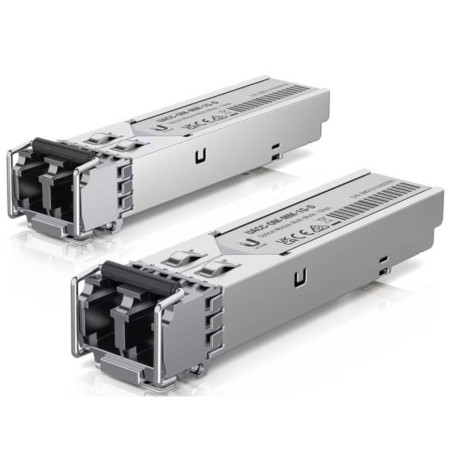

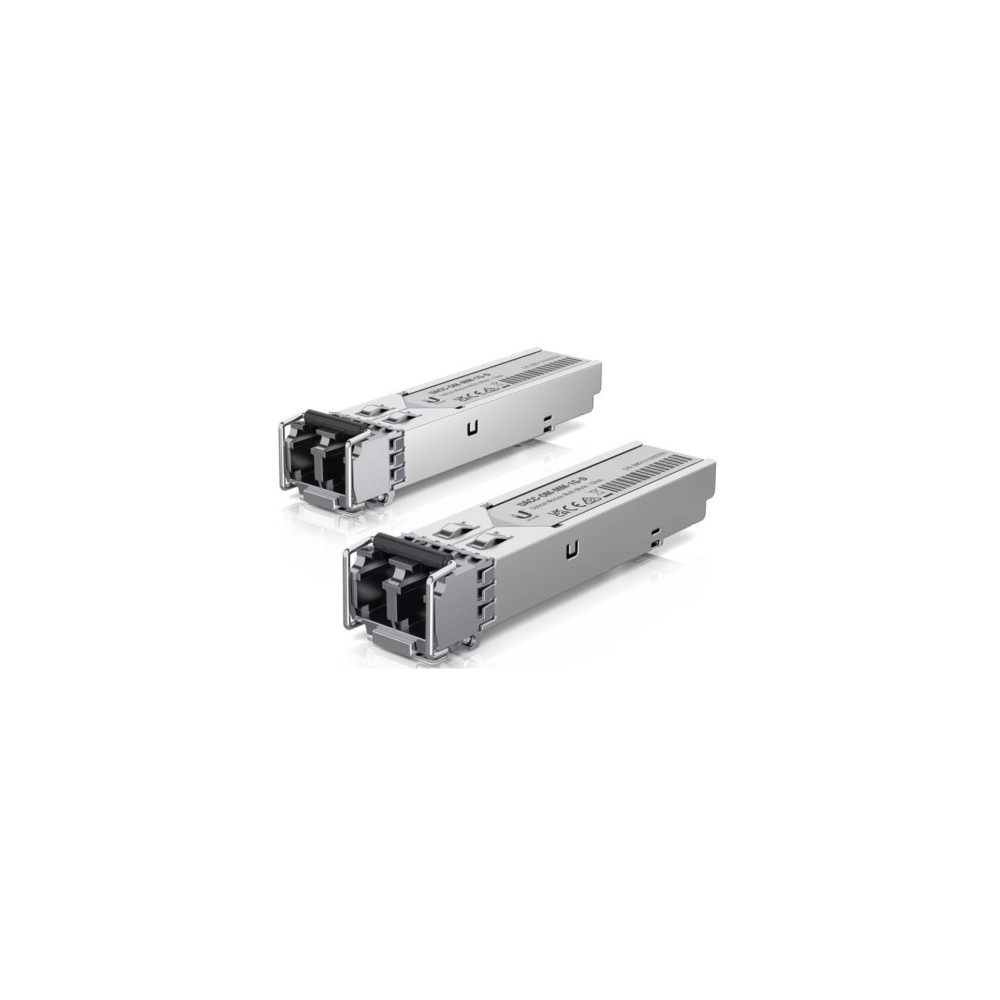

The Ubiquiti UACC-OM-MM-1G-D-20 is a 20-pack of 1G Multi-Mode Optical Modules. Each SFP transceiver supports multi-mode fiber connections using a duplex LC UPC connector, with 850 nm transmit and receive wavelengths and a supported cable distance of up to 550 m.
Optical Connectivity
Each module uses the SFP form factor and provides a duplex LC UPC interface for multi-mode fiber. The module operates at 850 nm for both TX and RX and supports connections up to 550 m (1,804 ft).
Key Features
- 20 optical modules included in the pack
- SFP form factor for compatible SFP interfaces
- Duplex LC UPC connector
- 850 nm TX and RX wavelength
- Supports multi-mode fiber connections up to 550 m
Deployment Considerations
The UACC-OM-MM-1G-D is specified for multi-mode fiber and a maximum supported cable distance of 550 m. Fiber cabling is not included, so compatible multi-mode fiber with duplex LC termination is required for the optical connection.
DC Supplies Product Note
This MPN is the 20-pack variant of Ubiquiti's 1G Multi-Mode Optical Module. If only one or two transceivers are required, Ubiquiti also identifies single-unit and 2-pack options under the base UACC-OM-MM-1G-D family.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OM-MM-1G-D-20 |
| Product Type | Multi-Mode Optical Module |
| Pack Quantity | 20 Modules |
| Form Factor | SFP |
| Connector | Duplex LC UPC |
| Supported Media | Multi-Mode Fiber |
| Supported Data Rate | 1 Gbps |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Cable Distance | 550 m (1,804 ft) |
| Maximum Power Consumption | 0.66 W |
| Ambient Operating Temperature | 0 to 70 °C (32 to 158 °F) |
FAQs
How many optical modules are included?
The UACC-OM-MM-1G-D-20 is supplied as a 20-pack.
What fiber type does the module support?
The module supports multi-mode fiber.
What connector does it use?
It uses a duplex LC UPC connector.
What wavelength does the module use?
The TX and RX wavelength is 850 nm.
What is the maximum supported cable distance?
The specified supported cable distance is up to 550 m (1,804 ft).
Is fiber cable included?
No. The optical module is supplied separately from the fiber cable.
