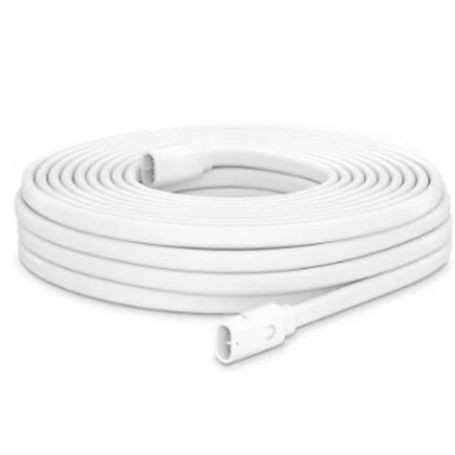

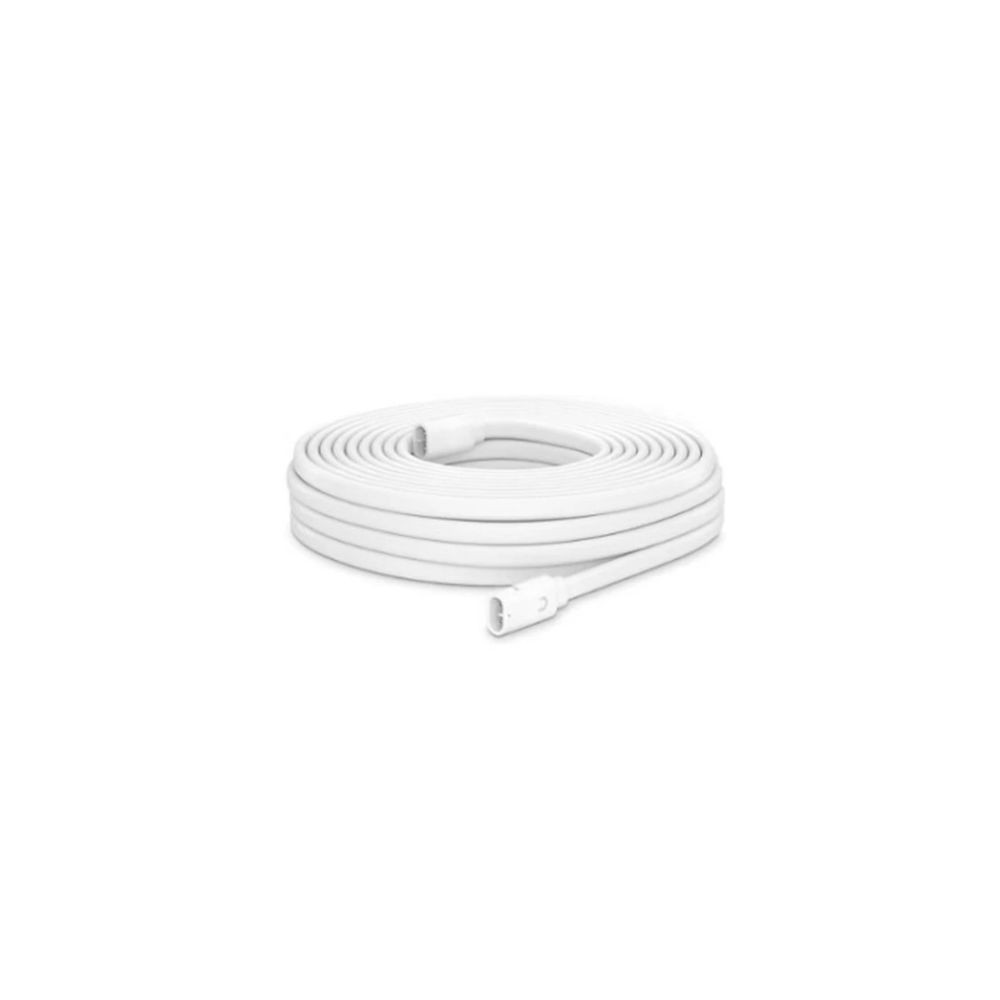

The Ubiquiti UACC-CABLE-PT-20M is a 20 m UISP Power TransPort cable designed to deliver DC power in outdoor installations. It uses 12 AWG tin-plated stranded copper conductors, a fire-resistant TPE jacket, and Ubiquiti Power TransPort connectors.
Overview
The cable is part of Ubiquiti's UISP Power TransPort cable family, which provides a dedicated DC power connection for compatible outdoor UISP equipment. The 20 m length is intended for installations where the power source and powered equipment require a longer cable run.
Technical Information
The UACC-CABLE-PT-20M uses 12 AWG tin-plated stranded copper conductors and has a thermoplastic elastomer jacket measuring 11 × 6.5 mm. The jacket is rated VW-1 for flame resistance, while the cable is designed for outdoor use with an operating temperature range of -40 to 80°C.
Outdoor Construction
The cable has an all-weather, UV-resistant construction intended for outdoor installations. Its TPE jacket provides the specified environmental and mechanical protection while retaining the flexibility required for routing between compatible Power TransPort connections.
Key Features
- 20 m cable length
- Ubiquiti Power TransPort connectors
- 12 AWG tin-plated stranded copper conductors
- UV-resistant, all-weather construction
- Fire-resistant TPE jacket with VW-1 rating
Applications
The UACC-CABLE-PT-20M is intended for outdoor UISP installations that require a 20 m DC power connection between compatible Power TransPort interfaces. It can be used where equipment placement requires a longer power cable run than the shorter family variants.
DC Supplies Product Note
The 20 m version is one of several UISP Power TransPort lengths, ranging from 0.5 m to 50 m. Select the cable length according to the physical routing distance required by the installation and verify that the connected equipment uses the Ubiquiti Power TransPort interface.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PT-20M |
| Product Type | Outdoor DC Power Cable |
| Product Family | UISP Power TransPort Cable |
| Cable Length | 20 m (65.62 ft) |
| Connector | Ubiquiti Power TransPort |
| Conductor Wire Gauge | 12 AWG |
| Conductor Type | Tin-plated stranded copper |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Dimensions | 11 × 6.5 mm |
| Jacket Color | White |
| Environment | Outdoor |
| Flame Rating | VW-1 |
| Ambient Operating Temperature | -40 to 80°C |
| NDAA Compliant | Yes |
FAQs
What is the UACC-CABLE-PT-20M used for?
It is used to provide a DC power connection for compatible Ubiquiti UISP equipment using the Power TransPort interface.
How long is this Power TransPort cable?
The cable is 20 m (65.62 ft) long.
Is the cable suitable for outdoor installations?
Yes. Ubiquiti specifies an all-weather, UV-resistant construction and an outdoor operating temperature range of -40 to 80°C.
What type of conductor does it use?
It uses 12 AWG tin-plated stranded copper conductors.
What connector does the cable use?
The cable uses Ubiquiti Power TransPort connectors for connection to compatible Power TransPort interfaces.
