The Ergotron 97-934-062 WorkFit Dual Monitor Kit is designed to mount two LCD monitors above the desktop on compatible Ergotron WorkFit sit-stand workstations. Its 5-inch height adjustment helps position displays for comfortable viewing, while the dual-monitor design frees up valuable workspace.
Key Features
- Dual-monitor support: Mounts two compatible LCD displays above the workstation surface.
- Height adjustment: Provides 5 inches (127 mm) of vertical adjustment to help position screens appropriately.
- 360-degree rotation: Allows compatible displays to rotate for flexible screen orientation.
- VESA compatibility: Supports 75 × 75 mm and 100 × 100 mm mounting patterns.

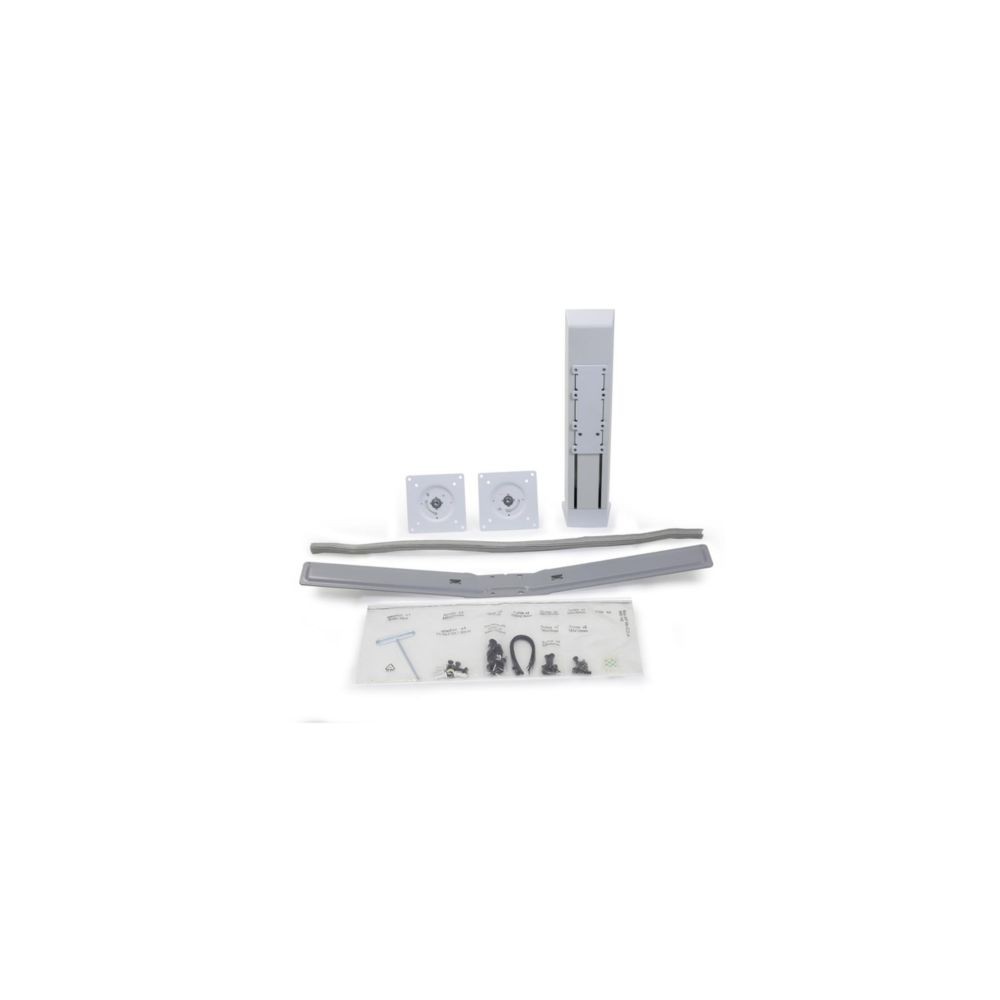

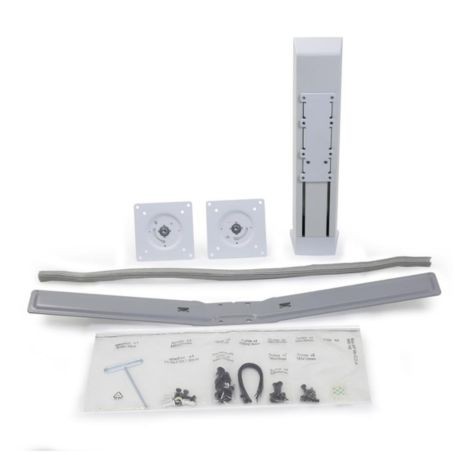

- Complete mounting kit: Includes the lift engine, two monitor pivots, dual bow, cable-management components, and attachment hardware.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-934-062 |
|---|
| Product Type | Dual-monitor mounting kit |
|---|
| Product Series | WorkFit |
|---|
| Color | White |
|---|
| Number of Displays | 2 |
|---|
| Recommended Display Size | Up to 24 inches for most compatible displays |
|---|
| Weight Capacity | 6–14 lb (2.7–6.3 kg) per display; 12–28 lb (5.4–12.7 kg) total |
|---|
| Vertical Adjustment | 5 inches (127 mm) |
|---|
| Rotation | 360 degrees |
|---|
| VESA Mounting Patterns | 75 × 75 mm and 100 × 100 mm |
|---|
| Compatible Workstations | Ergotron WorkFit-T, WorkFit-TL, WorkFit-TLE, and WorkFit-PD, subject to model compatibility |
|---|
| Included Components | 5-inch lift engine, two monitor pivots, dual bow, cable-management tube and ties, and mounting hardware |
|---|
| Warranty | 5 years, according to published product specifications |
|---|
Compatibility and Installation
This kit is intended for compatible Ergotron WorkFit sit-stand desktop workstations. Most displays up to 24 inches are suitable, but the actual fit depends on each monitor's width, thickness, weight, and mounting pattern. The maximum outside width of the two displays together is approximately 24.5 inches when each display is 2 inches thick.
Each display must weigh between 6 and 14 lb, with a combined supported display weight of 12–28 lb. Check the workstation's overall load capacity after adding the kit, as the accessory reduces the available capacity of the WorkFit-T and WorkFit-TL.
DC Supplies Product Note
Before ordering, confirm the workstation model, both monitors' VESA patterns, individual weights, and combined width. This kit is the white version, MPN 97-934-062. The workstation and monitors are not included unless explicitly stated in the order.
Frequently Asked Questions
1. How many monitors does this kit support?
It supports two compatible LCD monitors.
2. What is the maximum supported weight?
Each monitor must weigh between 6 and 14 lb (2.7–6.3 kg), with a combined monitor weight of 12–28 lb (5.4–12.7 kg).
3. Which VESA mounting patterns are supported?
The kit supports 75 × 75 mm and 100 × 100 mm VESA mounting patterns.
4. Which Ergotron workstations are compatible?
It is designed for compatible WorkFit-T, WorkFit-TL, WorkFit-TLE, and WorkFit-PD workstations. Confirm compatibility with your exact model before purchasing.
5. Are the monitors included?
No. The product is a mounting kit; monitors and the compatible workstation are sold separately.
