Detailed Specifications

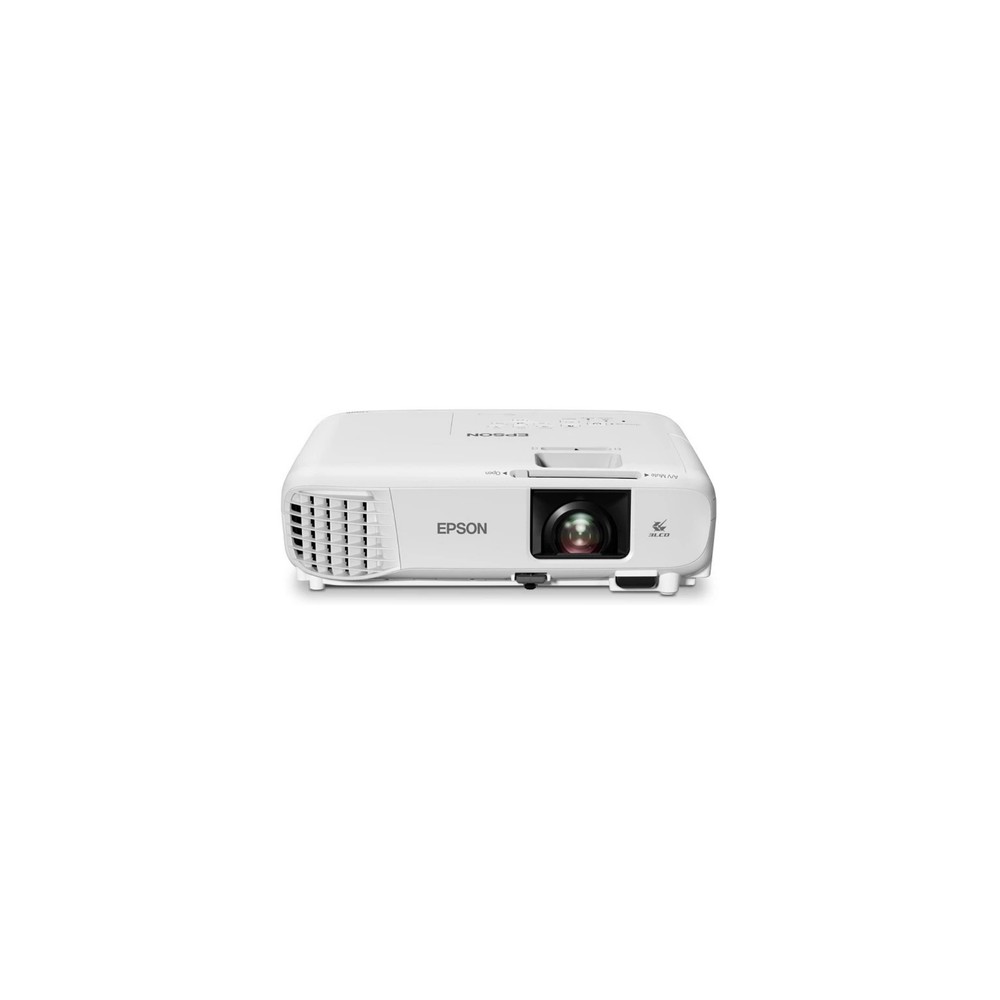

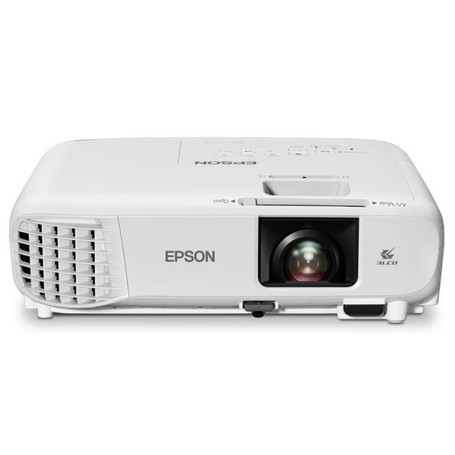

Epson V11HB51020 PowerLite E24 3LCD Classroom Projector
Overview :
The Epson V11HB51020 (PowerLite E24) is a budget-friendly, commercial-grade 3LCD multimedia projector engineered for reliable instructional data and media projection. Institutional AV coordinators, IT administrators, and academic facilities managers deploy this display system within standard primary classrooms, corporate training rooms, and basic huddle spaces. It directly resolves the issue of poor text legibility and faded charts caused by unshaded windows and overhead ambient office illumination.
Utilizing a true 3-chip 3LCD optical engine, the projector delivers 3,600 lumens of continuous, equal color and white brightness to prevent the dynamic "rainbow effect" common to single-chip DLP hardware alternatives.It outputs a native XGA resolution (1024 x 768) in a legacy 4:3 aspect ratio, while remaining capable of downscaling modern widescreen digital content.The device is powered by a 210W UHE lamp assembly that incorporates an optimized low-power ECO profile, extending the operational life expectancy up to 12,000 hours to reduce maintenance touchpoints.
The chassis integrates a flexible 1.44 to 2.88:1 throw ratio and a digital zoom function, allowing manual alignment onto a wide range of standard screens or whiteboards up to 300 inches diagonally. It features an integrated 5-watt mono audio speaker, an HDMI digital port, a legacy VGA component interface, and a built-in horizontal geometric correction slider for offset positioning. Do not deploy this standard-throw projector in narrow micro-conference spaces or short-throw wall mounts requiring ultra-close optics, as the lens system depends on a clear throw distance to cast precise image fields.
Key Features :
3,600 lumens of color and white output provide high visibility in lighted rooms.
Native XGA resolution delivers crisp, easily readable text for lesson plans.
Low-cost 210W UHE lamp runs up to 12,000 hours under ECO configuration.
Horizontal slider keystone adjustment enables versatile offset placement.
Integrated 5-watt mono speaker fulfills baseline audio presentation needs.
Specifications :
| Specification Field | Verified Value |
| Brand | Epson |
| Part Number | V11HB51020 |
| Product Type | 3LCD Multimedia Projector |
| Display Technology | 3-Chip Polysilicon TFT LCD |
| Brightness | 3,600 Lumens (Color Light Output / White Light Output) |
| Native Resolution | 1024 x 768 (XGA) |
| Native Aspect Ratio | 4:3 (Supports 16:9 and 16:10 aspect ratios) |
| Dynamic Contrast Ratio | Up to 15,000:1 |
| Light Source Type | 210W UHE Lamp |
| Lamp Life Expectancy | 6,000 Hours (Normal Mode) / 12,000 Hours (ECO Mode) |
| Throw Ratio Range | 1.44 to 2.88:1 |
| Zoom Type | 1.0 to 2.0x Digital Zoom (No Optical Zoom) |
| Keystone Correction | Vertical: ±30° (Manual); Horizontal: ±30° (Manual Slider) |
| Input Interfaces | 1x HDMI, 1x VGA (D-Sub 15-pin), 1x Composite Video RCA, 1x 2RCA Audio |
| Output Interfaces | 1x VGA Monitor Out, 1x 3.5mm Stereo Mini Audio Output |
| Control Interfaces | 1x RS-232C Serial (DB-9), 1x USB Type-B (Management) |
