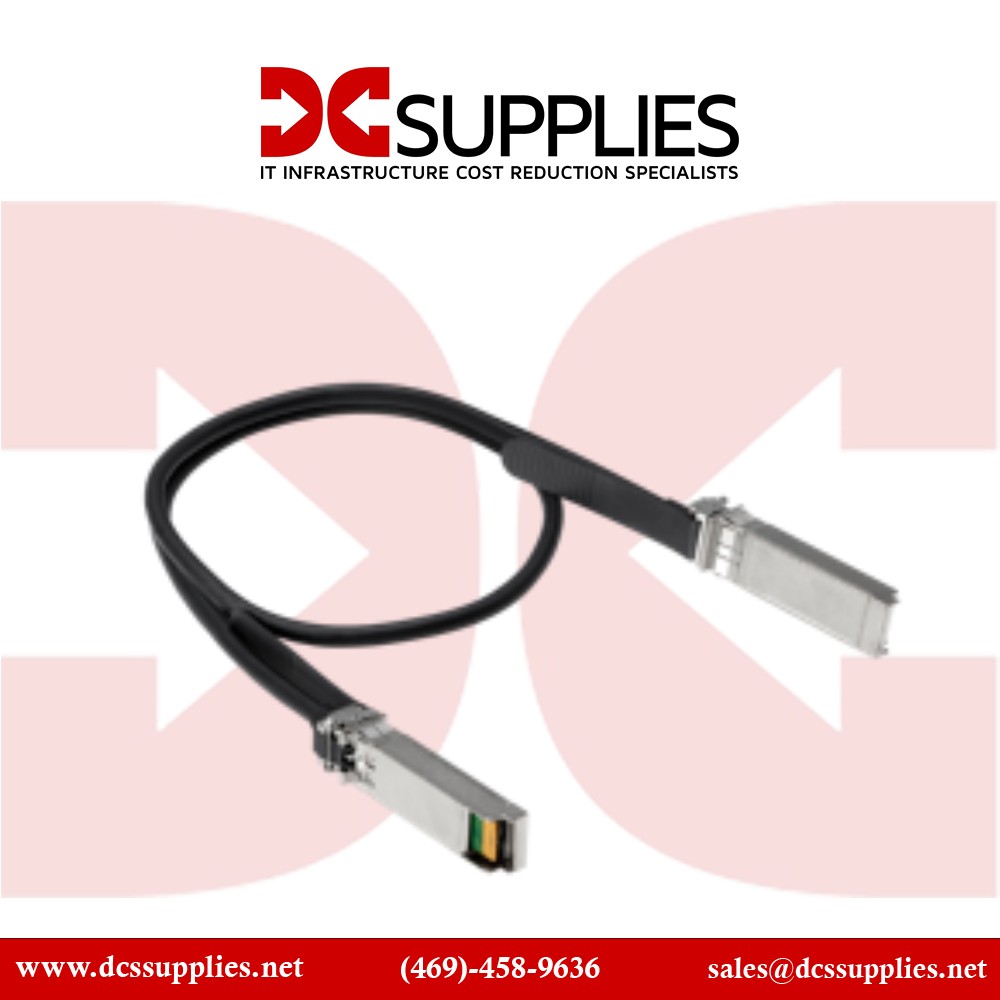

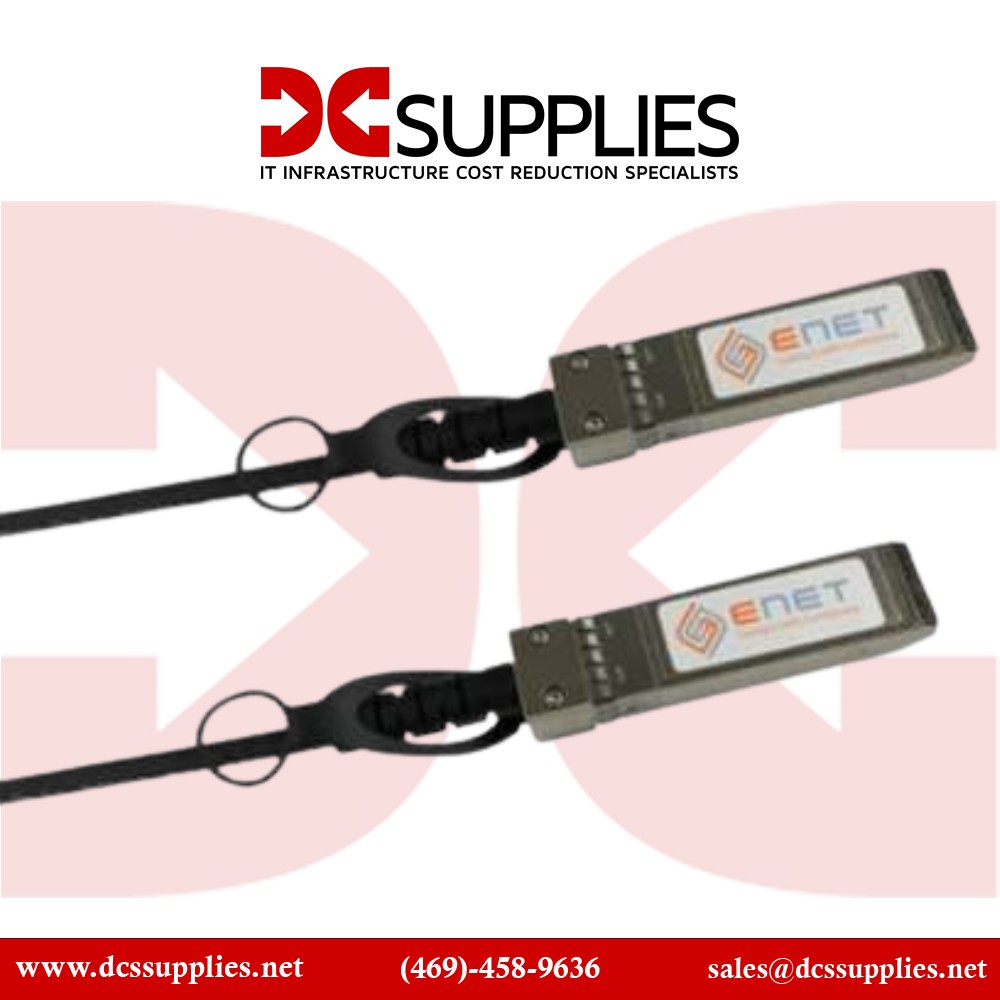

ENET JW103A-ENC Aruba compatible SFP+ to SFP+ Passive Direct Attach Cable 5m View larger
Previous Next

ENET JW103A-ENC Aruba compatible SFP+ to SFP+ Passive Direct Attach Cable 5m

JW103A-ENC

New

Compatible 7m 10G SFP+ passive DAC cable for HP Aruba
×




Detailed Specifications

ENET JW103A-ENC

Aruba Compatible SFP+ to SFP+ Passive Direct Attach Cable 5m

A cost-effective 10G DAC cable for high-speed, short-reach connections.

Overview :

The ENET JW103A-ENC is a 5-meter passive Direct Attach Copper Twinax cable designed for reliable 10 Gigabit Ethernet connections between SFP+ ports on HP Aruba switches and compatible devices. It provides an efficient and low-latency solution for short-range, high-speed interconnects within data centers and enterprise network racks.

Features :

This DAC cable features robust AWG30 Twinax copper cabling and standard SFP+ connectors on both ends, supporting data rates up to 10.52 Gbps. It complies with the 10GBASE-CR standard, covering a wide range of applications including 10G Ethernet, Fiber Channel protocols, and CPRI. Preprogrammed for HP Aruba compatibility, the cable ensures seamless plug-and-play operation in Aruba environments. The cable operates reliably up to 5 meters and within a temperature range of 0° to 70°C, fitting typical networking equipment room conditions. It supports Digital Diagnostics Monitoring (DDM) to enable real-time operational status and fault detection, promoting proactive network management.

Product Key Features

Reliability & Performance :

Constructed to meet strict CE, RoHS, and SFP+ MSA standards, the JW103A-ENC cable undergoes rigorous testing to guarantee quality and long-term durability. Its hot-pluggable design enables fast and easy installation or replacement without impacting network operation. The cable balances cost-effectiveness with high-quality performance for data center and enterprise environments.

Key Features :

  • 5m passive SFP+ Twinax DAC cable for 10G Ethernet.
  • Supports data rates from 1.0625 to 10.52 Gbps.
  • AWG30 copper Twinax cable with low latency.
  • Compatible with HP Aruba switches and networking devices.
  • Hot-swappable with DDM for diagnostics.
  • Operating temperature 0° to 70°C.

Specifications :

SpecificationDescription
Model Number JW103A-ENC
Product Type 10G SFP+ to SFP+ Passive DAC Cable
Cable Length 5 meters
Data Rate 1.0625 to 10.52 Gbps
Connector Type SFP+ to SFP+
Cable Type AWG30 Twinax Copper
Supported Standard 10GBASE-CR, Fiber Channel, CPRI
Power Consumption Approx. 0.5 W
Operating Temperature 0° to 70°C
Hot-pluggable Yes
Compliance CE, RoHS, SFP+ MSA
