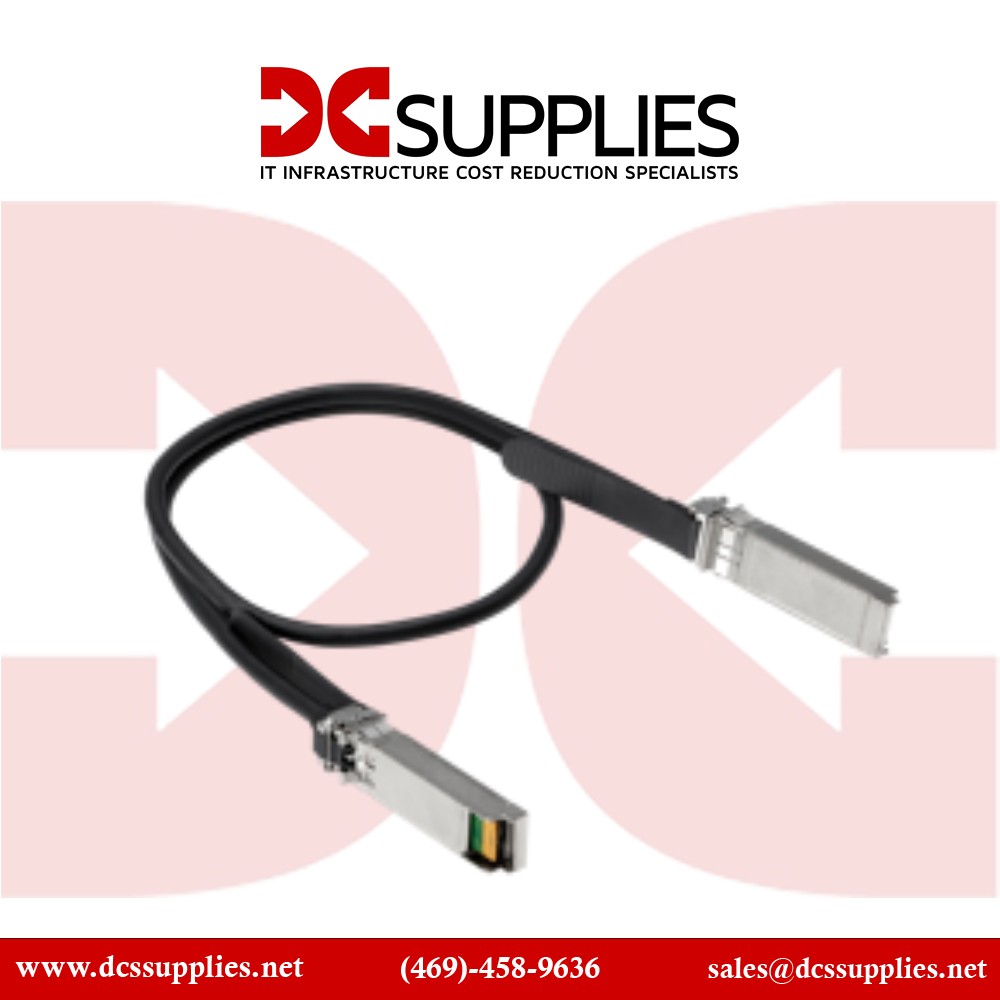

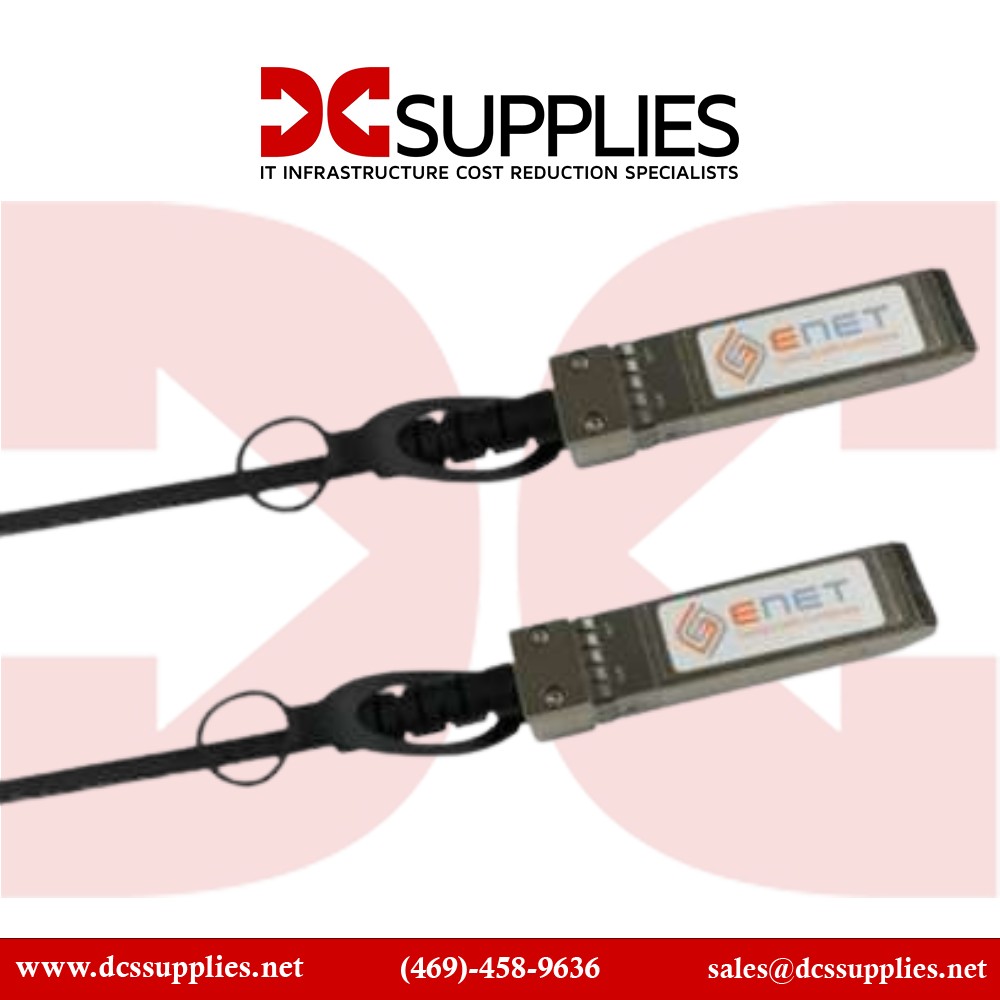

ENET JW104A-ENC Aruba compatible SFP+ to SFP+ Passive Direct Attach Cable 7m

ENET JW104A-ENC

Aruba Compatible SFP+ to SFP+ Passive Direct Attach Cable 7m

A cost-effective and reliable 10G DAC cable for short-reach connections.

Overview :

The ENET JW104A-ENC is a 7-meter passive Direct Attach Copper (DAC) cable designed for high-speed 10 Gigabit Ethernet connections between SFP+ ports. This cable is fully compatible with HPArubaswitches and offers a reliable, low-latency, and cost-effective solution for short-range, high-bandwidth data center interconnects and server connections.

Features :

This passive DAC cable eliminates the need for optical transceivers by providing a direct copper connection with a fixed 7-meter length. It supports the 10GBASE-CU standard, ensuring compatibility across a broad range of networking equipment, including HPAruba platforms. The cable features standard SFP+ connectors on both ends for easy integration into existing hardware. The cable is manufactured using high-quality copper twinax cabling designed to maintain signal integrity and reliable performance, even in dense data center environments. Its power-efficient passive design reduces energy consumption compared to active optical modules, keeping operational costs low without compromising speed or signal quality.

Product Key Features

• 7-meter passive Direct Attach Copper (DAC) cable.
• SFP+ to SFP+ connectors supporting 10 Gigabit Ethernet.
• Compatible with HPArubanetworking devices and switches.
• Supports data rates up to 10 Gbps.

---

Reliability & Performance :

Built to withstand data center conditions, the JW104A-ENC features robust construction and meets industry standards for electromagnetic interference (EMI) and temperature tolerance, operating efficiently from 0° to 70°C. The hot-pluggable design allows for straightforward installation and replacement without disruption to network services. Its compliance with Multi-Source Agreement (MSA) and RoHS ensures broad compatibility and environmental safety.

Key Features :

• 7m passive SFP+Direct Attach Copper (DAC) cable.
• Supports 10GBASE-CU, data rates up to 10 Gbps.
• SFP+ connectors on both ends for HPAruba compatibility.
• Low latency, power-efficient design.
• Hot-swappable and MSA compliant.
• Operating temperature: 0° to 70°C.

Specifications :

Specification	Description
Model Number	JW104A-ENC
Product Type	10G SFP+ to SFP+ Passive DAC Cable
Cable Length	7 meters
Data Rate	10 Gbps
Connector Type	SFP+ to SFP+
Cable Type	Twinax copper
Supported Standard	10GBASE-CU
Power Consumption	Very low (passive cable)
Operating Temperature	0° to 70°C
Hot-pluggable	Yes
Compliance	MSA, RoHS
