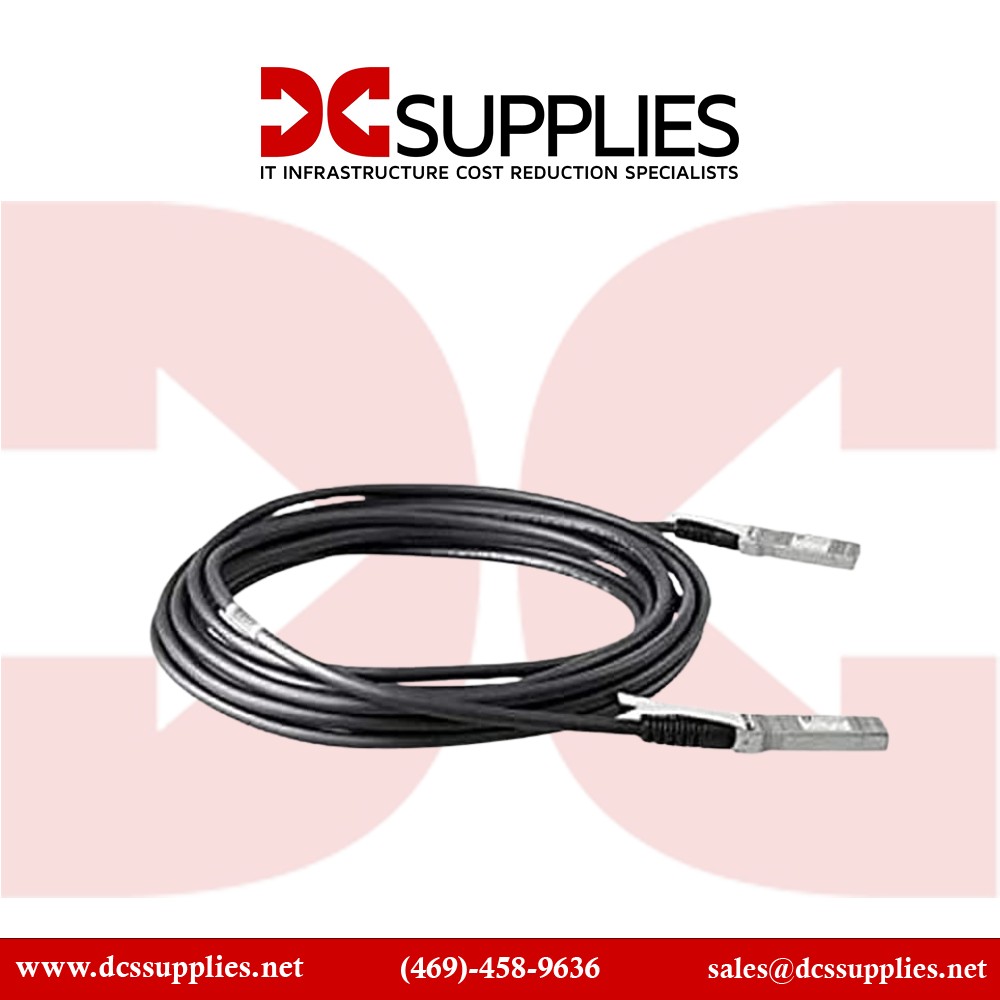

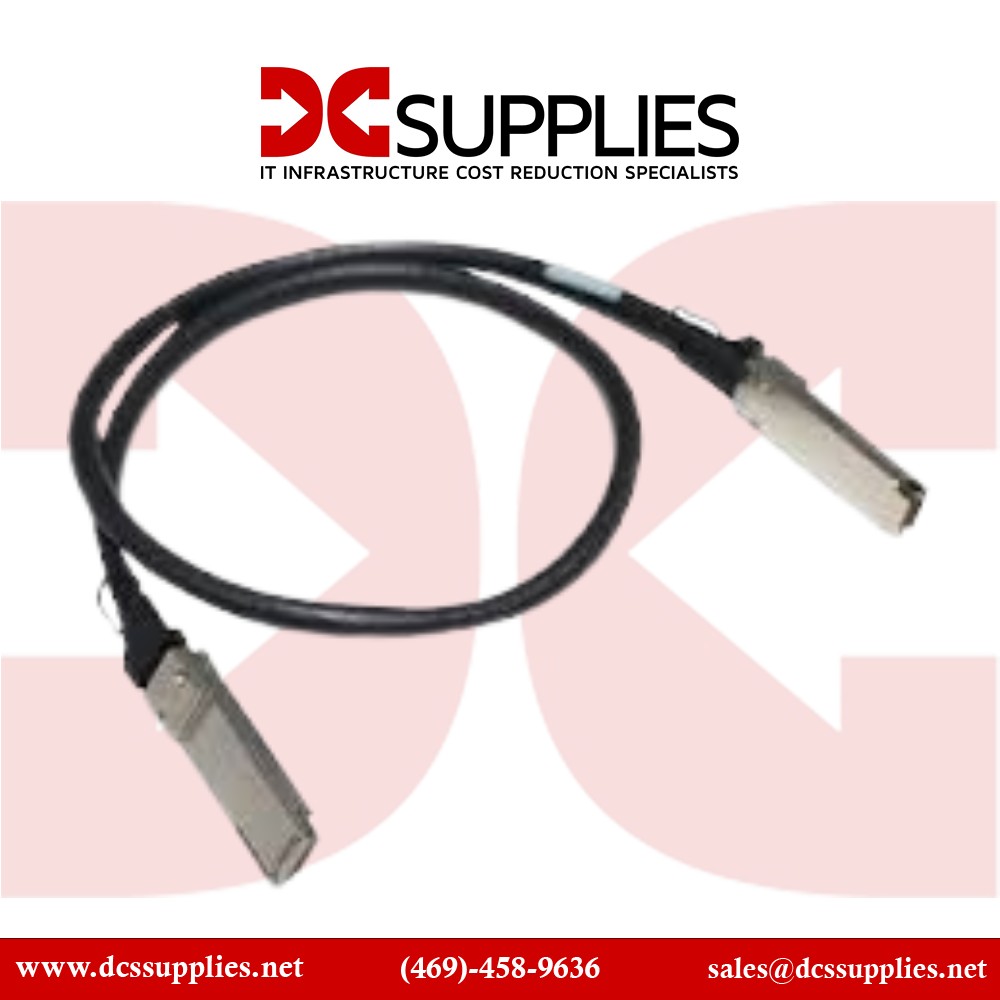

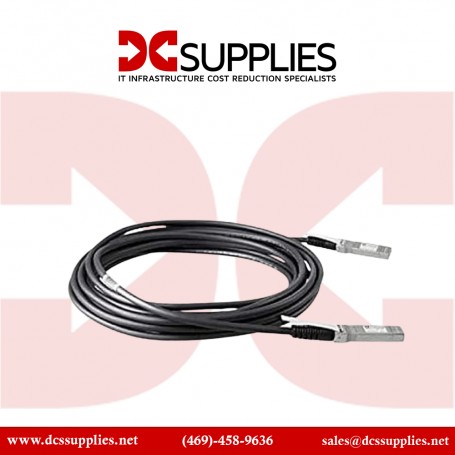

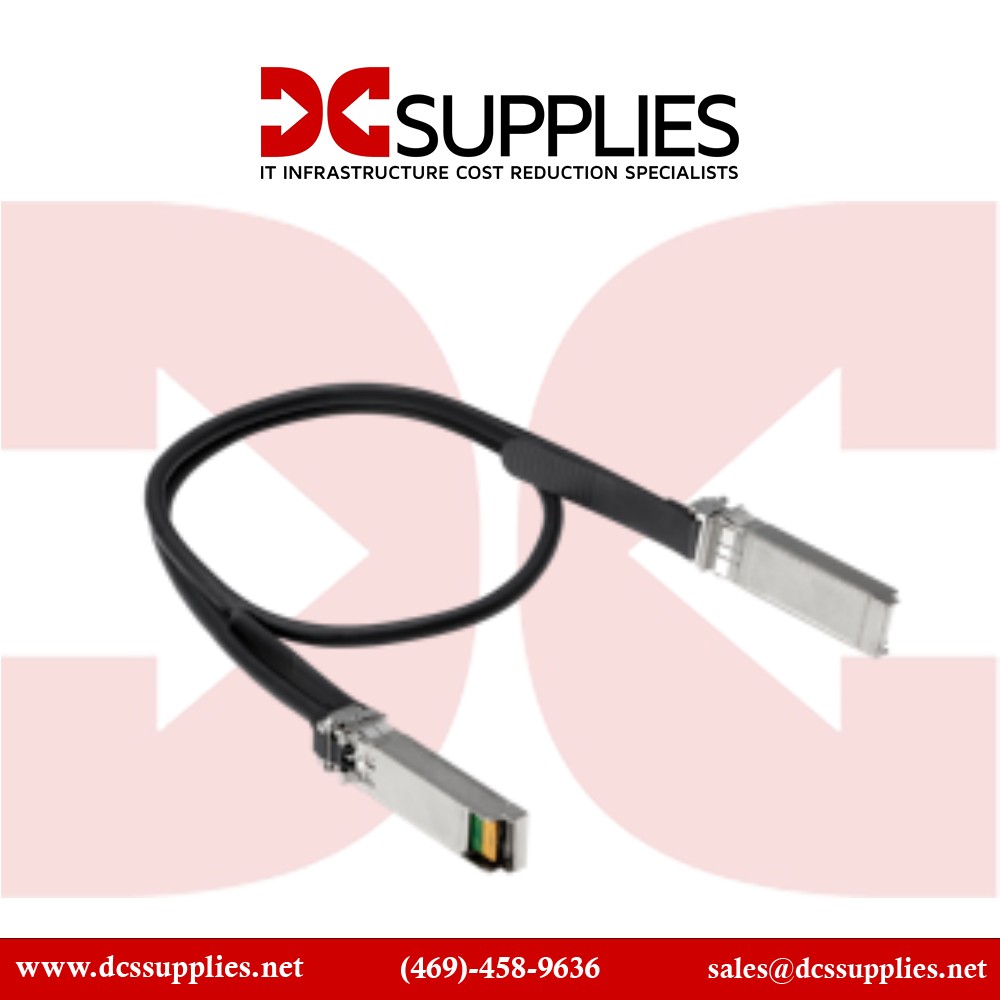

ENET JH236A-ENC X242 40G QSFP+ to QSFP+ Direct Attach Copper Cable, 5m View larger
Previous Next

ENET JH236A-ENC X242 40G QSFP+ to QSFP+ Direct Attach Copper Cable, 5m

JH236A-ENC

New

Compatible 40G QSFP+ to QSFP+ 5m DAC cable for HP Aruba
×




Detailed Specifications

ENET JH236A-ENC X242

40G QSFP+ to QSFP+ Direct Attach Copper Cable, 5m

A reliable and cost-effective 40G DAC cable for short-range connections.

Overview :

The ENET JH236A-ENC is a 5-meter Direct Attach Copper (DAC) cable designed for high-speed 40 Gigabit Ethernet connections between QSFP+ ports. Fully compatible with HP Aruba X242 series switches and other QSFP+ devices, it delivers reliable, low-latency connectivity suitable for data center and enterprise network interconnections requiring short-range, cost-effective cabling.

Features :

This passive twinax copper cable eliminates the need for optical transceivers by providing a direct QSFP+ to QSFP+ connection with a fixed length of 5 meters. It supports the 40GBASE-CR4 standard with a data transfer rate up to 40 Gbps, suitable for high-bandwidth, short-reach interconnects such as top-of-rack switch connections or server uplinks. The cable uses standard QSFP+ connectors on both ends and is encoded to ensure compatibility and seamless integration with HP Aruba X242 platforms. Its design minimizes power consumption and latency while maintaining high signal integrity. The cable is also RoHS compliant and meets Multi-Source Agreement (MSA) specifications for QSFP+ DAC cables.

Product Key Features

Reliability & Performance :

Constructed with robust materials, the JH236A-ENC cable offers durability and stable performance in data center environments. It operates within a typical temperature range of 0° to 70°C and supports Digital Diagnostics Monitoring (DDM) for real-time status tracking. The hot-pluggable design enables easy installation or replacement with no disruption to network operation.

Key Features :

Specifications :

SpecificationDescription
Model Number JH236A-ENC
Product Type 40G QSFP+ to QSFP+ Direct Attach Copper Cable
Cable Length 5 meters
Data Rate 40 Gbps
Connector Type QSFP+
Supported Standard 40GBASE-CR4
Compatible Devices HP Aruba X242 series, others QSFP+
Power Consumption Very low (passive cable)
Operating Temperature 0° to 70°C
Compliance QSFP+ MSA, RoHS
Hot-pluggable Yes
