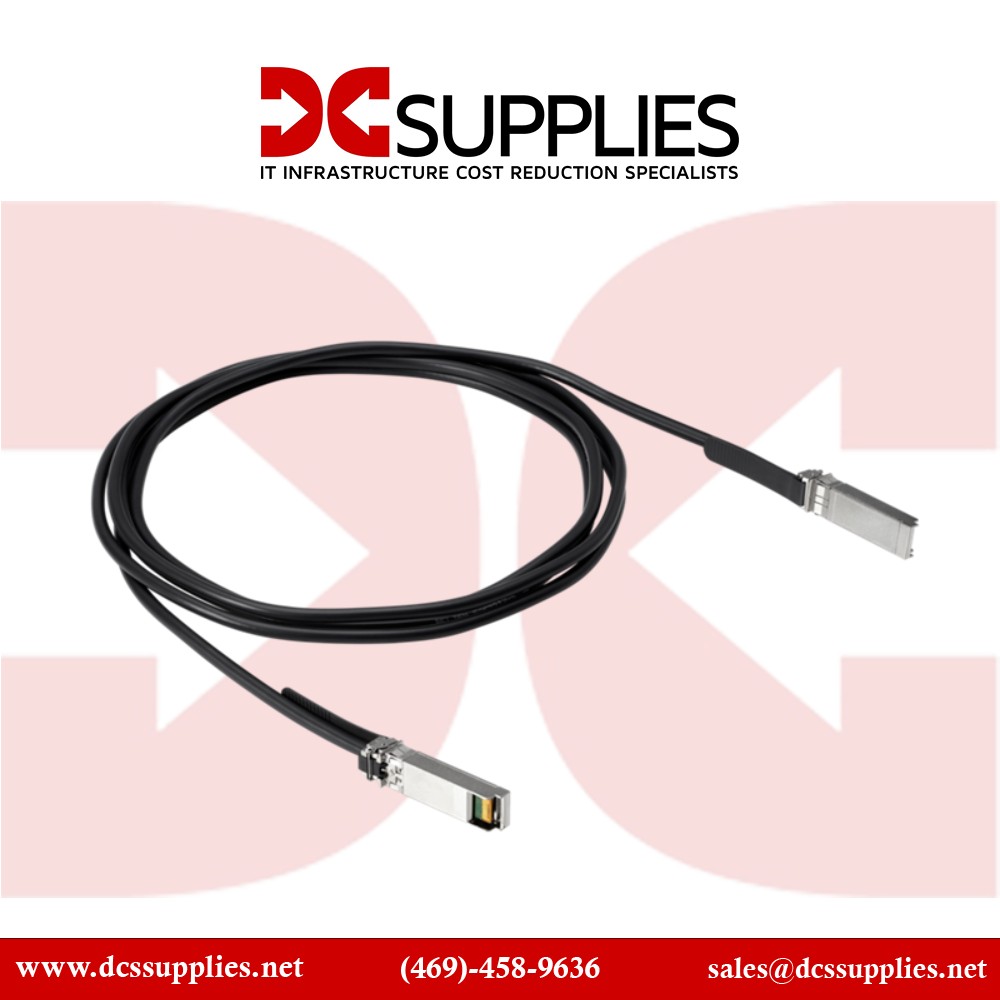

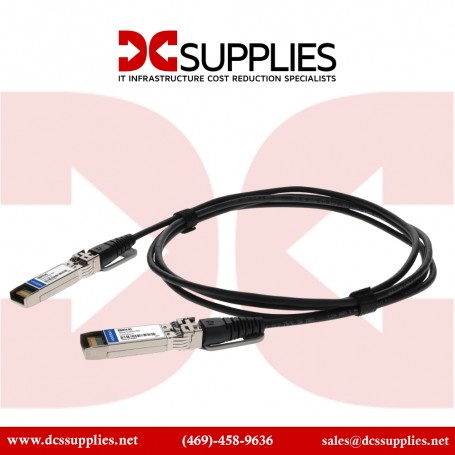

AddOn R0Z25A-AO Aruba Networks Compatible 100GBase-CU QSFP28 Passive Direct Attach Cable, 1m

R0Z25A-AO

New

1-meter passive 100G QSFP28 direct attach copper cable
×




Detailed Specifications

AddOn R0Z25A-AO

Aruba Networks Compatible 100GBase-CU QSFP28 Passive Direct Attach Cable

High-speed 100 Gbps direct attach cable for Aruba Networks.

Overview :

The AddOn R0Z25A-AO is a 1-meter passive direct attach copper cable compatible with Aruba Networks QSFP28 100G ports. Engineered for short-distance, high-bandwidth interconnects within data centers and enterprise network deployments, it enables reliable and ultra-fast 100 Gbps connectivity. This cable eliminates the need for optical transceivers, providing a cost-effective and efficient solution for network administrators. By connecting two QSFP28 ports directly, it delivers low latency and minimal signal loss, optimized for intra-rack or adjacent rack connections..

Features :

This direct attach cable is a passive copper twinax solution, complying with the 100GBase-CU standard for 100 Gbps Ethernet over short distances. Its passive design reduces power consumption and heat output compared to active optical alternatives, contributing to more efficient data center operations. The R0Z25A-AO adheres to multi-source agreement (MSA) standards, ensuring broad interoperability and plug-and-play installation with Aruba switches and other compatible hardware. Network managers benefit from seamless hot-swap capability, enabling maintenance and upgrades without service interruption, making it a highly reliable and flexible networking component..

Product Key Features

  • 100 Gbps Data Rate: Provides ultra-fast data transfer for high-performance networks.
  • QSFP28 to QSFP28: Ensures seamless connectivity between high-density switches and servers.
  • Aruba Networks Compatible: Guarantees full functionality and reliability with Aruba devices.
  • Low Power Consumption: An energy-efficient solution for sustainable data center operations.

Reliability & Performance :

The AddOn R0Z25A-AO offers strong durability and low power consumption while maintaining top-tier performance compatible with Aruba Networks 100G QSFP28 ports. The passive copper twinax construction mitigates electromagnetic interference and provides stable signal integrity to support heavy data loads. Rated for commercial operating temperatures and compliance with industry safety standards, this cable supports uninterrupted network traffic with minimal maintenance. Hot-swappable features reduce downtime, making it an efficient and dependable choice for high-speed data center environments..

Key Features :

  • 100 Gbps data rate support for high-performance networking.
  • QSFP28 to QSFP28 passive DAC cable, 1-meter length.
  • Aruba Networks compatible for seamless integration.
  • Low power consumption and heat generation.
  • Hot-swappable and easy to install.
  • Designed for short-reach data center interconnection.

Specifications :

SpecificationDetails
Model Number R0Z25A-AO
Product Type 100GBase-CU QSFP28 Passive Direct Attach Cable
Data Rate 100 Gbps
Cable Length 1 meter (3.28 feet)
Connector Type QSFP28 to QSFP28
Cable Type Passive Twinax Copper
Supported Standards IEEE 802.3bj, 100GBase-CU
Compatibility Aruba Networks Equipment
Power Consumption Approx. 0.1 W per end
Operating Temperature 0°C to 70°C
Hot-Swappable Yes
Compliance RoHS, CE
