Detailed Specifications

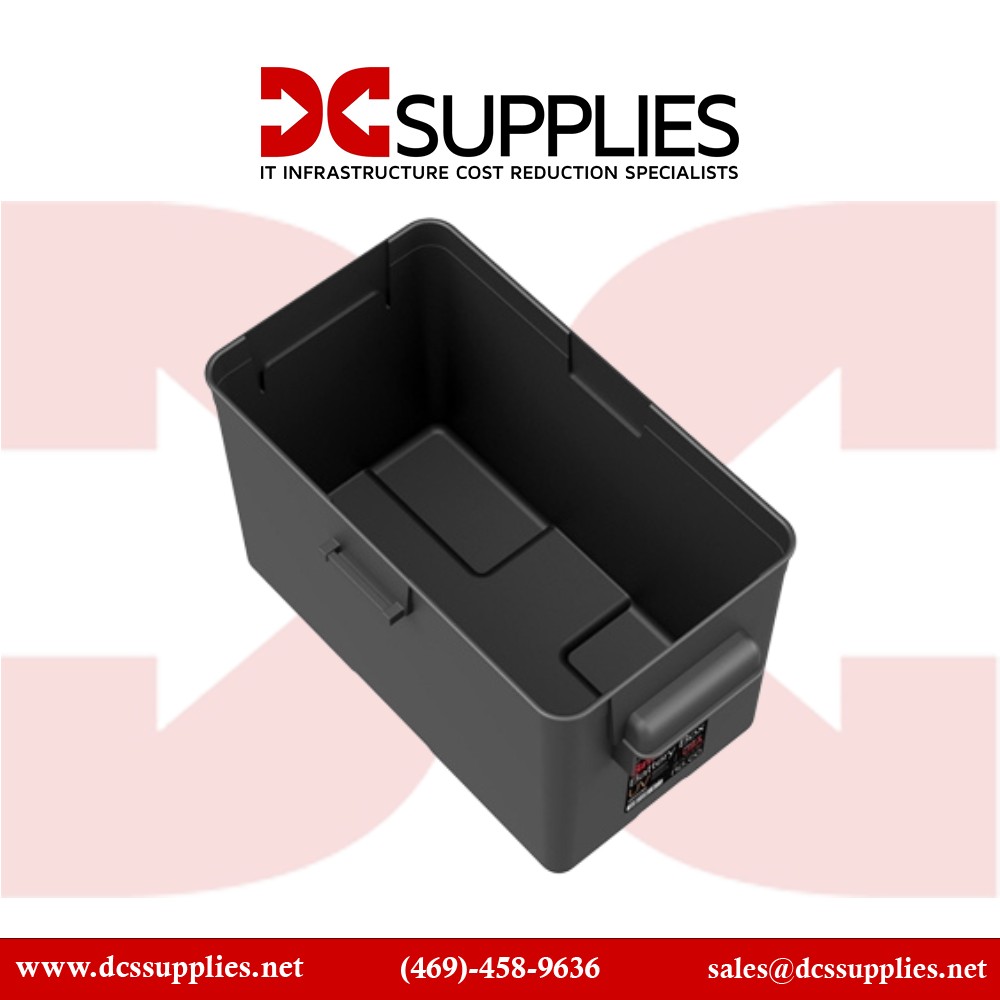

Group 24 Heavy-Duty Battery Tray
The NOCO BT24S heavy-duty battery tray provides a secure, ventilated base for a single Group 24 battery. Perfect for marine vessels, RVs, campers, trailers, and utility vehicles, it ensures safe and compliant battery installations in demanding conditions.
Features
The ventilated design allows hydrogen gas to dissipate safely, and any acid spillage is collected in the internal reservoir to protect the installation area . It accommodates battery hold-down via included 42″ military-grade strap or optional J-bolts or clamps
Advanced Options
Manufactured in the USA using rugged, UV-stabilized plastic, the BT24S maintains structural integrity down to -20 °F, while resisting oil, gas, and acid damage.The inclusion of structural strap or J-bolt fastening prevents movement beyond regulatory limits.
Product Key Features
Holds a single Group 24 battery securely with J-bolt or strap retention
Constructed with extreme-duty plastic×impact-resistant to -20 °F
Full-flow ventilation and internal acid reservoir for safety
UV, oil, gas, and chemical resistant for harsh environments
Includes 42″ military-grade nylon strap (120 kg tensile strength)
Compliant with USCG CFR 183.420 and ABYC E-10.7 marine standards
Reliability & Performance
This tray meets U.S. Coast Guard and ABYC standards (CFR 183.420 and E-10.7) for secure and vibration-resistant battery mountingIt fits battery dimensions from approximately 10.3-11.3″ L × 6.3-7.3″ W, with internal sizing of 11.3″ × 7.3″ × 1.2″ and a lightweight yet sturdy build (~0.4 lb)
Key Features (Bullet List)
Supports one Group 24 lead-acid/AGM/lithium battery
42″ military-grade nylon hold-down strap (120 kg capacity)
Suitable for J-bolt or clamp-based mounting
Rugged plastic×impact-resistant to -20 °F, UV/oil/gas resistant
Full-flow venting with acid-resistant reservoir
USCG and ABYC certified for marine use
| Specification | Details |
|---|
| Model Number | BT24S |
| Type | Heavy-Duty Battery Tray for Group 24 |
| Material | UV-stabilized, impact-resistant plastic |
| Battery Fit | Group 24 lead-acid, AGM, or lithium (10.3-11.3″ × 6.3-7.3″) |
| Internal Dimensions | 11.3 × 7.3 × 1.2 in (287 × 185 × 30 mm) |
| External Dimensions | 11.5 × 8.4 × 1.3 in (293 × 214 × 33 mm) |
| Tray Depth | 1.2 in (30 mm) |
| Weight | ~0.4 lb (0.18 kg) |
| Hold-Down Method | 42″ strap (120 kg tensile) or J-bolt/clamp (not included) |
| Ventilation | Full-flow vents with electrolyte reservoir |
| Temperature Rating | -20 °F to +320 °F (-29 °C to +160 °C) |
| Chemical Resistance | Acid, UV, oil, gas resistant |
| Certifications | USCG CFR 183.420; ABYC E-10.7 |
