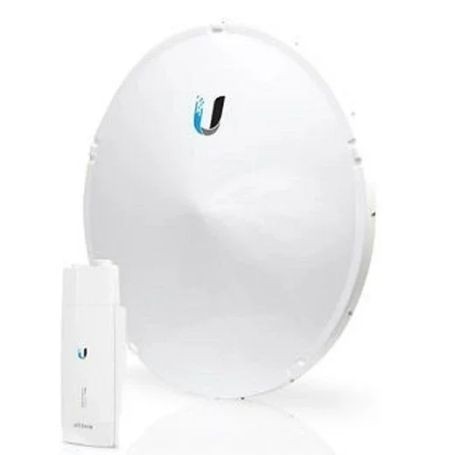

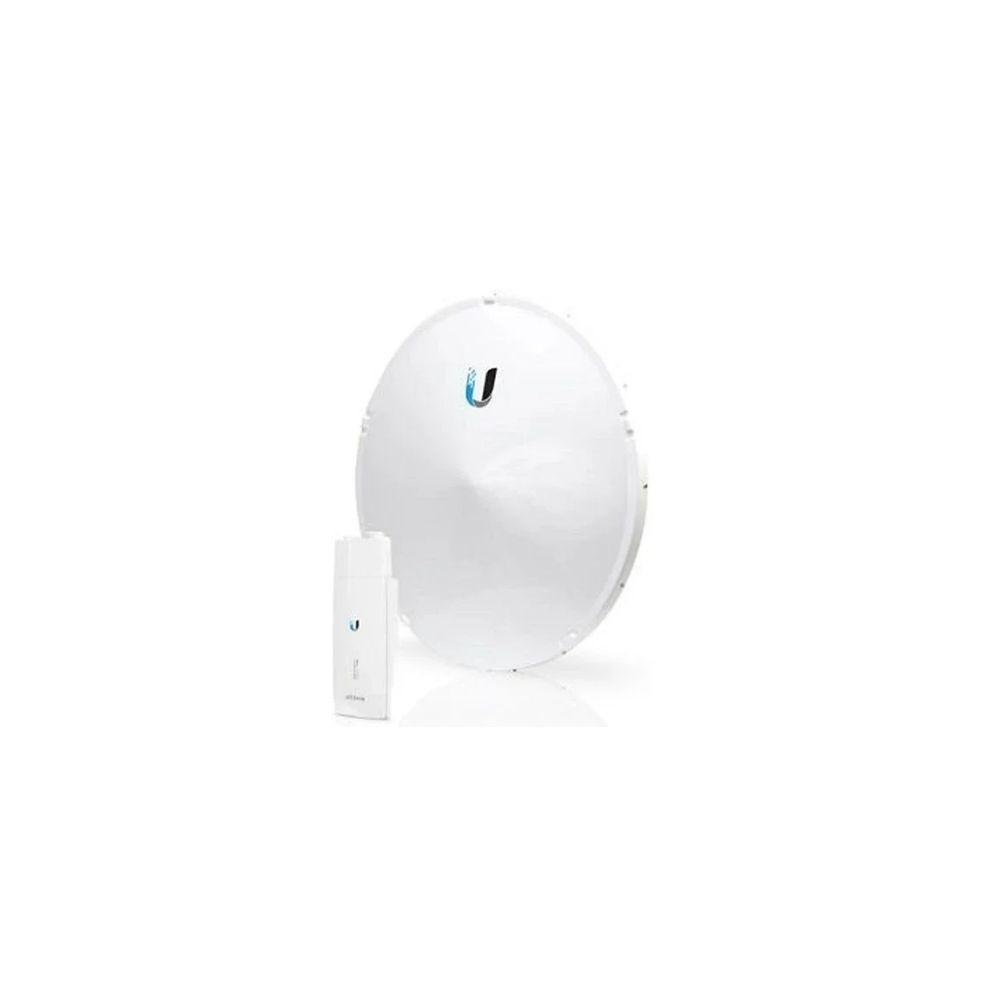

Ubiquiti AF11-Complete-HB – airFiber 11 GHz High-Band Backhaul Radio with 35 dBi Dish Antenna
Overview
The Ubiquiti AF11-Complete-HB is an airFiber 11 GHz high-band point-to-point backhaul radio system supplied with an airFiber AF-11 radio and AF-11G35 35 dBi dish antenna. It is designed for licensed 11 GHz wireless backhaul deployments where high-capacity, long-distance point-to-point connectivity is required.
The system supports up to 1.2+ Gbps throughput and a maximum range of 300+ km, subject to regulatory requirements, link conditions, antenna configuration, and deployment environment. The included high-band duplexer enables SISO operation, while a second AF-11-DUP-H duplexer can be used for MIMO operation.
Technical Information
The AF-11 radio provides one Gigabit Ethernet RJ45 port and one 10/100 MbE RJ45 port. It supports passive PoE through all four pairs or terminal-block direct wiring and operates from a 38–56V DC input range. Maximum power consumption is 36W.
The radio operates across the 10.7–11.7 GHz range, depending on regional regulations, with selectable channel bandwidths from 3.5 MHz through 56 MHz. The system supports SISO and MIMO modes and uses 128-bit AES encryption.
Compatibility
The radio is compatible with the AF-11G35 mounting system supplied as part of the complete kit. The AF-11G35 antenna provides 35 dBi gain and is designed for 10.3–11.7 GHz operation. For MIMO deployment, the radio supports an additional AF-11-DUP-H high-band duplexer.
Applications
- Licensed 11 GHz point-to-point wireless backhaul
- Long-distance network and telecom backhaul links
- High-capacity wireless infrastructure connections
- ISP and WISP network backhaul deployments
- Enterprise or service-provider sites requiring long-range PtP connectivity
Key Features
- 11 GHz high-band point-to-point backhaul radio system
- Up to 1.2+ Gbps maximum throughput and 300+ km maximum range
- Includes 35 dBi AF-11G35 dish antenna
- Selectable 3.5–56 MHz channel bandwidths with SISO/MIMO support
- 50V DC, 1.2A Gigabit PoE adapter included
DC Supplies Product Note
The AF11-Complete-HB uses a 50V DC, 1.2A Gigabit PoE adapter and supports a 38–56V DC input range. Verify the available power infrastructure, grounding, RF licensing, and regional 11 GHz frequency requirements before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | AF11-Complete-HB |
| Product Type | 11 GHz High-Band Point-to-Point Backhaul Radio with Dish Antenna |
| Radio | airFiber AF-11 |
| Antenna | airFiber AF-11G35 |
| Operating Frequency | 10.7–11.7 GHz, region dependent |
| Antenna Gain | 35 dBi |
| Maximum Throughput | 1.2+ Gbps |
| Maximum Range | 300+ km |
| Modes | SISO / MIMO |
| Channel Bandwidth | 3.5 / 5 / 7 / 10 / 14 / 20 / 28 / 30 / 40 / 50 / 56 MHz selectable |
| Networking Interfaces | 1 × GbE RJ45; 1 × 10/100 MbE RJ45 |
| Power Method | Passive PoE 4-pairs or terminal-block direct wire |
| Power Supply | 50V DC, 1.2A Gigabit PoE adapter included |
| Supported Voltage Range | 38–56V DC |
| Maximum Power Consumption | 36W |
| RF Connectors | 4 × weatherproof SMA; 2 × waterproof N-Type |
| Radio Dimensions | 327 × 112 × 86 mm |
| Radio Weight | 2.3 kg |
| Antenna Dimensions | 811 × 811 × 460 mm |
| Antenna Gain | 35 dBi |
| Antenna Wind Survivability | 200 km/h (125 mph) |
| Encryption | 128-bit AES |
| Operating Temperature | -40 to 55°C (-40 to 131°F) |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
What is the Ubiquiti AF11-Complete-HB?
It is a complete airFiber 11 GHz high-band point-to-point backhaul system consisting of an AF-11 radio and AF-11G35 35 dBi dish antenna.
What throughput does the AF11-Complete-HB support?
Ubiquiti specifies a maximum throughput of 1.2+ Gbps.
What frequency does the AF11-Complete-HB use?
The system operates in the 10.7–11.7 GHz range, with actual usable frequencies dependent on regional regulations.
Does the system support MIMO?
Yes. The radio supports SISO and MIMO modes. The supplied high-band duplexer enables SISO operation; a second AF-11-DUP-H duplexer is required for MIMO operation.
What power supply is included?
The system includes a 50V DC, 1.2A Gigabit PoE adapter.
