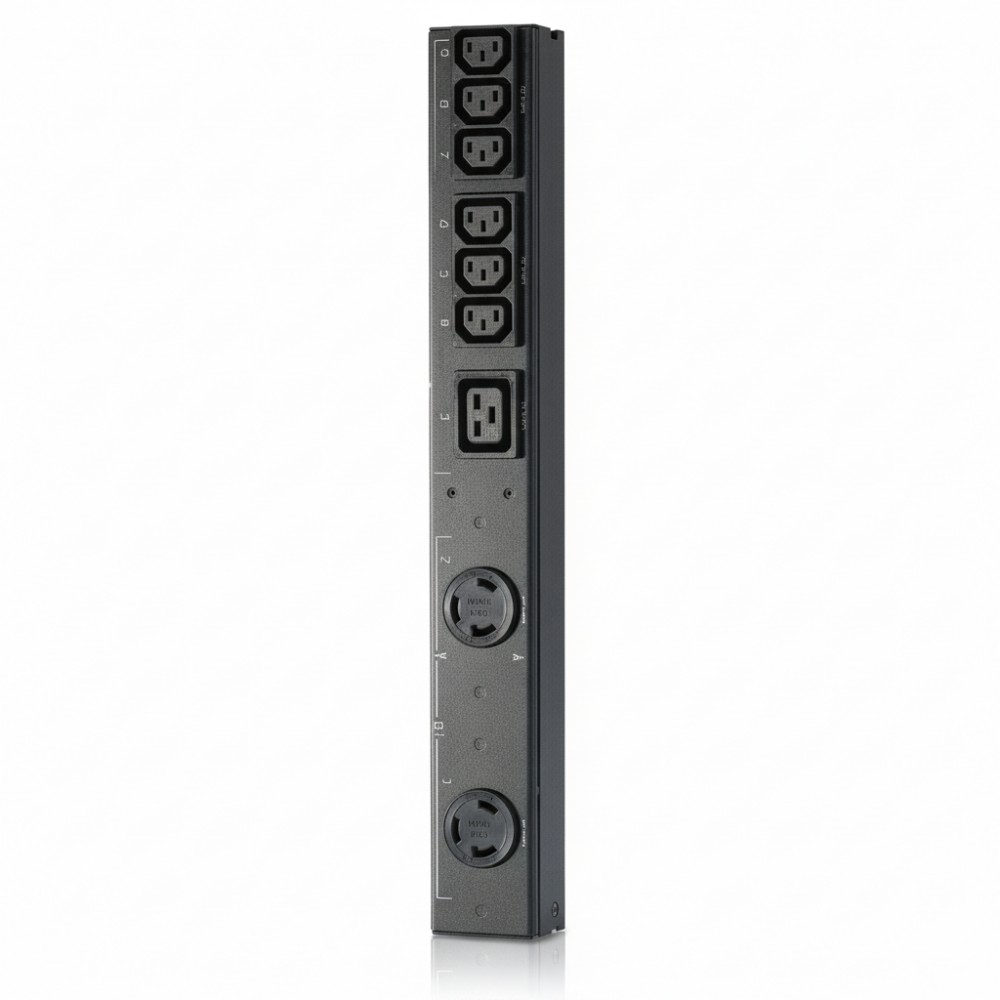

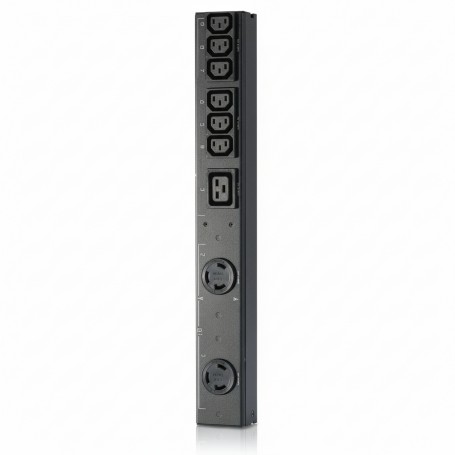

APC AP7569 NetShelter Basic Rack PDU, Zero U, 14.4kW, 208V View larger

APC AP7569 NetShelter Basic Rack PDU, Zero U, 14.4kW, 208V

AP7569

New

In Stock

Zero U PDU with 14.4 kW capacity, 208 V input, 24 C13 + 4 C19 + 2 L6-30R outputs, vertical mounting.
×




$1,279.00

Detailed Specifications

APC AP7569 – Basic Rack PDU (Zero U, 14.4 kW)

Overview

The APC AP7569 is a Zero U basic rack PDU designed for high-density rack environments needing efficient, reliable power distribution without consuming rack units. It supports 208 V input and delivers up to 14.4 kW of capacity via 24 IEC-C13 outlets, 4 IEC-C19 outlets, and 2 NEMA L6-30R receptacles. Its vertical mounting design saves horizontal rack space and ensures power is delivered close to loads. The PDU includes internal overload protection via dual 20 A circuit breakers and a 3 ft power cord terminating in a CS8365C plug. It’s ideal for data center racks, server cabinets, and network closets that require simple, robust, and scalable power distribution.

Key Features

  1. Zero U vertical mounting saves valuable rack space

  2. 24 × IEC-C13, 4 × IEC-C19, and 2 × NEMA L6-30R outlets for diverse equipment

  3. 14.4 kW total capacity at 208 V

  4. Dual internal circuit breakers for overload protection

  5. Comes with a 3 ft CS8365C input cord

Specifications

SpecificationDetail
Brand APC
Part Number AP7569
Product Type Basic Rack Power Distribution Unit (PDU)
Form Factor Zero U vertical
Input Voltage 208 V
Capacity 14.4 kW
Input Connector CS8365C plug
Cord Length 0.91 m (3 ft)
Output Connectors 24 × IEC-C13
Additional Outputs 4 × IEC-C19 + 2 × NEMA L6-30R
Maximum Input Current 40 A
Overload Protection Dual 20 A circuit breakers
Mounting Vertical on rack side channels
Dimensions (H×W×D) 1778 × 56 × 95 mm
Weight 7.30 kg
Operating Temp Range –5 °C to +45 °C
