Detailed Specifications

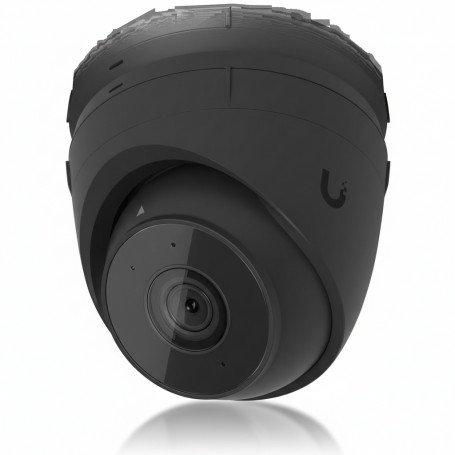

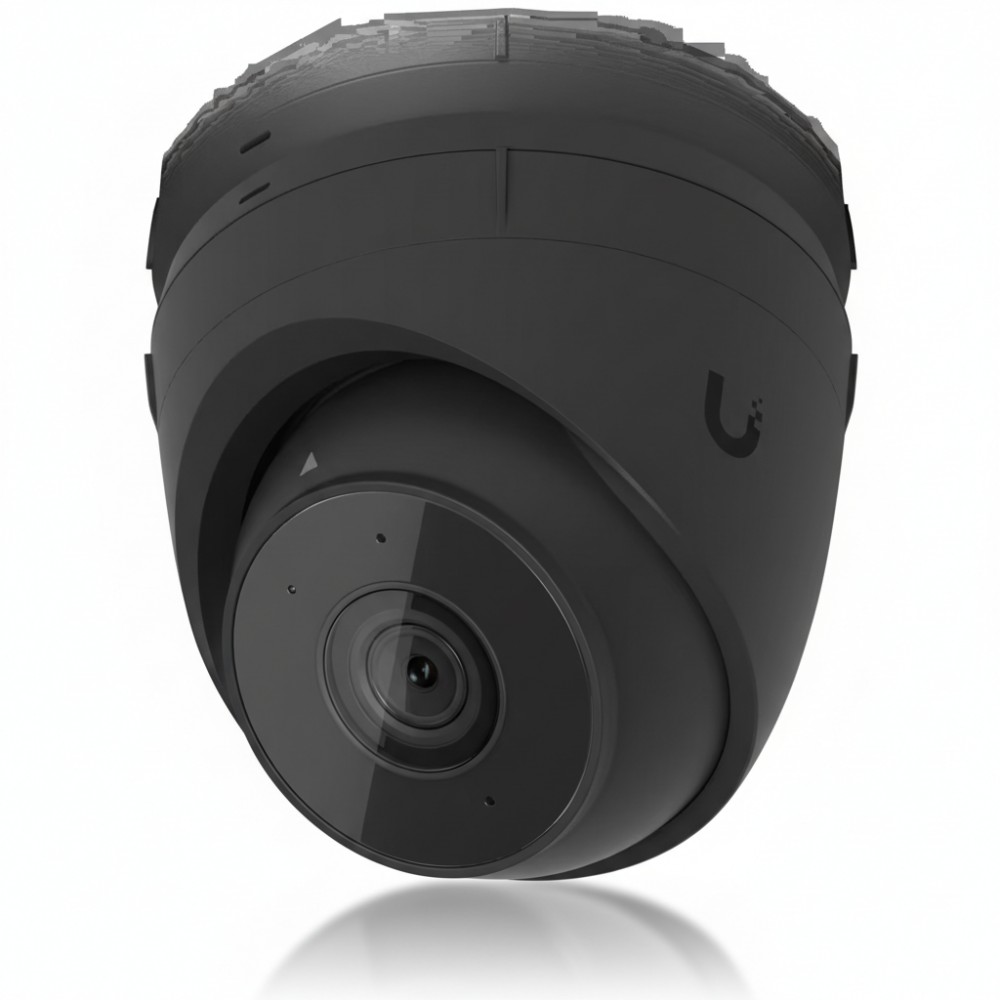

Ubiquiti UVC-G5-Turret-Ultra-B Outdoor PoE Surveillance Camera
Overview :
The Ubiquiti Inc. UVC-G5-Turret-Ultra-B is a PoE-powered turret IP security camera designed for outdoor surveillance with wide-angle coverage and night vision. It captures up to 4 MP (2688 × 1512) video at 30 fps with built-in IR LEDs for low-light environments. The camera's weatherproof and impact-resistant enclosure supports exposed installations on walls or ceilings. It integrates with the UniFi Protect platform for centralized management and event detection.
Key Features :
PoE power and data over single RJ45 port
102.4° wide field of view coverage
Built-in IR for night vision up to ~30 m
Integrated microphone for audio capture
Technical Specifications :
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UVC-G5-Turret-Ultra-B |
| Product Type | Outdoor PoE Surveillance Camera |
| Image Sensor | 1/2.4″ CMOS |
| Resolution | 2688 × 1512 (4 MP) |
| Max Frame Rate | 30 fps |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Night Vision | Built-in IR LEDs up to ~30 m |
| Power Method | PoE 802.3af (37-57 V DC) |
| Max Power Consumption | 4 W |
| Networking | 10/100 Mbps RJ45 |
| Audio | Integrated microphone |
| Weather Resistance | IP66 |
| Impact Resistance | IK04 |
| Mounting | Wall/ceiling adjustable surface mount |
| Operating Temp | −30 °C to +50 °C |
