Lenovo 30GA005TUS Thinkstation P5 Intel Xeon W3-2435 3.10GHZ 22.5MB Windows View larger
Previous Next

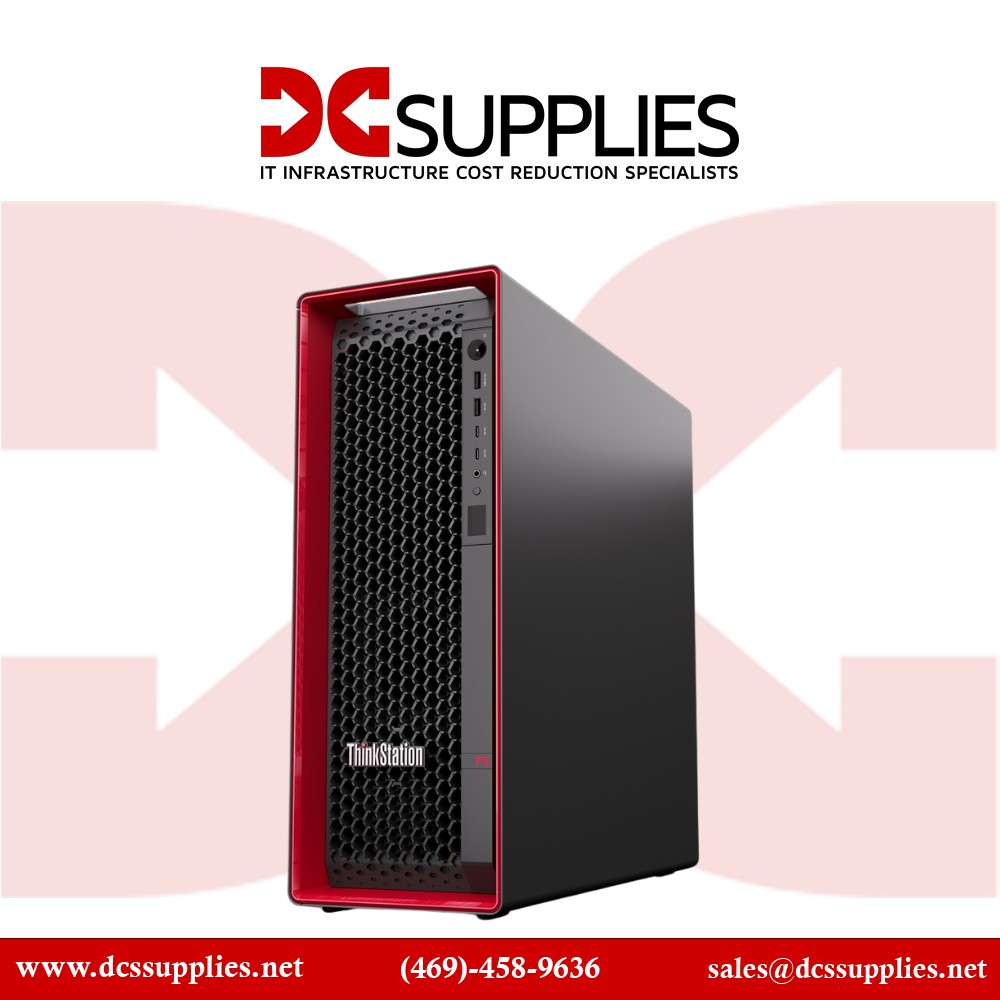

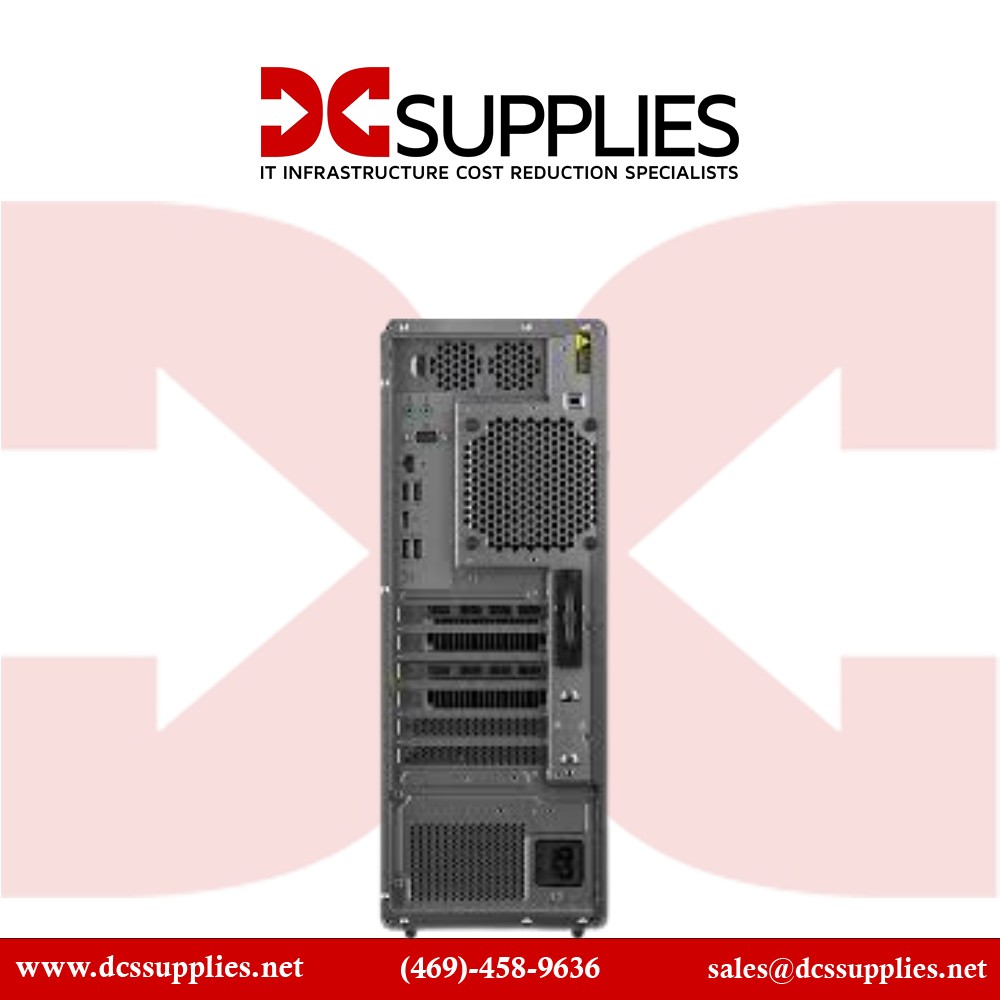

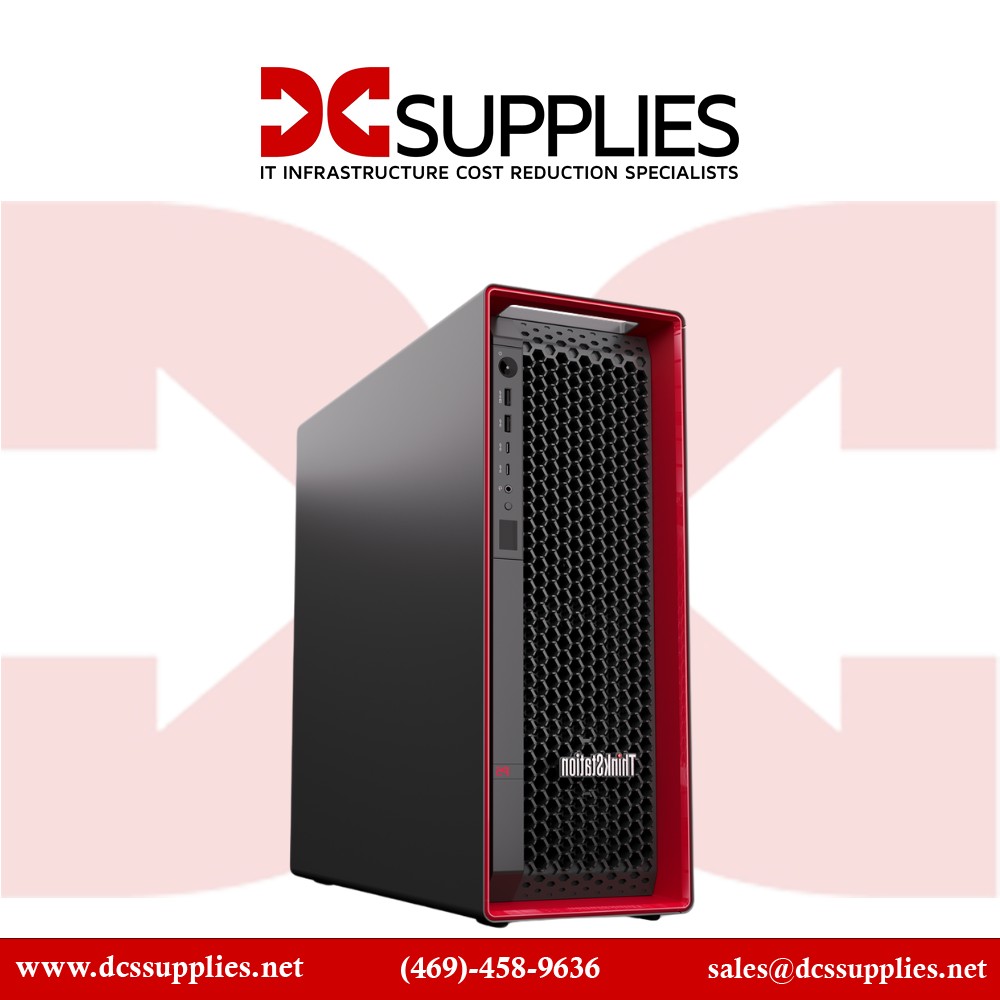

Lenovo 30GA005TUS Thinkstation P5 Intel Xeon W3-2435 3.10GHZ 22.5MB Windows

New

Lenovo 30GA005TUS Thinkstation P5 Intel Xeon...

×




  • New

Detailed Specifications

Lenovo

30GA005TUS ThinkStation P5 Tower Workstation Intel Xeon W3‑2435

The ThinkStation P5 (Model 30GA005TUS) is a high-performance 8-core, 16-thread Workstation built around the Intel Xeon W3‑2435 vPro processor (3.10 GHz base, up to 4.5 GHz Turbo, 22.5 MB cache). With 64 GB DDR5‑4800 ECC memory and a 2 TB NVMe PCIe Gen 4 SSD (Opal 2.0 encrypted), this system offers exceptional responsiveness and capacity for virtualization, engineering, simulation, and multimedia workflows. The inclusion of a certified NVIDIA RTX A2000 with 12 GB GDDR6 graphics ensures ISV-certified acceleration for CAD and content production tools.

Features

Housed in Lenovo signature Aston Martin-inspired tower design, the ThinkStation P5 supports up to 512 GB DDR5 ECC RDIMM across eight memory slots, dual-GPU options, and up to ten internal drives (3×3.5″ + 7×M.2, or quad M.2 adapter configurations) for maximum storage density.

Advanced Options

The system includes a 750 W or 1000 W Platinum PSU, tool-less access, front M.2 bay, and advanced thermal architecture enabling quiet yet powerful sustained workloads. Compatibility with higher-end RTX GPUs up to A6000 Ada, NVLink-capable options, and full RAID support via Intel RSTe and NVMe controllers deliver flexibility for compute or rendering-heavy deployment.

Product Key Features

  • Intel Xeon W3‑2435 vPro processor: 8 cores / 16 threads, 3.10 GHz base, up to 4.5 GHz Turbo, 22.5 MB cache.

  • 64 GB DDR5‑4800 MHz ECC RDIMM (4×16 GB, expandable to 512 GB across eight slots).

  • 2 TB PCIe Gen 4 NVMe SSD (M.2 2280, Performance TLC, Opal 2.0 encryption).

  • NVIDIA RTX A2000 professional GPU with 12 GB GDDR6 memory.

  • Windows 11 Pro for Workstation (English) with vPro Enterprise for manageability.

Reliability & Performance

Designed for mission-critical computing, the ThinkStation P5 offers enterprise-grade durability and performance continuity. ECC memory safeguards data integrity, while vPro and TPM 2.0 provide enhanced security and remote management. With optional dual-GPU support and variable I/O configurations—including up to four 10 Gigabit Ethernet ports, dual expansion cards, and front-access debugging—this system is engineered for scalable performance. Tiered storage flexibility, superior cooling, and high-wattage power supply options ensure robust performance in virtualization, simulation, and graphics-intensive workloads

Key Features (Bullet List)

  • Intel Xeon W3‑2435 8-core / 16-thread processor (vPro Enterprise)

  • 64 GB DDR5‑4800 MHz ECC memory, dual-channel RDIMM

  • 2 TB PCIe Gen 4 NVMe SSD (Opal-encrypted)

  • NVIDIA RTX A2000 GPU with 12 GB GDDR6 (ISV‑certified)

  • Intel W790 chipset supporting up to 512 GB memory, 6 PCIe expansion slots

  • RAID support: SATA/NVMe & Intel RSTe controllers

  • Front-access M.2 slot, tool-free drive bays

  • Gigabit Ethernet onboard, optional 10 GbE adapters supported

  • vPro management + TPM 2.0 security + chassis intrusion switch

  • 750 W or 1000 W Platinum PSU for high-power configurations

Specifications :

Product Specifications
SpecificationDetails
Model Number 30GA005TUS
Product Type 4U Tower Workstation (ThinkStation P5 Gen 1)
CPU Intel Xeon W3‑2435 vPro (8 cores / 16 threads, 3.10–4.50 GHz Turbo, 22.5 MB)
Chipset Intel W790
Memory 64 GB DDR5‑4800 ECC RDIMM (4×16 GB), expandable to 512 GB
Storage 2 TB PCIe Gen 4 NVMe SSD (M.2 2280, Performance TLC, Opal 2.0)
GPU NVIDIA RTX A2000 (12 GB GDDR6, single-slot)
Drive Bays Up to 3× 3.5″ HDD; 7× internal M.2 or quad M.2 adapter
Expansion Slots 2× PCIe 5.0 x16, 4× PCIe 4.0 (varies via CPU/PCH lanes)
RAID & Storage Controllers Intel RSTe (SATA), optional NVMe RAID cards
Network 1× GigE onboard; optional additional up to four 10 GbE ports
Operating System Windows 11 Pro for Workstation (English)
I/O Ports Multiple USB-A/C, audio, serial; front diagnostic QR-code panel
Security Features TPM 2.0, chassis intrusion switch, vPro remote manageability
Power Supply 750 W or 1000 W 80 PLUS Platinum
Dimensions (WxDxH) ~165 × 453.9 × 446 mm (~6.5″ × 17.9″ × 17.6″)
Weight Up to ~19 kg (41.9 lbs, depending on configuration)
