Detailed Specifications

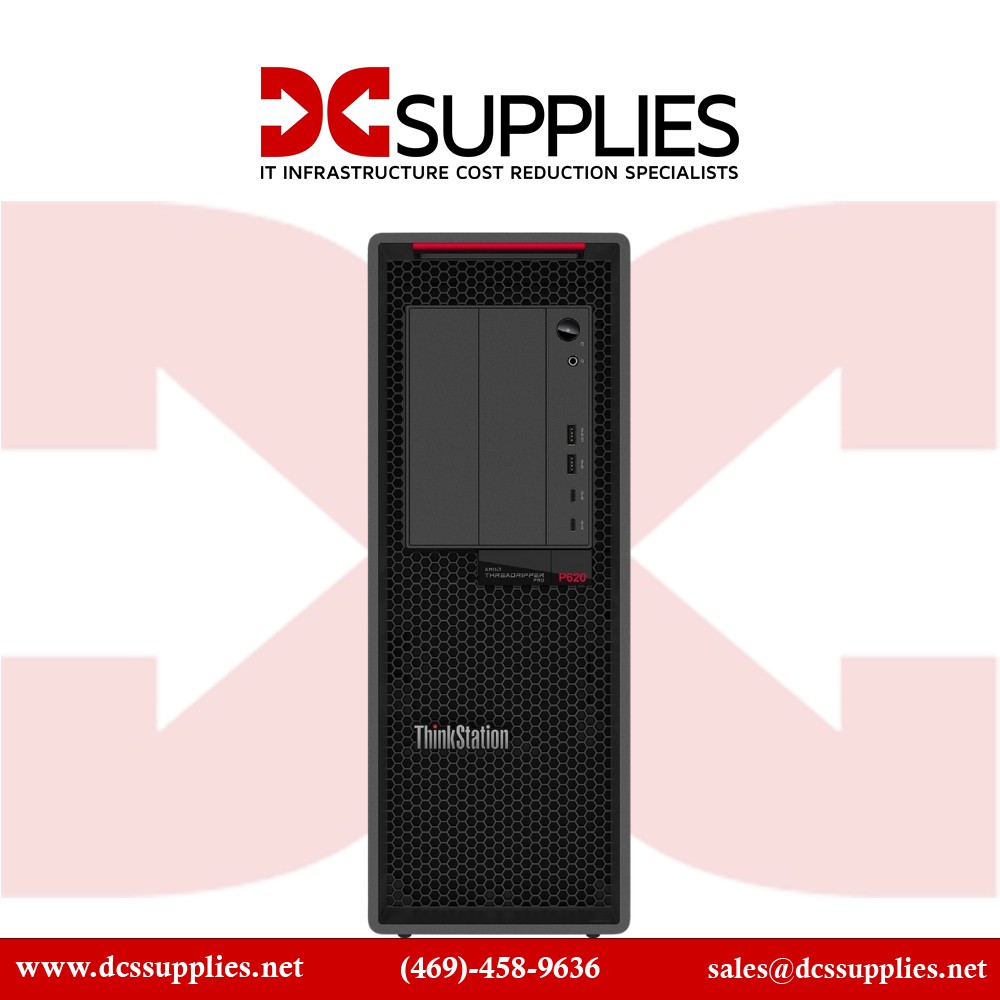

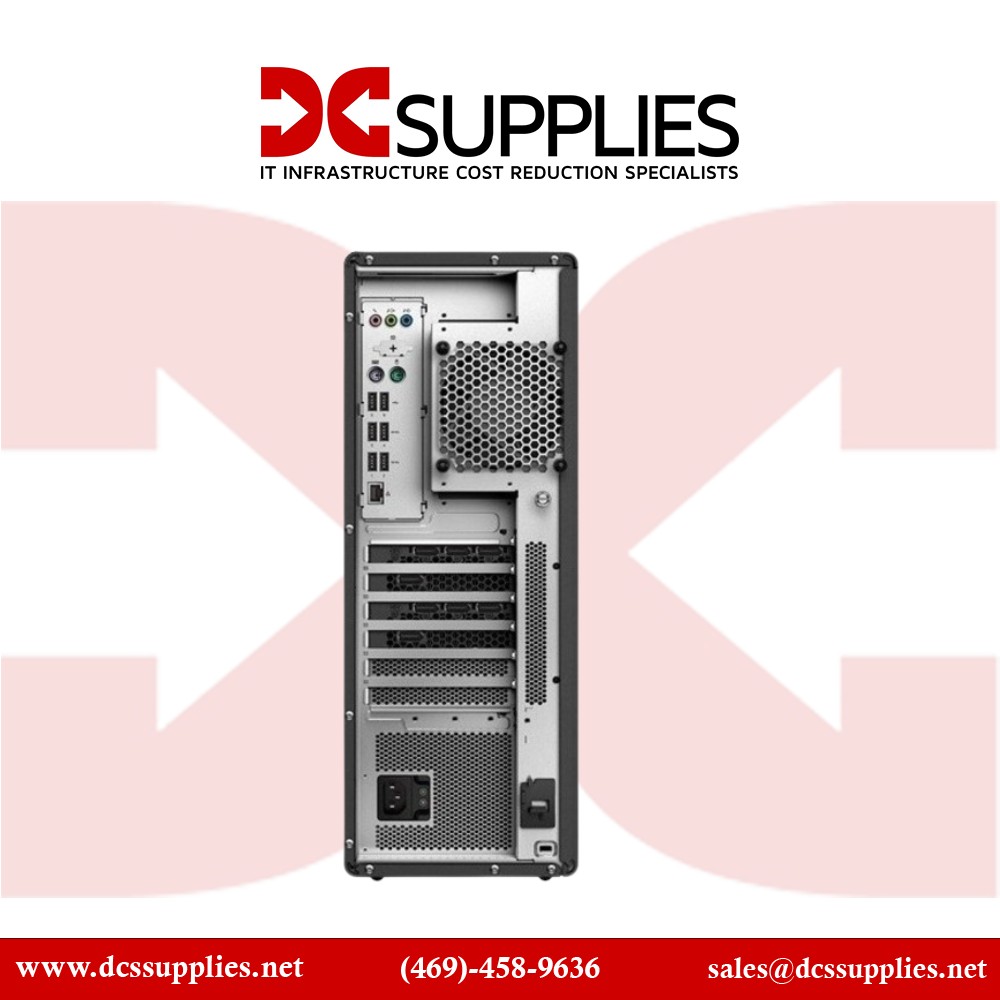

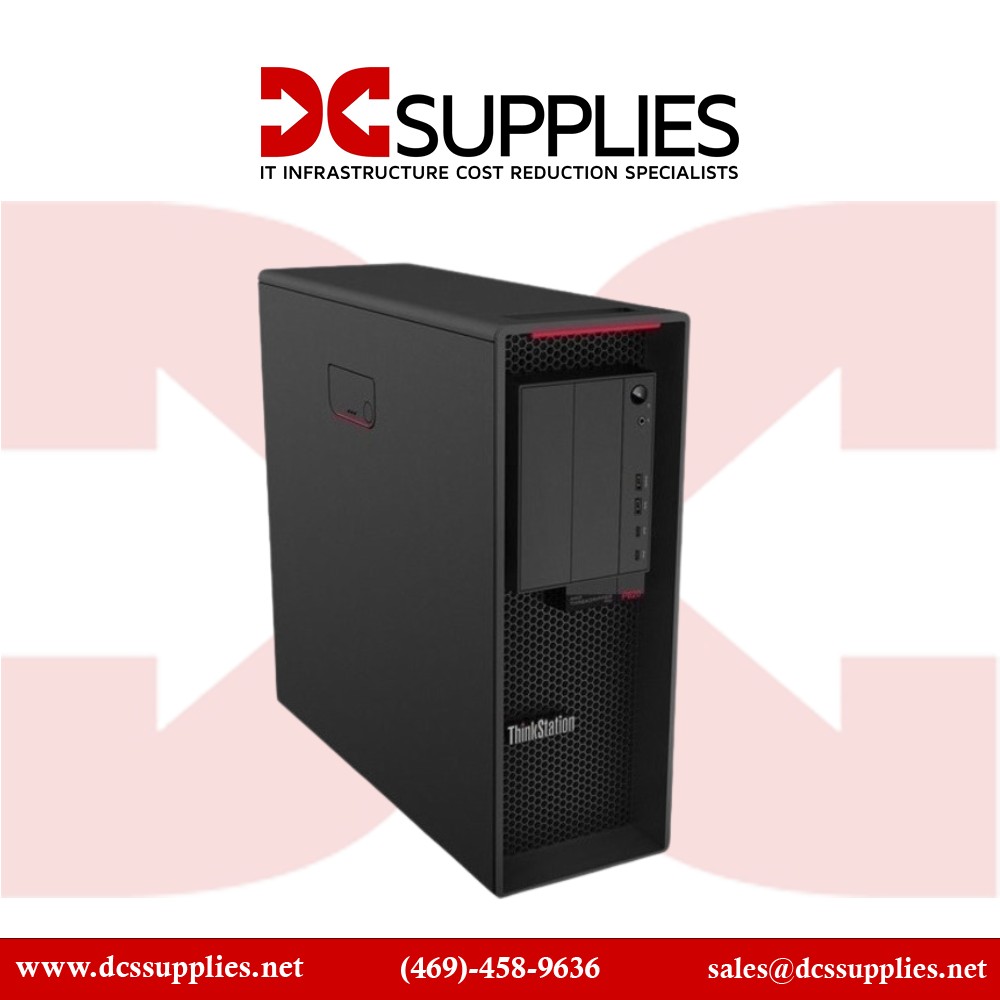

Lenovo 30E000MRUS ThinkStation P620 Tower Workstation
Overview :
For storage of your files, the 2TB M.2 NVMe PCIe 4.0 SSD offers quick access to your data. For additional internal storage, there is an extra M.2 PCIe 4.0 slot, plus two 3.5" drive bays. If you want to add external storage drives or other peripherals, the ThinkStation P620 features two 10 Gb/s USB-C 3.2 Gen 2 ports, plus six 10 Gb/s USB-A 3.2 Gen 2 ports, one of which is always on and supports fast charging, two 480 Mb/s USB-A 2.0 ports, 2 PS/2 ports, and 3.5mm input, output, and combo jacks. The dedicated NVIDIA RTX A2000 graphics card has 12GB of GDDR6 RAM, delivers a sharp, clear picture, and features four mini DisplayPort 1.4a outputs which support a maximum resolution of 7680 x 4320 @ 60 Hz. Network connectivity is achieved using an integrated 10 Gigabit Ethernet port and content from memory cards can be downloaded using an integrated 15-in-1 card reader.
Specifications :
Product Name |
ThinkServer P620 AMD Ryzen Pro 5955WX 4.0G 64GB 2TB SSD W11P 64-Bit M.2 |
Product Type |
Workstation |
Environmentally Friendly |
Yes |
Processor Manufacturer |
AMD |
Graphics Controller Manufacturer |
NVIDIA |
Graphics Controller Model |
RTX A2000 |
Bluetooth |
No |
Wireless LAN |
No |
Number of Total Memory Slots |
8 |
Optical Drive Type |
No |
Graphics Memory Capacity |
12 GB |
Graphics Memory Accessibility |
Dedicated |
Solid State Drive Interface |
PCI Express NVMe 4.0 |
Number of Processors Supported |
1 |
Number of Processors Installed |
1 |
Maximum Power Supply Wattage |
1000 W |
Product Family |
ThinkStation P620 |
Operating System Architecture |
64-bit |
Number of USB 2.0 Ports |
2 |
Total Solid State Drive Capacity |
2 TB |
Operating System Platform |
Windows |
Keyboard Localization |
English |
Operating System Language |
English |
USB Type-C |
Yes |
Limited Warranty Duration |
3 Year |
Processor Model |
5955WX |
Memory Technology |
DDR4 SDRAM |
Operating System |
Windows 11 Pro |
Chipset |
AMD WRX80 |
Form Factor |
Tower |
Processor Speed |
4 GHz |
Processor Type |
Ryzen Threadripper PRO |
RAID Levels |
0, 1, 5, 10 |
Controller Type |
Serial ATA/600 |
Standard Memory |
64 GB |
Processor Core |
Hexadeca-core (16 Core) |
Chipset Manufacturer |
AMD |
Chipset Model |
WRX80 |
RAID Supported |
Yes |
Ethernet Technology |
10 Gigabit Ethernet |
Total Number of USB Ports |
10 |
USB Type-C Detail |
2x USB-C 3.2 Gen 2 |
Memory Clock Speed |
3.20 GHz |
Number of USB 3.2 Gen 2 Ports |
6 |
Memory Configuration |
4 x 16 GB |
Height |
17.6" |
Width |
6.5" |
Depth |
18.1" |
Product Series |
P620 |
Processor Socket |
Socket SP3 |
Product Model |
30E000MRUS |
Product Line |
ThinkStation |
Error Checking |
ECC |
Maximum Memory Supported |
1 TB |
Signal Processing |
Registered |
Limited Warranty |
3 Year |
Solid State Drive Configuration |
1 x 2TB |
Number Of Ethernet Ports |
1 |
Stock Details |
Manufacturer |
Lenovo |
Manuf Part# |
30E000MRUS |
