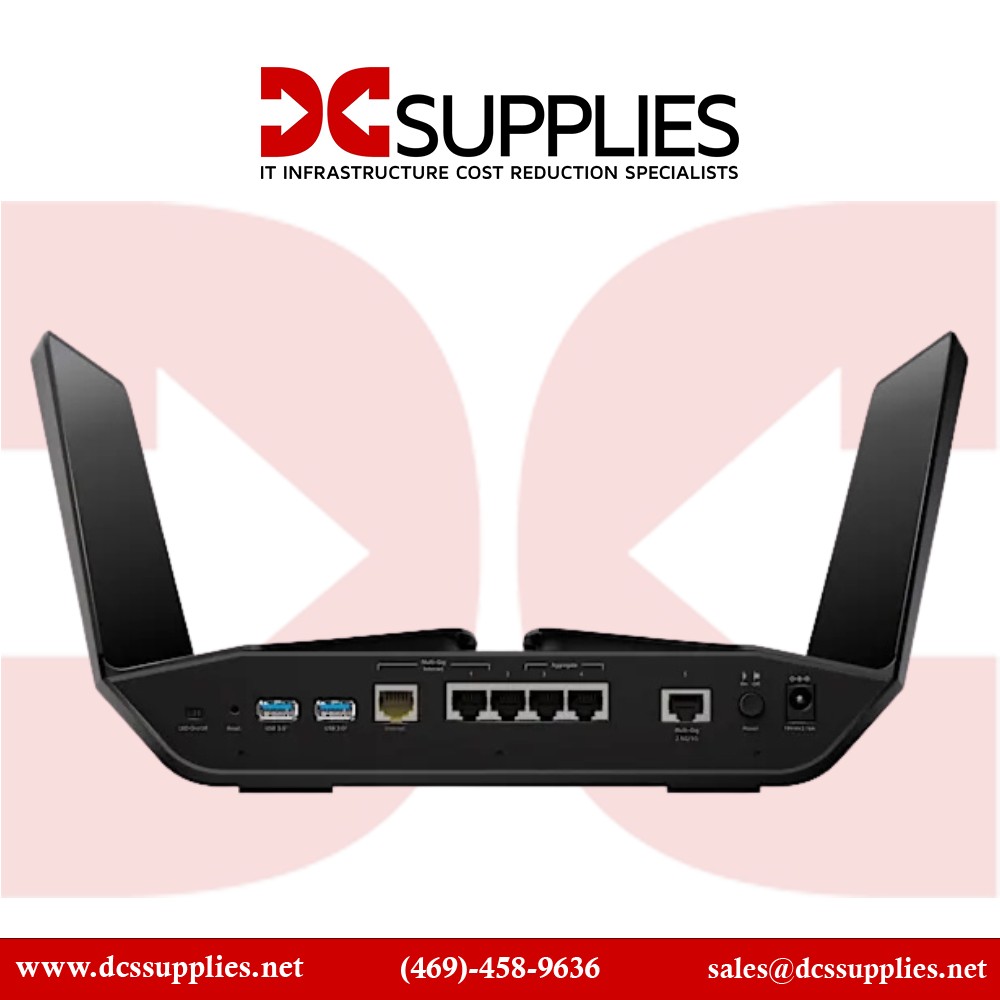

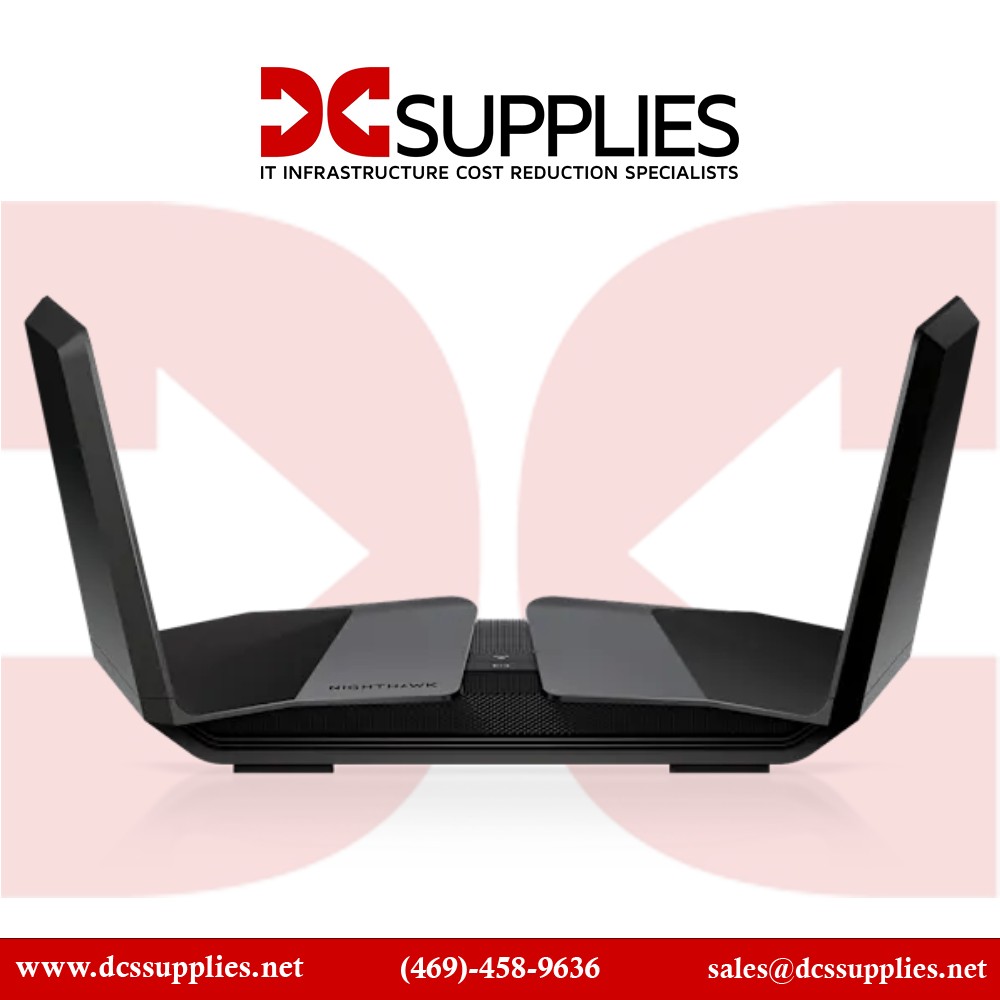

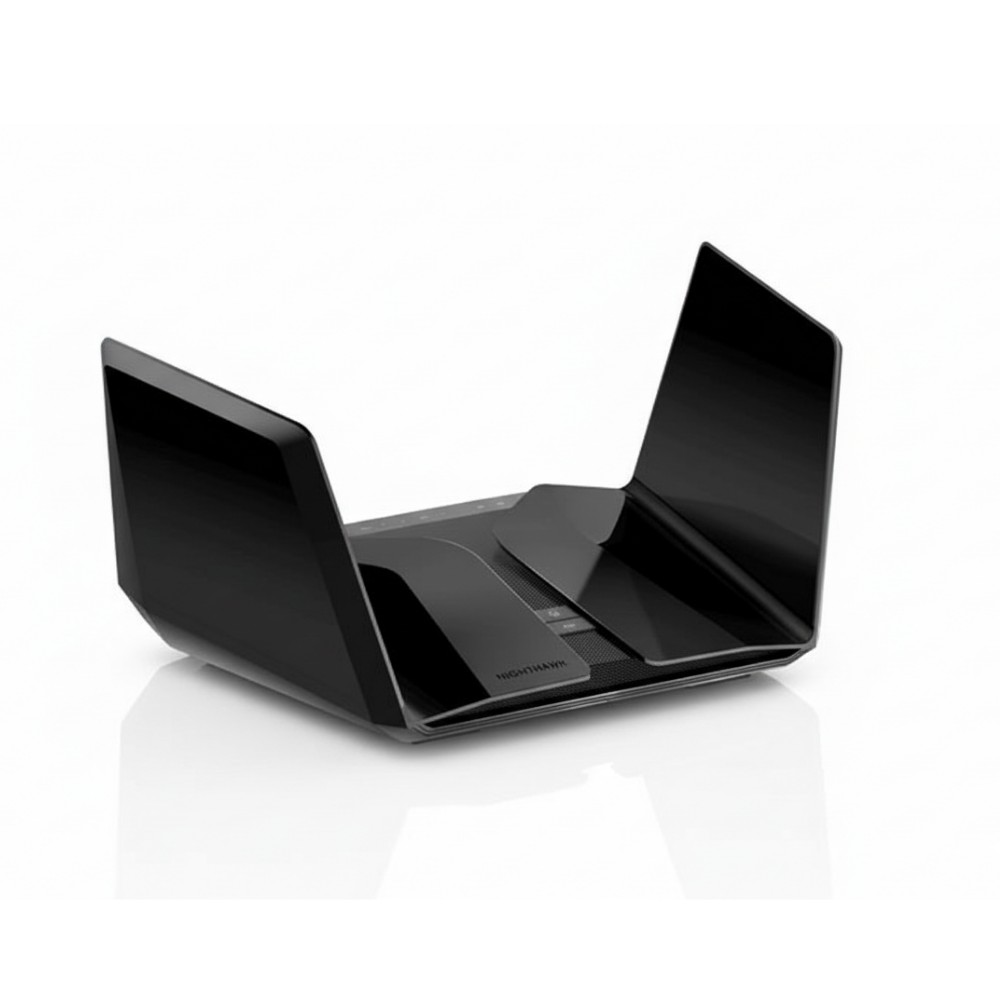

NETGEAR RAXE500-100NAS Nighthawk AXE11000 Tri-Band Router

New

Netgear Nighthawk RAXE500 Wi-Fi 6 IEEE 802.11ax Ethernet Wireless Router - 2.40 GHz ISM Band
×




  • New

Detailed Specifications

NETGEAR RAXE500-100NAS

Nighthawk AXE11000 Tri‑Band WiFi 6E Router

The NETGEAR RAXE500-100NAS is a groundbreaking WiFi 6E router offering tri-band AXE11000 performance. Engineered for ultra-fast, future-proof connectivity, it delivers seamless 8K streaming, AR/VR gaming, and support for smart-home ecosystems. With high-end hardware and advanced security, it’s perfect for tech enthusiasts, large household setups, and gigabit+ internet plans.

Features

Equipped with WiFi 6E (802.11ax), the RAXE500 introduces a dedicated 6 GHz band in addition to conventional 2.4 GHz and 5 GHz frequencies, offering unprecedented throughput and reduced congestion. It supports 12 simultaneous streams—4 per band—with speeds of 1.2 Gbps, 4.8 Gbps, and 4.8 Gbps.

Advanced Options

respectively, totaling 10.8 Gbps†. The powerful 1.8 GHz quad-core Broadcom processor and 1 GB DDR3 RAM ensure that multi-device traffic, VPN, and security filtering do not bog down performance Beyond blazing wireless speeds, the router includes a 2.5 GbE port for multi-gig internet access or high-speed LAN use,

Product Key Features

  •  WiFi 6E Tri‑Band AXE11000: 12‑stream speeds up to 10.8 Gbps across 2.4 GHz, 5 GHz, and 6 GHz bands

  •  Quad‑Core Processor: 1.8 GHz CPU with 1 GB RAM delivers smooth performance for heavy-duty usage

  •  2.5 GbE Multi‑Gig Port: Configurable as LAN or WAN; plus four Gigabit LAN ports for wired devices

  •  NETGEAR Armor® Security: Includes advanced cybersecurity and Smart Parental Controls

  •  Up to 3,500 sq ft Coverage: Eight high‑performance internal antennas provide reliable coverage for up to 60 devices

  •  Link Aggregation Support: Combine ports for greater throughput or backup WAN flexibility

Reliability & Performance

 as well as link aggregation across Gigabit ports. Its eight internal optimized antennas deliver broad coverage up to 3,500 sq ft, supporting around 60 simultaneous clients . Features like MU‑MIMO, OFDMA, Beamforming+, DFS channels, and a silent design add to its robust real-world performance

Key Features :

  • AXE11000 tri-band WiFi 6E (12‑stream)

  • 1.8 GHz quad-core CPU, 1 GB RAM & 512 MB flash

  • 2.5 GbE multi-gig port + 4× Gigabit LAN ports

  • NETGEAR Armor security & Smart Parental Controls

  • Eight internal optimized antennas, 3,500 sq ft coverage

  • Supports MU‑MIMO, OFDMA, Beamforming+, DFS

  • Link aggregation, VPN support, guest network

  • Nighthawk App setup, Alexa/Google Assistant compatible

SpecificationDetails
Model Number RAXE500-100NAS
Product Type Tri‑Band WiFi 6E Router
WiFi Standard IEEE 802.11ax (WiFi 6E) – AXE11000
WiFi Speed 1.2 Gbps (2.4 GHz) + 4.8 Gbps (5 GHz) + 4.8 Gbps (6 GHz)
Streams 12 (4×4×4)
Processor Broadcom BCM4908 quad‑core 1.8 GHz
Memory 1 GB DDR3 RAM + 512 MB NAND flash
Antennas 8× internal dipole antennas
Ethernet Ports 1× Gigabit WAN, 4× Gigabit LAN, 1× 2.5 GbE LAN/WAN
USB Ports 2× USB 3.0
Security WPA3, NETGEAR Armor™, VPN, guest network
Coverage Area Up to 3,500 sq ft (~325 m²)
Dimensions Folded: 11.7×8.7×3.1 in; Unfolded: 13.5×8.7×6.7 in
Weight 3.2 lb (1.45 kg)
