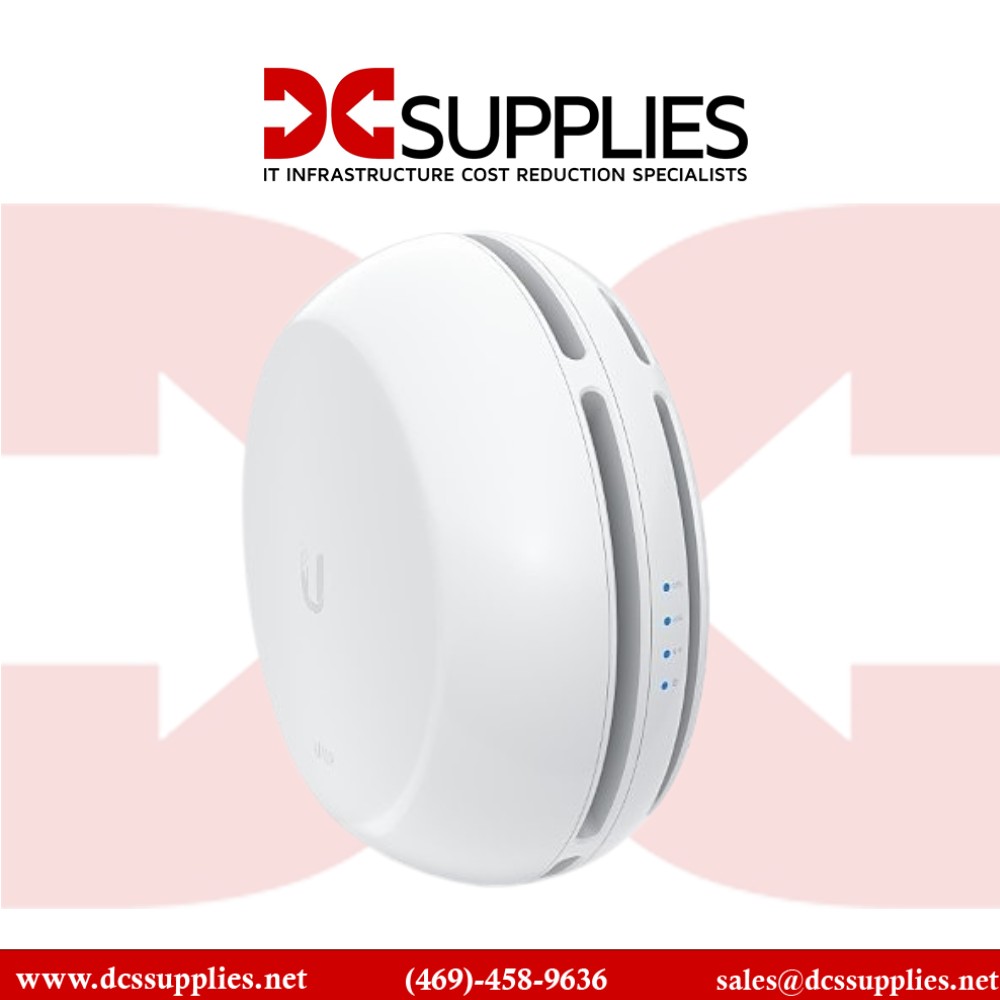

Ubiquiti Networks AF60-HD-US airFiber 60 HD Wireless Bridge View larger
Previous Next

Ubiquiti Networks AF60-HD-US airFiber 60 HD Wireless Bridge

AF60-HD-US

New

High‑Throughput 60 GHz PtP Bridge with SFP+
×




Detailed Specifications

Ubiquiti AF60‑HD‑US

airFiber 60 HD 60 GHz Wireless Bridge

The Ubiquiti airFiber 60 HD (AF60‑HD‑US) is a high-performance point-to-point wireless bridge designed for ultra-reliable connectivity over mid-range distances. Operating in the 60 GHz spectrum, this outdoor dish bridge delivers up to 6 Gbps of total data throughput with channel bonding across distances up to 2 km. Engineered for ISPs, enterprise campuses, and high-performance wireless backhaul applications, it offers crystal-clear, low-latency links with minimal interference.

Features :

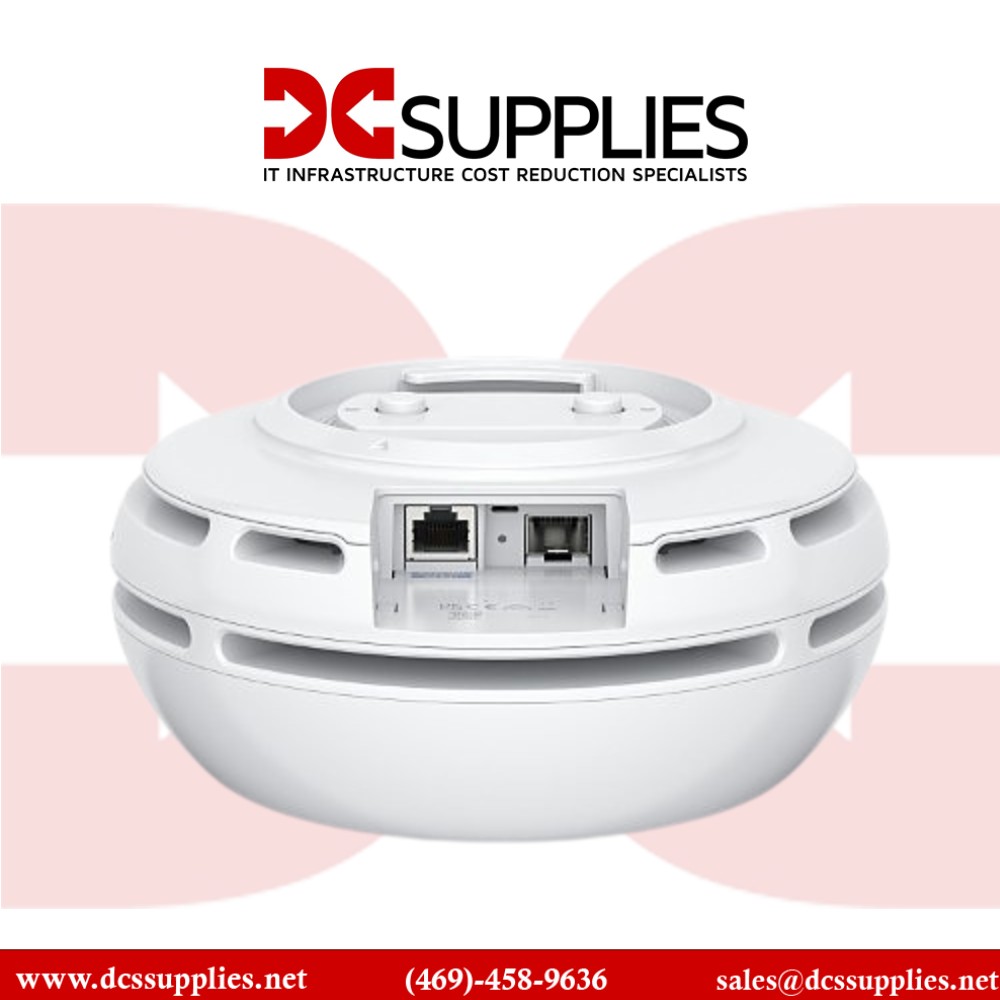

This wireless bridge features both a Gigabit RJ-45 PoE port and a 10 GbE SFP+ uplink, ensuring flexible deployment and future-proofed fiber connectivity. The included 48 V, 0.65 A gigabit PoE adapter simplifies installation and reduces cable clutter. Built from aluminum alloy and UV-stabilized plastic, the airFiber 60 HD withstands harsh outdoor conditions with an IPX6-rated enclosure and wind resistance up to 200 km/h.

Advanced Options :

Equipped with a quad-core ARM Cortex A72 processor (1.6 GHz) and 2 GB DDR4 memory, the AF60‑HD enables responsive management and real-time diagnostics. The built-in GPS module synchronizes channels for improved performance, while WPA2‑PSK AES ensures secure wireless communication. Configuration and monitoring via UISP allow seamless integration into wireless network architectures, with Bluetooth-based setup via UISP mobile app streamlining initial deployment and management.

Product Key Features

  • Up to 6 Gbps throughput with channel bonding
  • Low-interference 60 GHz band for point-to-point links
  • Includes 48 V Gigabit PoE adapter and pole mount
  • 1 GbE RJ‑45 plus 10 GbE SFP+ uplink
  • Integrated GPS, WPA2-PSK encryption, Bluetooth setup
  • Rugged IPX6-rated enclosure for outdoor deployment

Reliability & Performance :

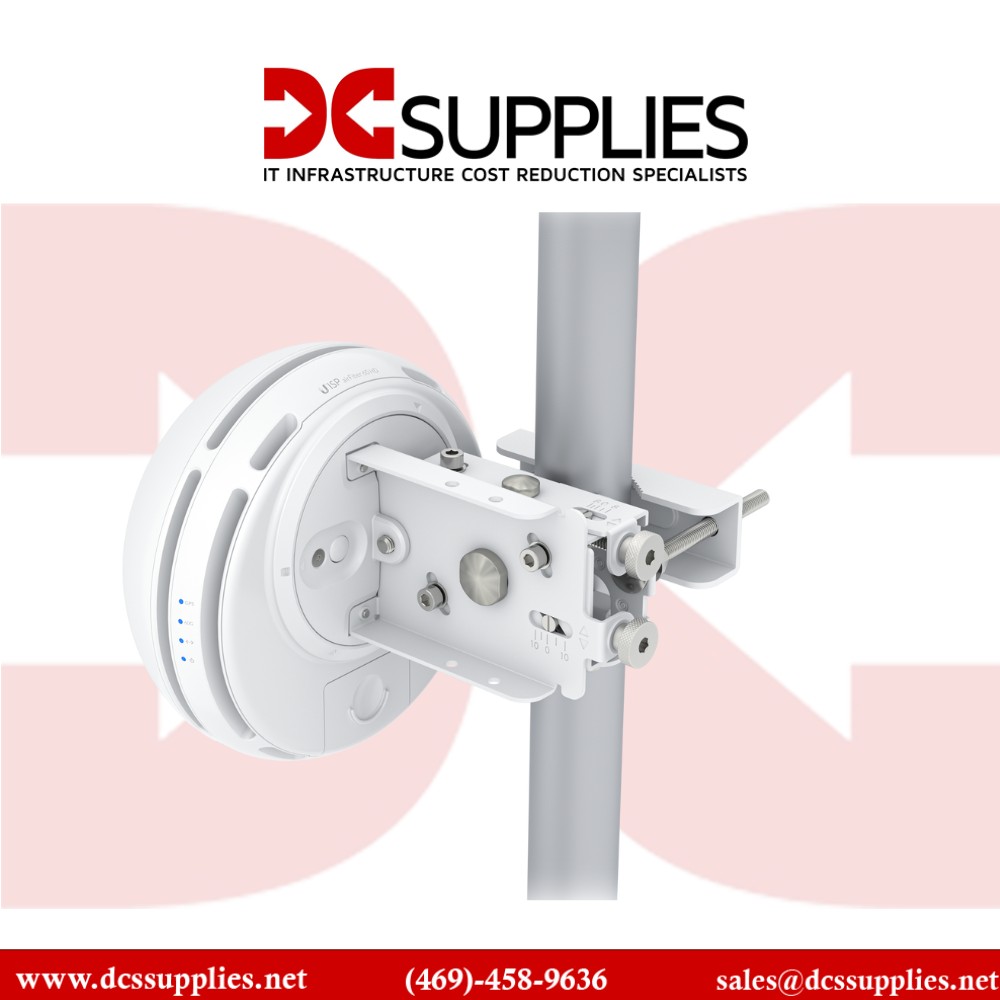

The airFiber 60 HD delivers exceptional performance with its 60 GHz operation, providing up to 6 Gbps throughput with channel bonding while maintaining minimal interference. Its rugged aluminum alloy and UV-stabilized plastic construction ensures durability in extreme conditions, with an IPX6 rating and wind resistance up to 200 km/h. The precision-alignment pole mount ensures accurate dish orientation, while operating temperatures from –40°C to 55°C guarantee consistent performance in diverse environments.

Key Features :

  • 60 GHz point-to-point wireless link up to 2 km
  • Throughput up to 6 Gbps with channel bonding
  • 1 GbE RJ‑45 PoE + 10 GbE SFP+ port
  • Integrated GPS and WPA2‑PSK AES encryption
  • Bluetooth setup via UISP app
  • IPX6-rated durable housing with precision mount

Specifications :

SpecificationDetails
Model Number AF60‑HD‑US
Product Type 60 GHz Wireless Bridge (PtP)
Wireless Frequency 60 GHz (57–66 GHz)
Max Throughput 3.8 Gbps / 6 Gbps (with channel bonding)
Maximum Range Up to 2 km
Network Interfaces 1 × Gigabit RJ‑45 PoE, 1 × 10 GbE SFP+
Processor & Memory Quad-core ARM Cortex A72 (1.6 GHz), 2 GB DDR4
Power Consumption ≤ 29.31 W
Power Method Passive PoE (44–54 V DC), 48 V 0.65 A adapter
Antenna & Mount Integrated dish, precision 60 GHz pole mount
Enclosure Aluminum alloy & UV-stabilized plastic, IPX6
Operating Temp –40 °C to 55 °C
Security WPA2‑PSK (AES)
GPS & Synchronization GPS synchronization supported
Management Interface Bluetooth via UISP mobile app, Web UI, SSH
Certifications FCC, IC, CE, Terragraph, NDAA
Dimensions Ø189 × 89 mm (7.4 × 3.5 in) without mount
Weight 1.8 kg (3.9 lb) without mount; 2.95 kg (6.5 lb) with mount
