Detailed Specifications

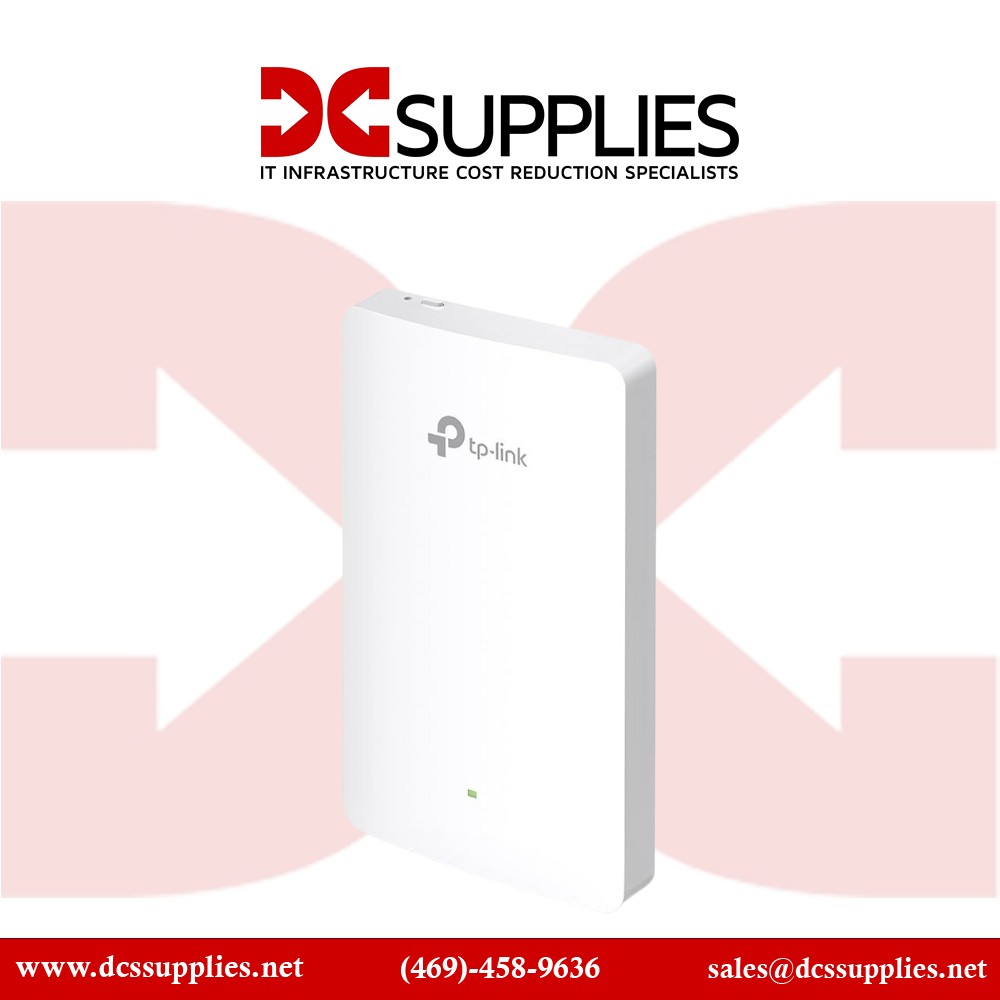

TP-LINK EAP615-WALL AX1800 Wall-Plate Dual-Band Wi-Fi 6 Access Point
Overview :

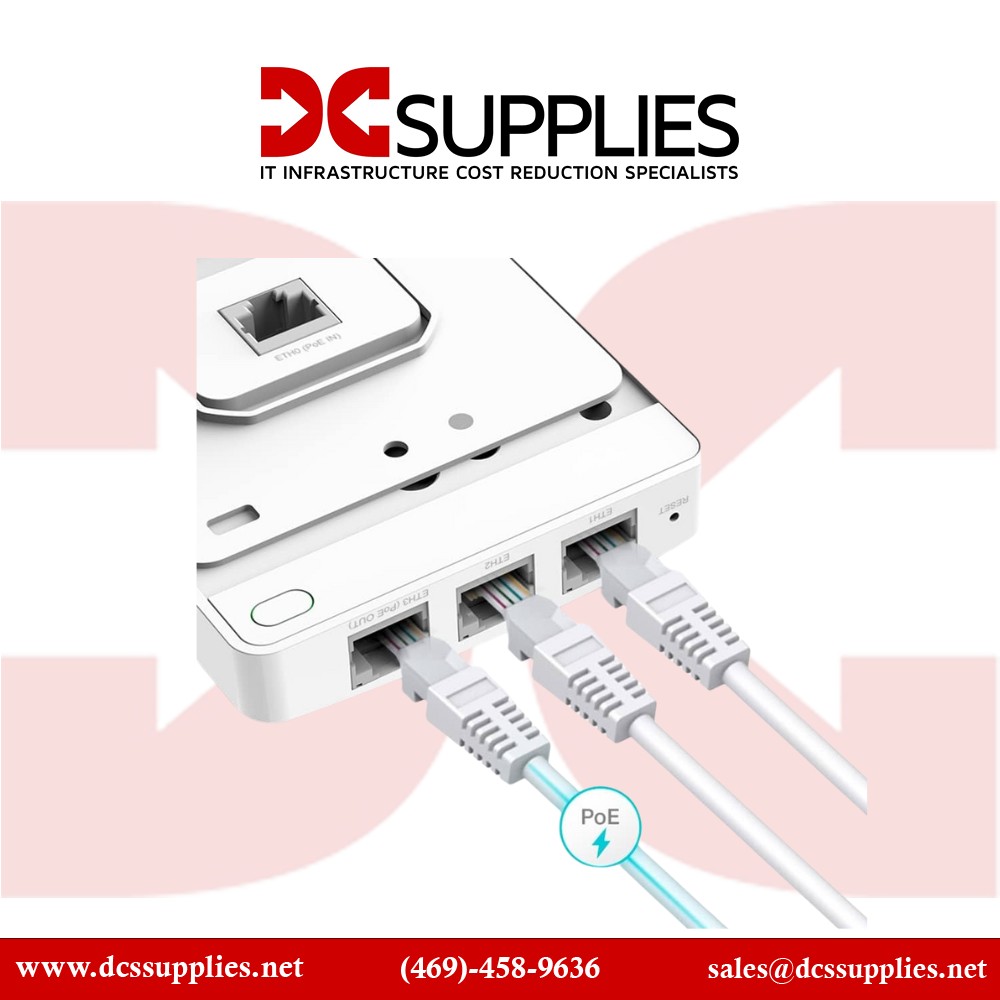

Expand your business's Wi-Fi coverage and cut through high-density spaces with the EAP615-Wall AX1800 Wireless Dual-Band Gigabit Wall Plate Access Point from TP-Link. Designed to discreetly blend into most environments when mounted onto a wall junction box using the included kit, this dual-band 802.11ax Wi-Fi access point delivers up to 1775 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies. Both power and data are carried to the EAP615-Wall through a single cable by connecting its 802.3at PoE+ complaint Gigabit Ethernet port to a compatible network switch or router. Three Gigabit Ethernet ports are also available, one of which supports up to 12W PoE+ passthrough, to connect wired devices such as computers, VoIP phones, printers, and more. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.
Specifications :
| Product Name |
AX1800 Wall-Plate Dual-Band Wi-Fi 6 Access Point |
| Product Type |
Wireless Access Point |
| Network Band |
Dual Band |
| Frequency Band |
2.40 GHz
5 GHz
|
| Antenna Form Factor |
Internal |
| Wireless LAN Standard |
802.11ax |
| Ethernet Technology |
Gigabit Ethernet |
| Number of Network (RJ-45) Ports |
4 |
| Product Family |
Omada EAP |
| PoE (RJ-45) Port |
Yes |
| Total Number of Antennas |
4 |
| Indoor / Outdoor |
Indoor |
| Wireless Transmission Speed |
1.76 Gbit/s |
| Form Factor |
Wall Mountable
Wall Plate
|
| Environmentally Friendly |
Yes |
| Encryption Standard |
WPA2-ENT
WPA3-ENT
WPA3-Personal
WPA-PSK
WPA2-PSK
WPA-ENT
|
| Number of Internal Antennas |
4 |
| Data Encryption |
Yes |
| MIMO Technology |
Yes |
| Beamforming Technology |
Yes |
| PoE PD Port |
Yes |
| Country of Origin |
China |
| Height |
0.8" |
| Width |
5.6" |
| Depth |
3.4" |
| Product Series |
EAP |
| Product Model |
EAP615-Wall |
