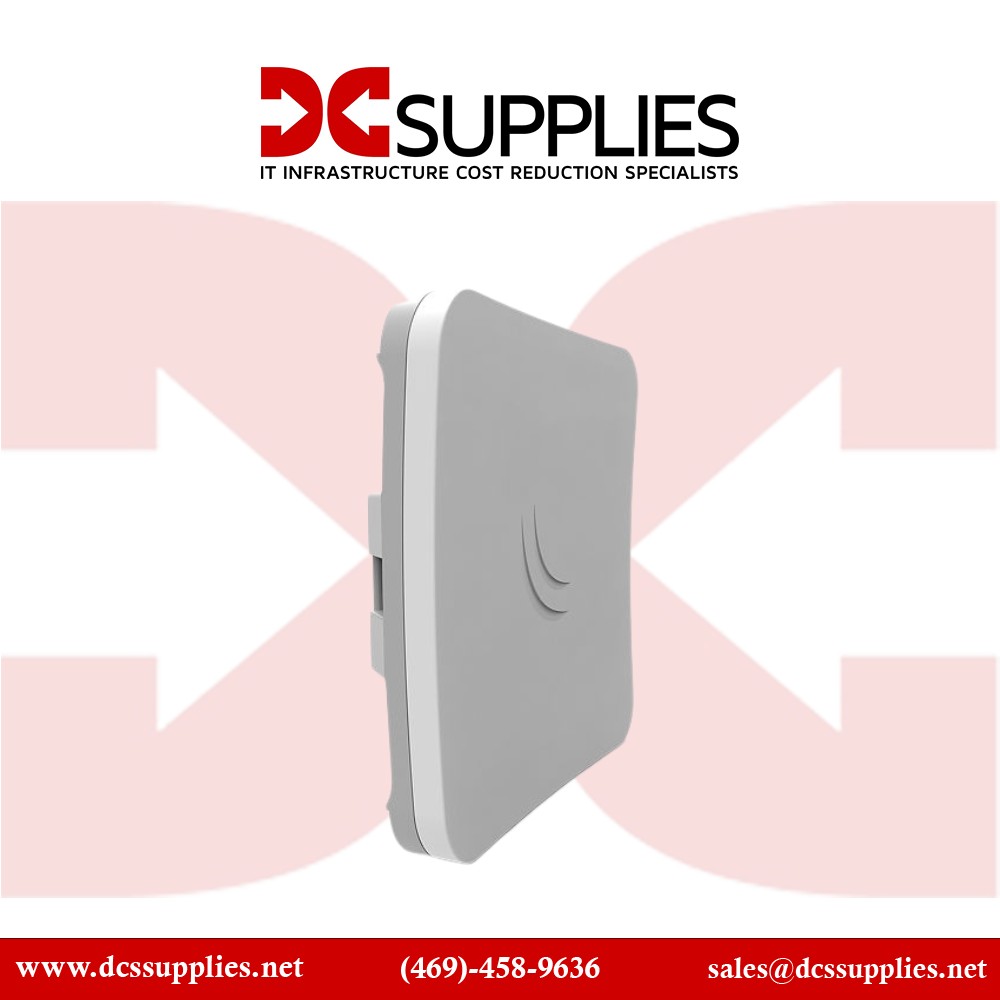

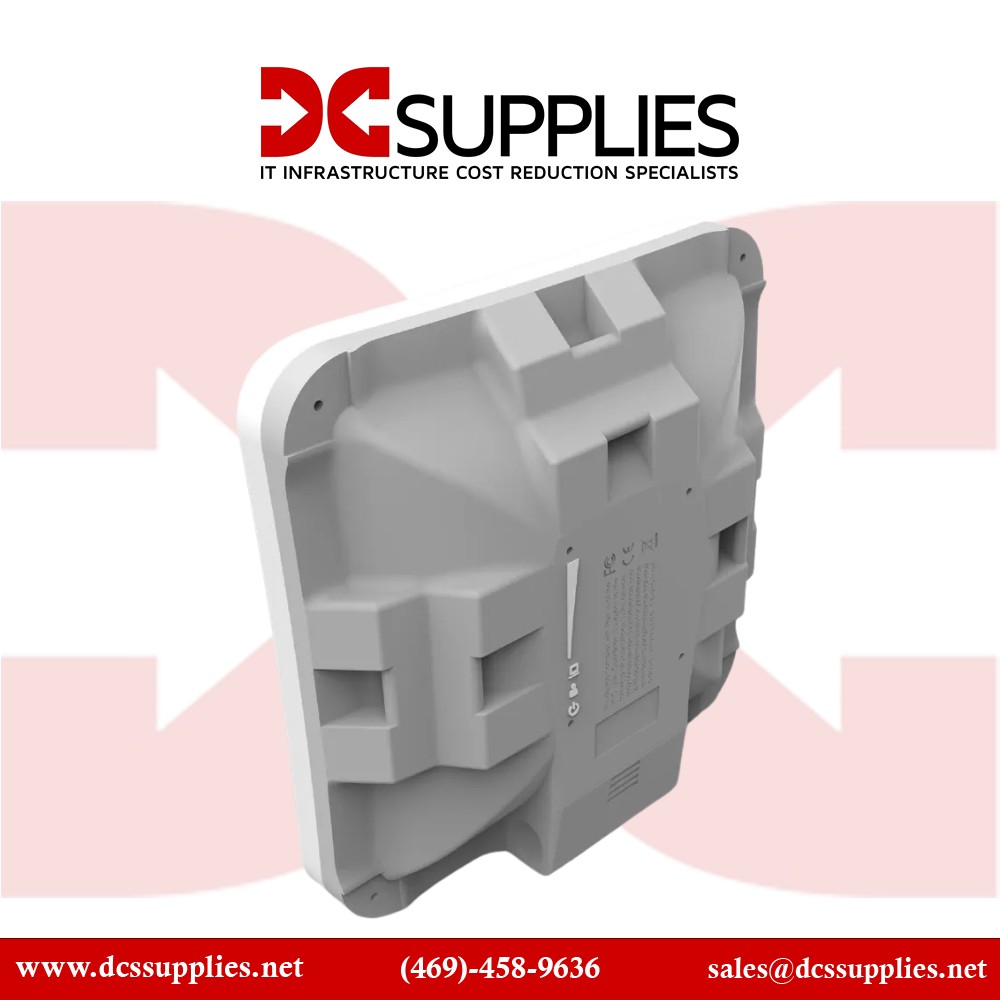

MikroTik RBSXTsq5nD-US SXTsq Lite5 outdoor wireless device

New

MikroTik RBSXTsq5nD-US SXTsq Lite5 outdoor wireless...

×




  • New

Detailed Specifications

MikroTik RBSXTsq5nD-US

SXTsq Lite5 5GHz Outdoor Wireless CPE with Integrated 16 dBi Antenna

The MikroTik RBSXTsq5nD-US (SXTsq Lite5) is a compact and efficient 5GHz outdoor wireless CPE solution designed for point-to-point or point-to-multipoint deployments. With a built-in high-gain antenna and RouterOS, it delivers reliable connectivity for WISPs, remote offices, or rural networks.

Features

Built for long-distance wireless links, the SXTsq Lite5 features a dual-chain 5GHz radio and an integrated 16 dBi directional antenna, offering focused and stable signal transmission. The lightweight enclosure includes easy pole-mounting hardware, making it an ideal fit for rooftops or towers in suburban and rural environments.

Advanced Options

Internally, the device is powered by a 650 MHz CPU, 64 MB RAM, and RouterOS with Level 3 license, enabling it to function as a wireless bridge or station. Designed for minimal power consumption and streamlined installation, it's a popular choice for WISPs and last-mile wireless deployments.

Product Key Features

    •  Integrated 16 dBi 5GHz directional antenna for focused signal transmission

    •  Supports 802.11a/n wireless for long-distance point-to-point links

    • US-licensed version with preconfigured frequency limits

    •  Runs RouterOS Level 3, ideal for CPE or wireless bridge mode

    •  Powered via passive PoE input, minimizing cable clutter

    •  Compact, weatherproof enclosure for outdoor mounting

Reliability & Performance

With its UV-stabilized and water-resistant housing, the SXTsq Lite5 is engineered for long-term outdoor use. The passive PoE input simplifies power and data with a single cable, while the directional antenna ensures a focused signal path, reducing interference and boosting performance for long-range wireless links.

Key Features :

    • 5GHz 802.11a/n wireless radio

    • Integrated 16 dBi directional antenna

    • 1 × 10/100 Mbps Ethernet port

    • Passive PoE input (6–30 V)

    • RouterOS Level 3 license included

    • 650 MHz CPU with 64 MB RAM

    • Outdoor-rated, compact plastic enclosure

    • Ideal for CPE and point-to-point wireless links

SpecificationDetails
Model Number RBSXTsq5nD-US (SXTsq Lite5)
Product Type Outdoor Wireless CPE
Wireless Frequency 5GHz (US-licensed)
Wireless Standards 802.11a/n
Wireless Chains 2 (dual-chain MIMO)
Antenna Gain 16 dBi directional antenna
CPU QCA9533, 650 MHz
RAM 64 MB DDR2
Storage 16 MB Flash
Ethernet Port 1 × 10/100 Mbps RJ-45
PoE Input Passive PoE (6–30 V)
Operating System RouterOS, License Level 3
Enclosure Outdoor UV-resistant plastic
Mounting Pole-mount kit included
Dimensions 129 × 129 × 34 mm
Weight ~295 g
